ICON Vehicle Dynamics Leveling Kit Suspension, Stage 3, 0 to 2.63 Inch Lift, Coil Over Shock Absorbers – K93083T
$4,083.30

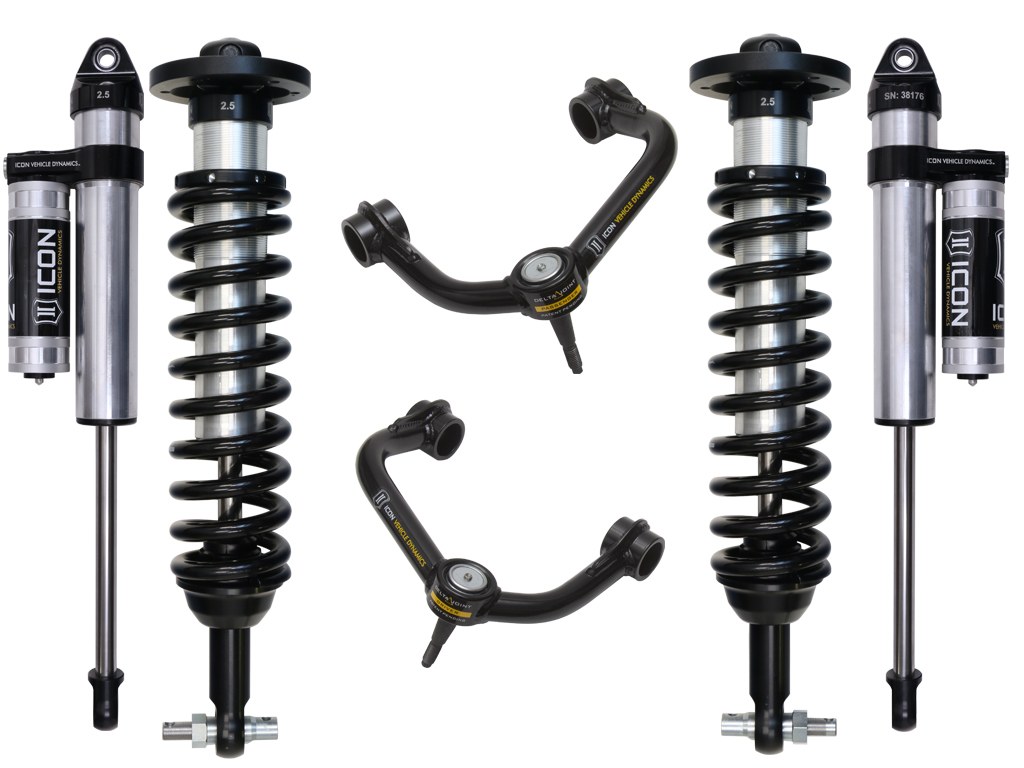

ICON Vehicle Dynamics Leveling Kit Suspension, Stage 3 – K93083T
Description
Leveling Kit Suspension; Stage 3; 0 To 2.63 Inch Lift; Coil Over Shock Absorbers; With Coil Over Mounts/ Front Tubular Upper Control Arms/ Rear Remote Reservoir Shock Absorbers/ Installation Hardware
Attributes:
- Lift Height: 0 To 2-5/8 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 33 x 11.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5
- Wheel Offset (MM): 6
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- Increased Wheel Travel And Ride Quality Over Stock With No Change In Towing Capacity
- 100 Percent Bolt-On System – No Drilling, Cutting, Or Welding Necessary For Install
- Vehicle Specific Tuned Front And Rear Shocks For Superior Damping And Vehicle Control
- Tubular Steel Upper Control Arms For Added Strength, Durability, And Improved Alignment Geometry
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Shock Body With 7/8 Inch Shaft
- High Strength Alloy CNC Machined Lower Bar Pin
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- Limited Lifetime Warranty
About Product:
ICON Vehicle Dynamics suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.63” allowing the use of larger, more aggressive wheel and tire combinations. Tubular Steel Delta Joint upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. ICON 2.5 Series Piggyback rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. 2.5 Inch reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 102 lbs |
|---|---|
| Dimensions | 39 × 12 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | K93083T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 216 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
