ICON Vehicle Dynamics Leveling Kit Suspension, Stage 3, 0 to 3-1/2 Inch Lift, Coil Over Shock Absorbers – K93203TS
$2,815.60
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 3 – K93203TS
Description

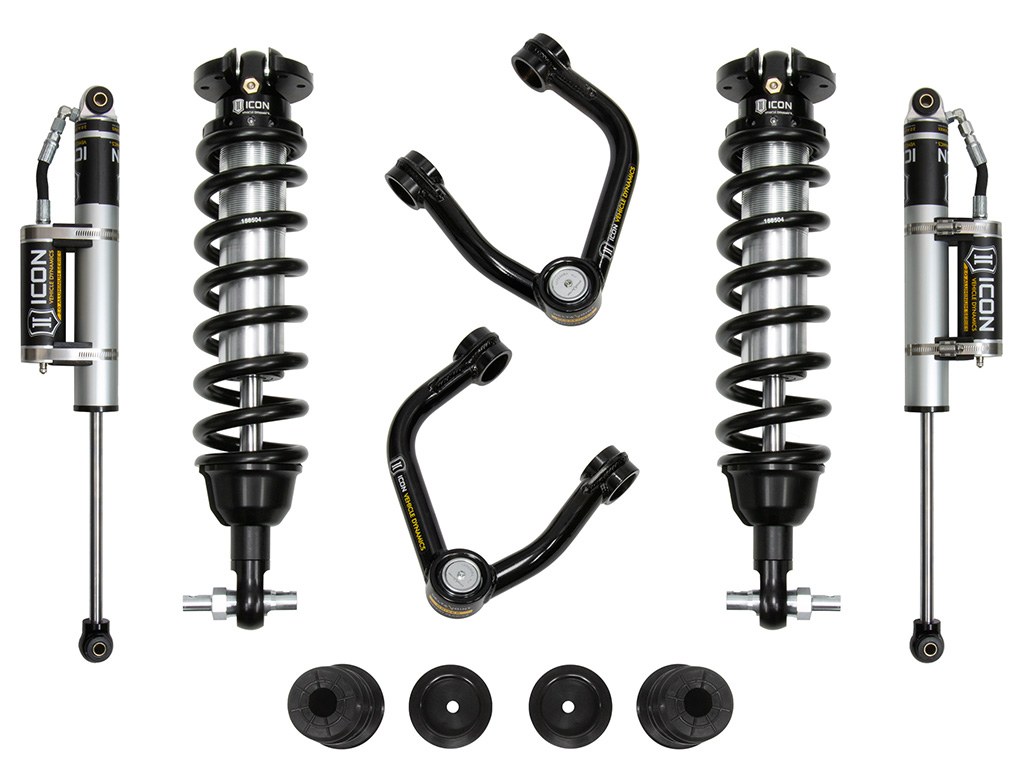

Leveling Kit Suspension; Stage 3; 0 To 3-1/2 Inch Lift; Coil Over Shock Absorbers; With Coil Over Mounts/ Front Upper Control Arms/ Rear Remote Reservoir Shock Absorbers/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 0 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 33 x 11.25
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75 To 6
- Wheel Offset (MM): 25
- Color: Black Components/ Silver Shock Absorbers
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- Height-Adjustable Coilovers Provide A Range Of 0 To 3-1/2 Inch Of Front Lift Height
- Increased Lift Height Allows For Fitment Of Larger And More Aggressive Tires
- 35 Percent Increase In Front Wheel Travel Over Stock
- ICON Shocks Feature Vehicle Specific Tune For Superior Performance And Ride Quality
- Corrosion Resistant Anodized Shock Body With 5/8 Inch Shaft
- FK Rod End Bearings Provide Extended Longevity And Minimal Deflection
- Shocks Are Fully Rebuildable And Revalvable
- ICON Upper Control Arms Allow For Additional Wheel Travel While Improving Suspension Geometry For Predictable Handling
- Patented Delta Joint Combines The Durability And Weather Resistance Of A Ball Joint With The Performance Characteristics Of A Uniball
- Limited 1 Year Warranty
About Product:
ICON Vehicle Dynamics 2020 to 2023 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 3 (Tubular) system features vehicle-specific tuned, extended travel 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0 to 3-1/2 Inch allowing the use of larger, more aggressive wheel and tire combinations. The provided ICON tubular upper control arm kit is designed to improve the overall performance with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the ICON Delta Joint allows for full bump and extended droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series monotube remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear while the provided foam bump stop kit increases rear end compliance.. The ICON Vehicle Dynamics 2020 to 2023 Ford Ranger Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 83 lbs |
|---|---|
| Dimensions | 40 × 12 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K93203TS |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 48 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
