ICON Vehicle Dynamics Leveling Kit Suspension, Stage 3, 1-3/4 to 3-3/4 Inch Lift, Coil Over Shock Absorber – K73073T
$3,260.61
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 3 – K73073T
Description
Leveling Kit Suspension; Stage 3; 1-3/4 To 3-3/4 Inch Lift; Coil Over Shock Absorber; With Coil Overs/ Front Tubular Upper Control Arms/ Rear Remote Reservoir Shock Absorbers/ Installation Hardware; Must Re-Use OE Coil Springs
Attributes:
- Lift Height: 1-3/4 To 3-3/4 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 18
- Wheel Backspacing (IN): 5
- Wheel Offset (MM): 0
- Color: Gray Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- 2.5 EXP Series Front Shocks With Internal Reservoirs Utilize Factory Coil And Coil Hardware
- Adjustable Front Ride Heights From 2.375 To 3-3/4 Inch Of Front Lift Over Stock With The Use Of Snap Ring
- One-Piece, Impact Extruded, Hard Anodized Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft With Inverted Shaft-Up Design
- Tubular UCAs For Added Strength, Durability, And Alignment Correction For Better Drivability
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- All ICON Shock Absorbers Are Fully Rebuildable And Re-Tunable
- 2.5 Aluminum Series Rear Piggyback Reservoir Shocks Provide Increased Performance And Balanced Tune With Coil Overs
- UCAs Feature ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
- Limited Lifetime Warranty
About Product:

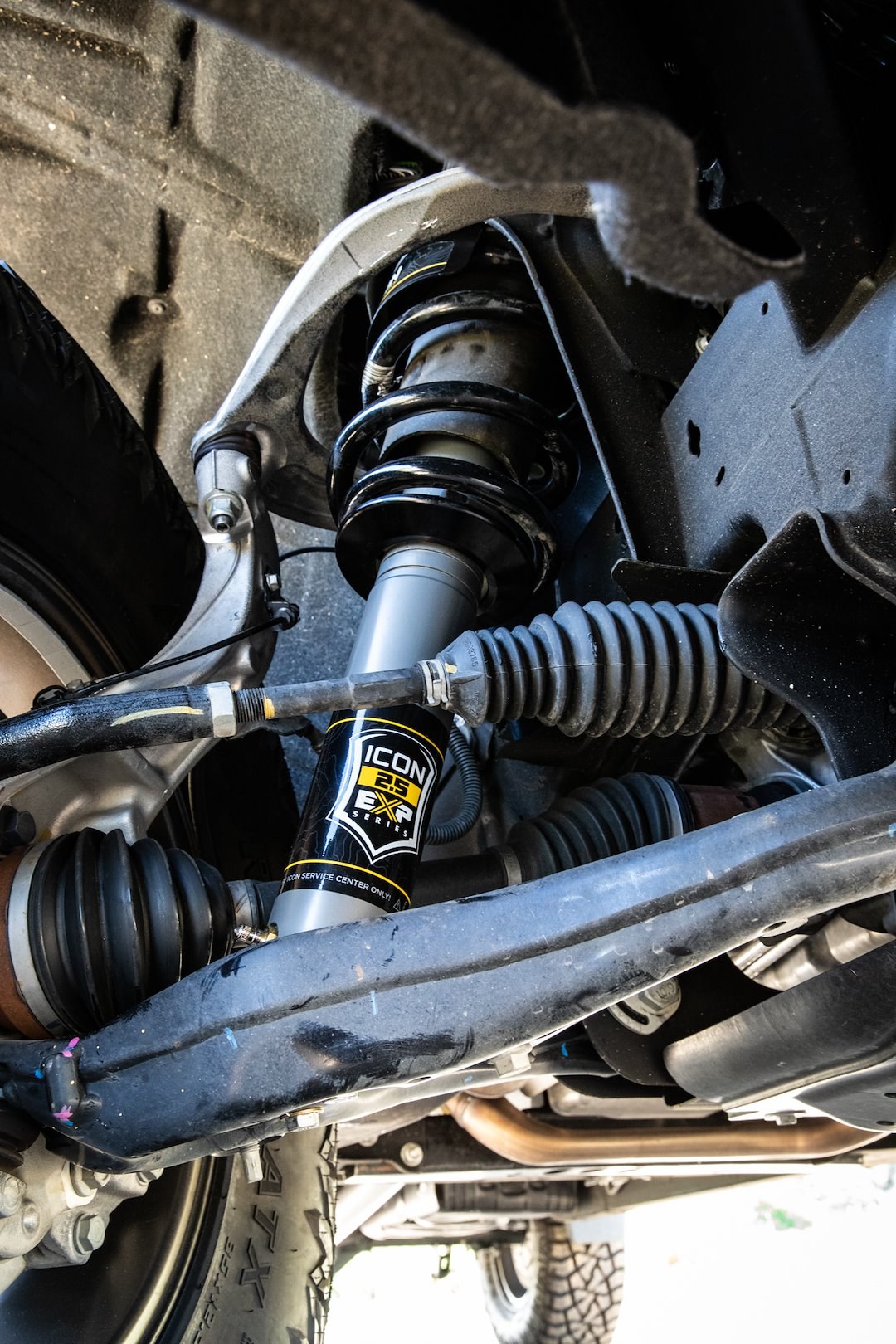

The ICON Vehicle Dynamics Stage 3 EXP complete suspension system for the pickup builds on ICON’s 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35 Inch tires. This system features the innovative new 2.5 EXP Series coil over shocks along with our proven 2.5 Aluminum Series shocks with piggyback reservoirs for the rear. This Stage 3 system features the EXP Series front shock absorbers that combine the performance of a fully rebuildable 2-1/2 Inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coil overs, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. The provided ICON tubular upper control arm kit is designed to improve the overall performance of the new pickup with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20 Percent of damping force to help better control hard bottom outs.
Additional information
| Weight | 81 lbs |
|---|---|
| Dimensions | 37 × 12 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K73073T |
