ICON Vehicle Dynamics Leveling Kit Suspension, Stage 3, 2-1/2 to 3 Inch Lift, Coil Over Shock Absorbers – K63163R
$5,720.50
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 3 – K63163R
Description

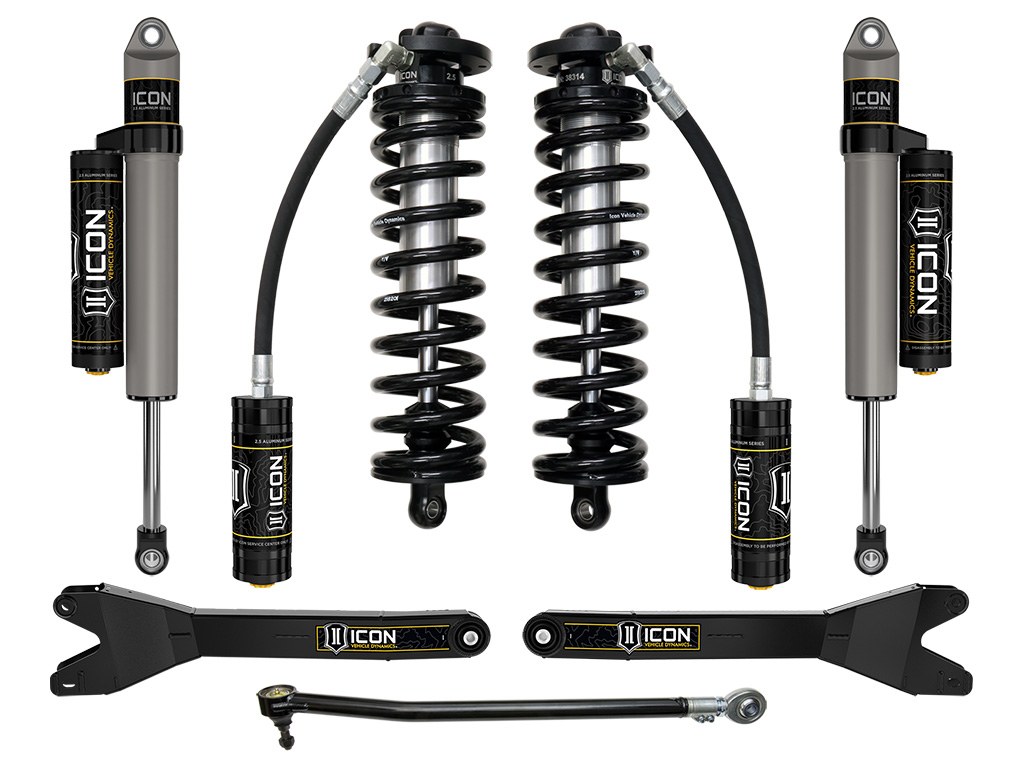

Leveling Kit Suspension; Stage 3; 2-1/2 To 3 Inch Lift; Coil Over Shock Absorbers; With Rear Remote Reservoir Shock Absorbers/ Radius Arm Kit/ Track Bar/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 2-1/2 To 3 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5 To 5.25
- Wheel Offset (MM): 6
- Color: Black Components/ Silver Shock Absorbers
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- 2.5 Aluminum Series Rear Shocks Feature One-Piece Impact Extruded Aluminum Cylinders For Excellent Corrosion Resistance And Consistent Finish
- Bolt-In System Fits In OE Coil Bucket Location
- Ride Height Adjustable Coilovers Provide 2-1/2 To 3 Inch Of Lift
- Decreased Body Roll And Improved On And Off-Road Ride Dynamics
- Vehicle-Specific Shock Valving Provides Unparalleled Ride Quality And Control
- Shocks Are Fully Rebuildable And Revalveable
- Coilover Conversion Allows For Addition Of Secondary Shock
- Corrosion Resistant CAD Plated Shock Bodies With 7/8 Inch Diameter Shaft
- Adjustable Track Bar Ensures Proper Axle Placement And Improves Handling
- Limited 1 Year Warranty
About Product:
This ICON Vehicle Dynamics 2-1/2 to 3 Inch coilover system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 3 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2-1/2 Inch Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line – meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. ICON’s Stage 3 System is comprised of ICON 2.5 Series remote reservoir coilovers with adjustable ride height, fabricated Radius arms, and ICON 2.5 Aluminum Series piggyback reservoir rear shocks. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37 Inch tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Additional information
| Weight | 205 lbs |
|---|---|
| Dimensions | 40 × 13 × 11 in |
| Brand | ICON |
| Manufacturer Part Number | K63163R |
