ICON Vehicle Dynamics Leveling Kit Suspension, Stage 4, 0 to 3-1/2 Inch Lift, Coil Over Remote Reservoir Shock Absorbers – K93204S
$5,292.44
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 4 – K93204S
Description

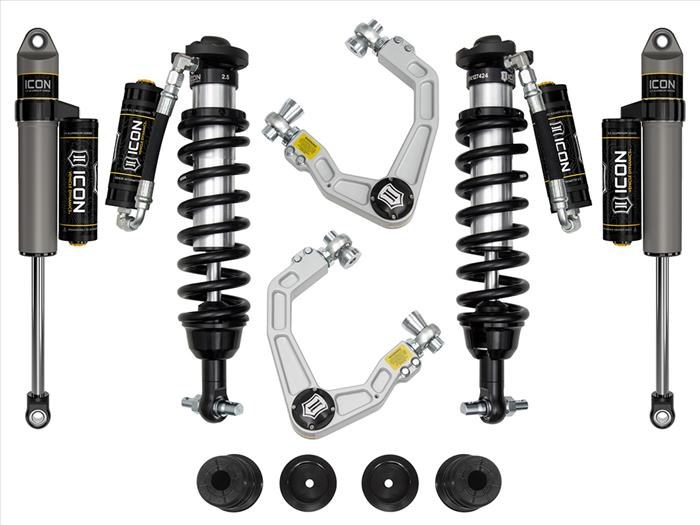

Leveling Kit Suspension; Stage 4; 0 To 3-1/2 Inch Lift; Coil Over Remote Reservoir Shock Absorbers; With Coil Over Mounts/ Front Aluminum Upper Control Arms/ Rear Remote Reservoir Shock Absorbers/ Bump Stops/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 0 To 3-1/2 Inch Lift
- Type: Remote Reservoir Coil Over Shock Absorber
- Maximum Tire Size: 33 x 11.25
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Black/ Gray
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- CNC Machined 6061 Billet Aluminum Upper Control Arms Allow For On-Vehicle Camber And Caster Adjustment
- Height-Adjustable Coilovers Provide A Range Of 0 To 3-1/2 Inch Of Front Lift Height
- Increased Lift Height Allows For Fitment Of Larger And More Aggressive Tires
- 35 Percent Increase In Front Wheel Travel Over Stock
- ICON Shocks Feature Vehicle Specific Tune For Superior Performance And Ride Quality
- Corrosion Resistant CAD Plated Shock Body With 7/8 Inch Shaft
- Corrosion Resistant Hard Anodized Shock Body With 7/8 Inch Shaft
- FK Rod End Bearings Provide Extended Longevity And Minimal Deflection
- Shocks Are Fully Rebuildable And Revalvable
- Limited Lifetime Warranty
About Product:
ICON Vehicle Dynamics 2020 to 2023 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 4 (Billet) system features vehicle-specific tuned, extended travel 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3-1/2 Inch allowing the use of larger, more aggressive wheel and tire combinations. The provided ICON billet aluminum upper control arm kit is designed to improve the overall suspension performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the ICON Delta Joint allows for full bump and extended droop travel of the front suspension while eliminating bind. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear while the provided foam bump stop kit increases rear end compliance.. The ICON Vehicle Dynamics 2020-2023 Ford Ranger Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 104 lbs |
|---|---|
| Dimensions | 39 × 15 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | K93204S |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 48 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
