ICON Vehicle Dynamics Leveling Kit Suspension, Stage 4, 1-1/4 to 3 Inch Lift, Coil Over Remote Reservoir Shock Absorbers – K53294T
$4,119.28
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 4 – K53294T
Description

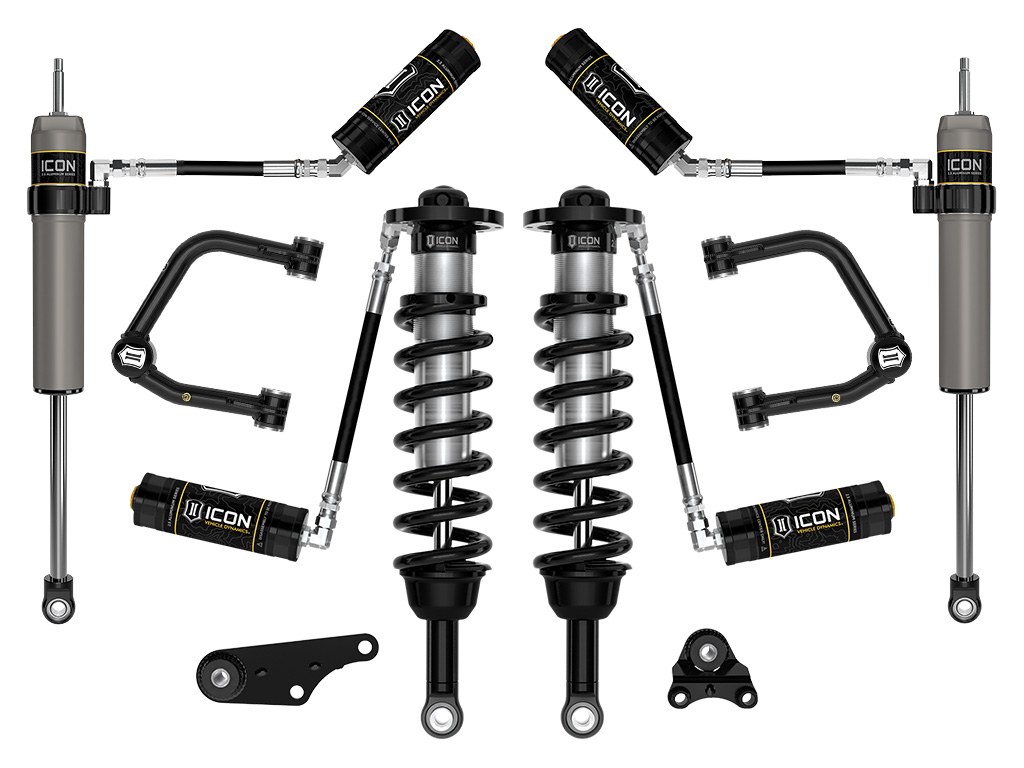

Leveling Kit Suspension; Stage 4; 1-1/4 To 3 Inch Lift; Coil Over Remote Reservoir Shock Absorbers; With Coil Over Mounts/ Rear Remote Reservoir Shock Absorbers/ Tubular Upper Control Arms/ Differential Drop Brackets/ Installation Hardware
Attributes:
- Lift Height: 1-1/4 To 3 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 33 x 11.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Black Components/ Gray Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:

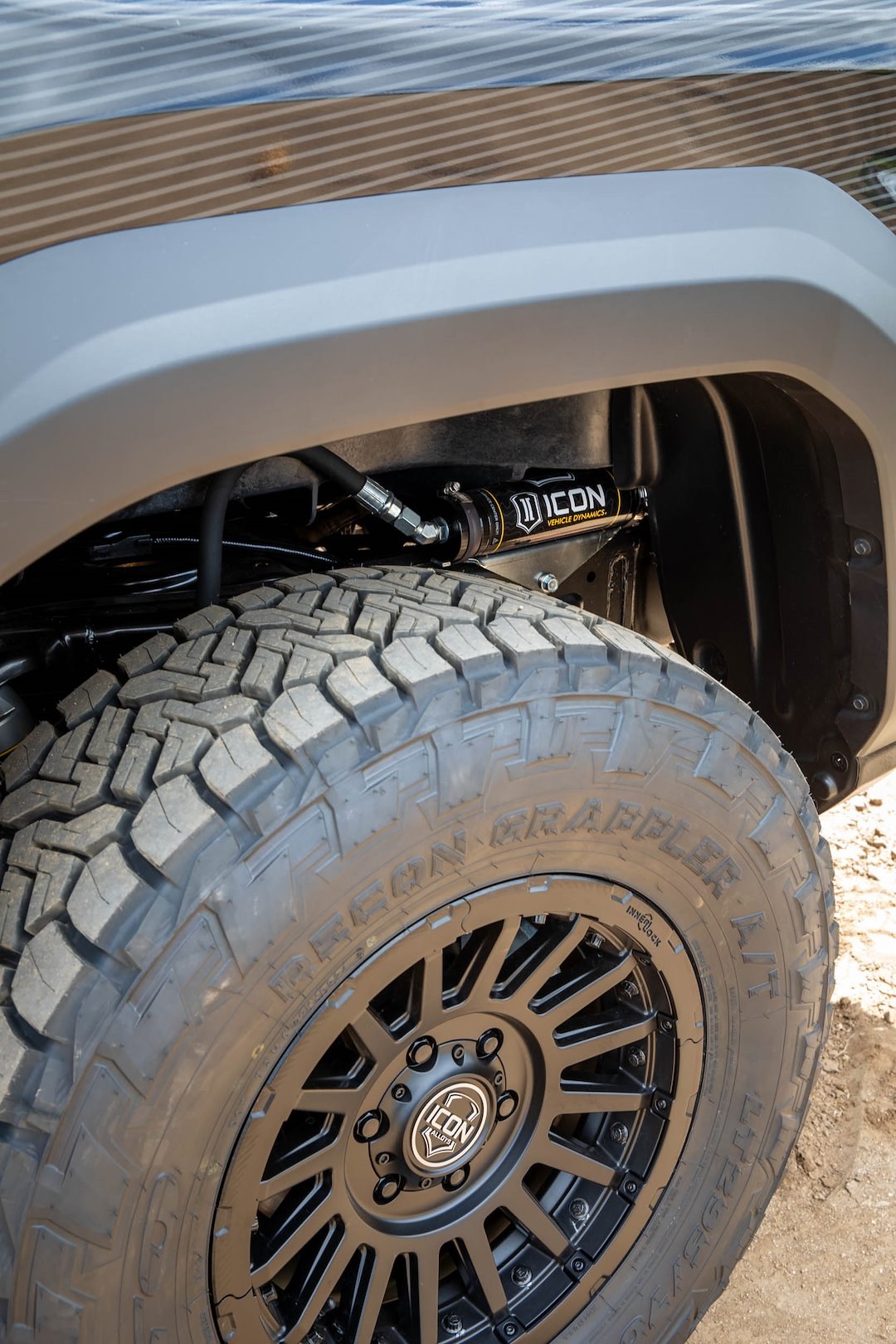

- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- Increased Wheel Travel And Improved Ride Quality Over Stock
- Front Differential Drop Provides Better Maximum Operating Angle For CV Joints
- Adjustable Coilovers Provide 1-1/4 To 3 Inch Front Lift Height Over Stock
- Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster And Camber Adjustment For Optimum Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degree Of Total Articulation
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts
- ICON Engineered Coil Springs
- Limited Lifetime Warranty
About Product:
ICON Vehicle Dynamics suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system features vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1-1/4 To 3 Inch of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The provided ICON billet aluminum upper control arm kit is designed to improve the overall performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamic Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 123 lbs |
|---|---|
| Dimensions | 39 × 15 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | K53294T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 12 vehicles.
