ICON Vehicle Dynamics Leveling Kit Suspension, Stage 4, 2-1/2 to 3 Inch Lift, Remote Reservoir Adjustable Coil Over Shock Absorber – K93164T
$4,468.59
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 4 – K93164T
Description

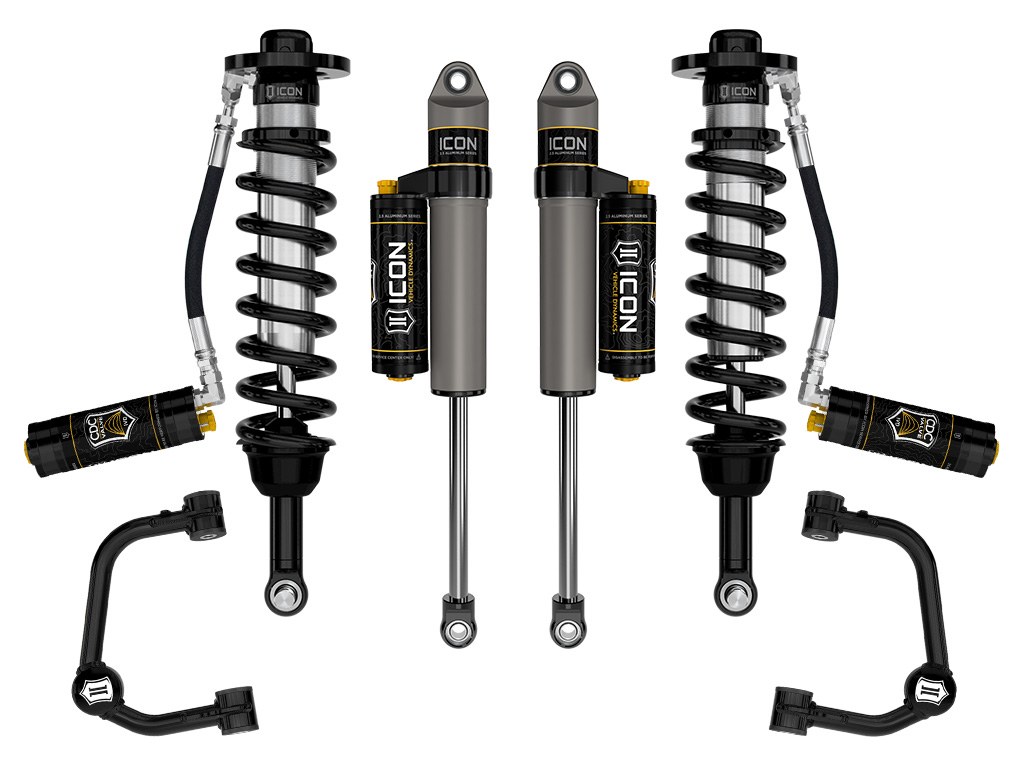

Leveling Kit Suspension; Stage 4; 2-1/2 To 3 Inch Lift; Remote Reservoir Adjustable Coil Over Shock Absorber; With Coil Over Mounts/ Front Tubular Upper Control Arms/ Rear Remote Reservoir Adjustable Shock Absorbers/ Installation Hardware
Attributes:
- Lift Height: 2-1/2 To 3 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 34 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5
- Wheel Offset (MM): 6
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- Adjustable Coilovers In Specific Length Offer 2-1/2 To 3 Inch Of Front Lift Height Over Stock
- 2.5 Series Front Coilovers With Remote Reservoirs For Improved Shock Cooling
- Tubular Upper Control Arms With Delta Joint Pro Ball Joints For Added Strength, Durability, And Alignment Specific Range
- 20 Percent Increase In Wheel Travel And Improved Ride Quality Over Stock With No Change In Towing Capacity
- Vehicle Specific Tuned Front And Rear Shocks For Superior Damping And Vehicle Control
- All Shock Absorbers Equipped With CDC Valves For 10 Settings Of Compression Damping Adjustment, From Soft To Hard
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- High Strength Alloy CNC Machined Lower Bar Pin
- Limited Lifetime Warranty
About Product:
ICON Vehicle Dynamics suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 4 system features vehicle-specific tuned 2-1/2 Inch coilover shocks in a specific length for a 20 Percent increase in front wheel travel over stock. These coilovers feature CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 2-1/2 To 3 Inch of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum Delta Joint PRO upper control arms not only add strength and durability, but help retain factory alignment spec range, offer caster/camber adjustment, and allow for the extra lift height this system provides. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and head dissipation, balancing the performance of the truck from front to rear. The features ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 111 lbs |
|---|---|
| Dimensions | 39 × 15 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | K93164T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 6 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
