ICON Vehicle Dynamics Leveling Kit Suspension, Stage 5, 1-1/4 to 3-1/4 Inch Lift, Remote Reservoir Coil Over Shock Absorber – K53215
$11,648.71
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 5 – K53215
Description

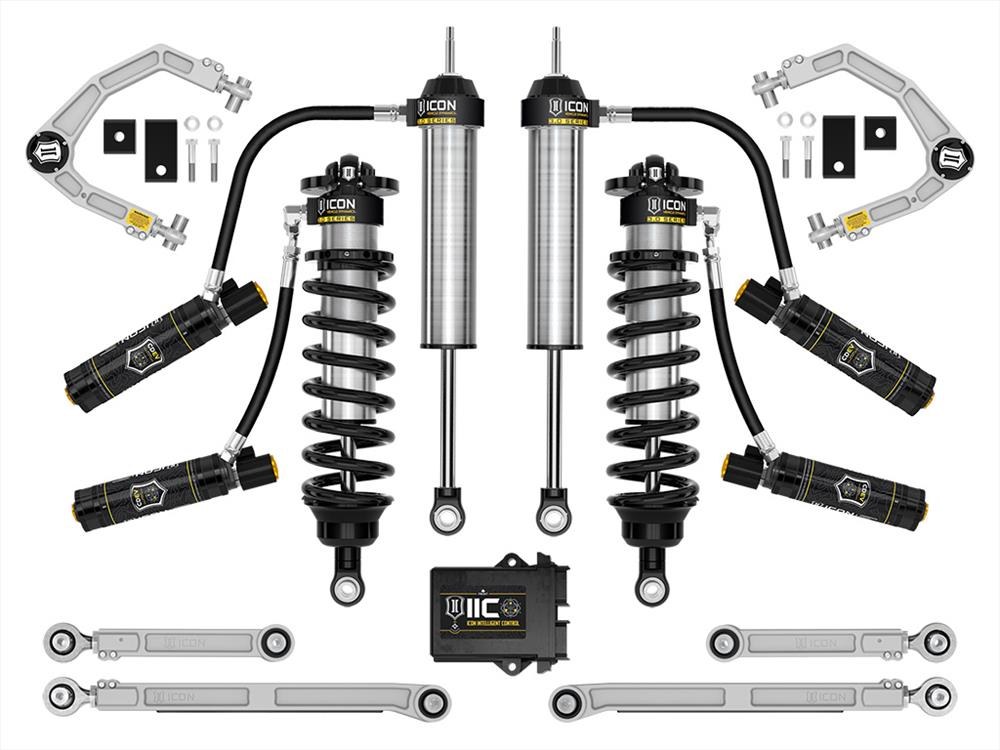

Leveling Kit Suspension; Stage 5; 1-1/4 To 3-1/4 Inch Lift; Remote Reservoir Coil Over Shock Absorber; With Front Upper Billet Control Arms/ Rear Upper And Lower Control Arms/ Coil Over Mounts/ Springs/ Rear Remote Reservoir Shock Absorbers/ Stabilizer Bar Drop/ Compression Damping Electronic Valve Computer/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 1-1/4 To 3-1/4 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster And Camber Adjustment For Optimum Drivability
- Vehicle Specific Design For 2022 To 2023 Toyota Tundra

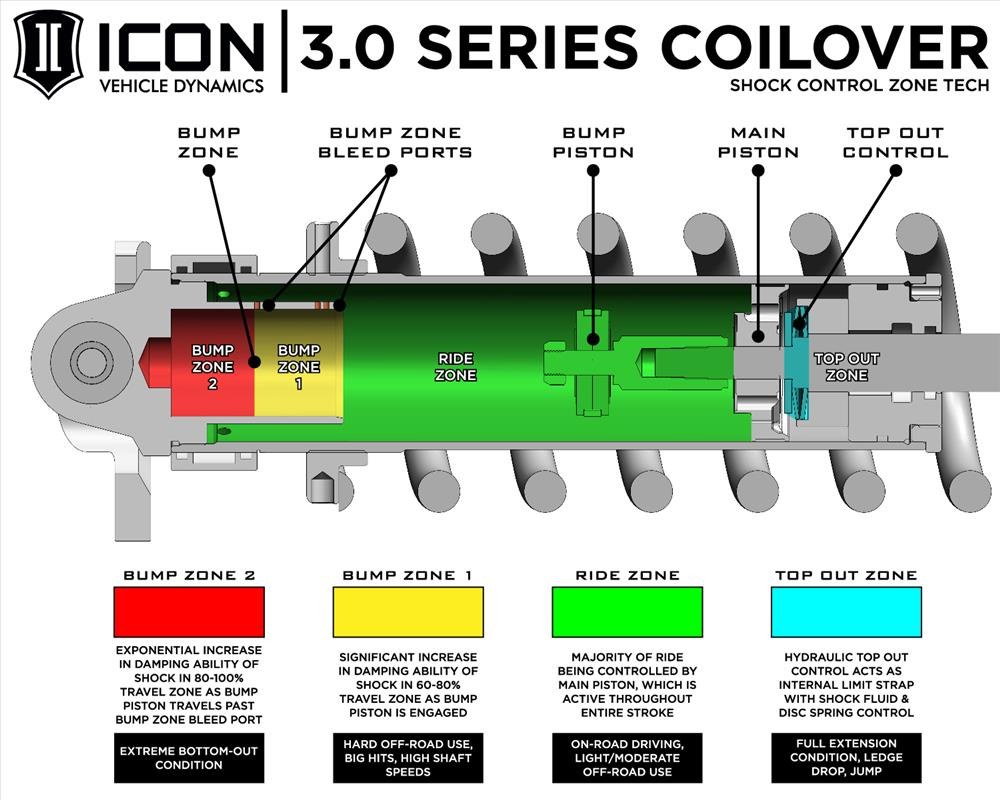

- 3.0 Series Front Coilovers With ICON’s Multi-Stage, Tunable Hydraulic “Bump Zone”
- Adjustable Front Ride Heights From 1-1/4 To 3-1/4 Of Front Lift Over Stock When Used With Provided Billet Aluminum UCAs
- ICON’s CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control
- ICON Intelligent Control Uses Onboard Sensors To Monitor G-Forces And Movement Of Vehicle Chassis Along With User Defined Settings To Actively Make Near Instantaneous Compression Damping Changes
- UCAs Feature The Patented Delta Joint Pro With 90 Degree Of Total Articulation
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- Billet Rear Upper And Lower Links Improve Rear End Articulation And Allow For On-Vehicle Pinion Angle Adjustment
- Limited Lifetime Warranty
About Product:
The ICON Vehicle Dynamics Stage 5 3.0 complete suspension system for the 2022 to 2023 Toyota Tundra builds upon the Stage 4 3.0 suspension system with the upgrade to 3.0 Series rear remote reservoir shocks with CDEV. To compliment the 3.0 Series rear remote reservoir shocks, 3.0 Series CDEV front coilovers are provided along with billet front upper control arms, a billet rear upper/lower link combo, and a front sway bar drop kit. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35 Inch tires. This Stage 5 system features the 2022 to 2023 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 1-1/4 to 3-1/4 Inch of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50 Percent more piston surface area in the ride zone of the shock’s travel, and 100 Percent in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40 Percent of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
Additional information
| Weight | 190 lbs |
|---|---|
| Dimensions | 33 × 15 × 10 in |
| Brand | ICON |
| Manufacturer Part Number | K53215 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 70 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
