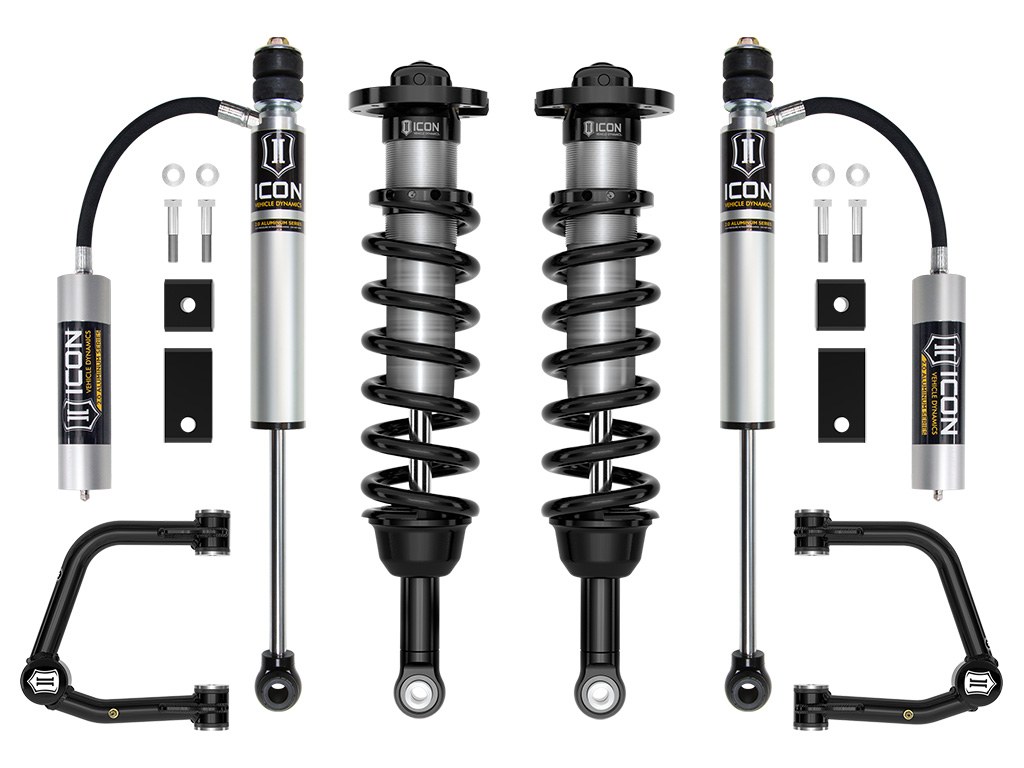

ICON Vehicle Dynamics Leveling Kit Suspension, Stage 5, 2 to 3-1/2 Inch Lift, Coil Over Shock Absorber – K53195T
$3,330.24
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 5 – K53195T
Description
Leveling Kit Suspension; Stage 5; 2 To 3-1/2 Inch Lift; Coil Over Shock Absorber; With Front Upper Tubular Control Arms/ Coil Over Mounts/ Springs/ Rear Remote Reservoir Shock Absorbers/ Stabilizer Bar Drop/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 2 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Silver/ Black
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- 2.5 Series Front Coilovers With Internal Reservoirs For Superior Damping And Vehicle Control
- Adjustable Front Ride Heights From 2 To 3-1/2 Inch Of Front Lift Over Stock When Used With Provided Tubular UCAs
- Tubular UCAs For Added Strength, Durability And Alignment Correction For Better Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degree Of Total Articulation
- Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- 2.0 Aluminum Series Rear Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All Icon Shock Absorbers Are Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On System: No Drilling, Cutting Or Welding Necessary For Install
- Limited Lifetime Warranty
About Product:
The ICON Vehicle Dynamics Stage 5 complete suspension system for the vehicle builds upon the Stage 4 system with the upgrade of the 2.0 Aluminum Series rear shocks to remote reservoir versions. This system offers improved on- and off-road performance, with greater rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35 Inch tires. To compliment the 2.0 remote reservoir rear shocks, a 2.5 Series internal reservoir front coilover shock and tubular front upper control arm combo is included along with a front sway bar drop kit. This Stage 5 system features the vehicle VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 2 to 3-1/2 Inch of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5″ shock body and increased piston area over stock components yield the maximum travel possible (up to 40 Percent increase over stock) along with superior ride quality and suspension performance both on- and off-road. The provided ICON tubular upper control arm kit is designed to improve the overall performance of the new vehicle with corrected front-end geometry, built in additional caster and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The provided sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
Additional information
| Weight | 93 lbs |
|---|---|
| Dimensions | 40 × 13 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K53195T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 70 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
