ICON Vehicle Dynamics Lift Kit Suspension, 2 to 3 Inch Front Lift, 1-1/4 to 2-1/4 Inch Rear Lift – K40014T
$4,882.09
ICON Vehicle Dynamics Lift Kit Suspension, 2 to 3 Inch Front Lift – K40014T
Description

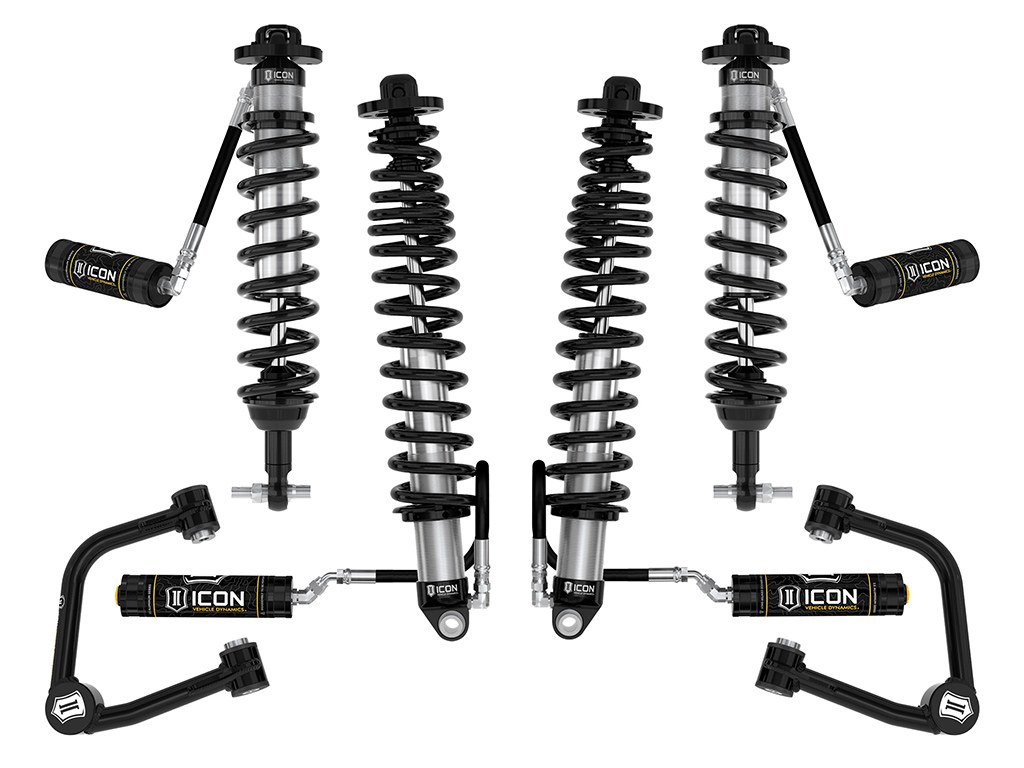

Lift Kit Suspension; 2 To 3 Inch Front Lift; 1-1/4 To 2-1/4 Inch Rear Lift; With Front And Rear Remote Reservoir Coil Over Shock Absorbers In Kit; Black Components; With Front Billet Upper Control Arms/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 2 To 3 Inch
- Rear Lift Amount (IN): 1-1/4 To 2-1/4 Inch
- Front Lift Type: Control Arms
- Rear Lift Type: Control Arms
- Maximum Tire Size: 35 x 12.50
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black
Features & Benefits:
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Diameter Shafts
- Improved Suspension Performance And Ride Quality Over Stock
- Vehicle Specific Tuned Internal Reservoir Front And Rear Shocks For Superior Damping And Vehicle Control
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- ICON Engineered Coil Springs Featuring A Unique Triple Rate Rear Coil Design
- High Strength Alloy CNC Machined Lower Bar Pins
- Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster/Camber Adjustment For Optimum Drivability
- 100 Percent Bolt-On System: No Drilling, Cutting, Or Welding Necessary For Install
- Limited Lifetime Warranty
About Product:

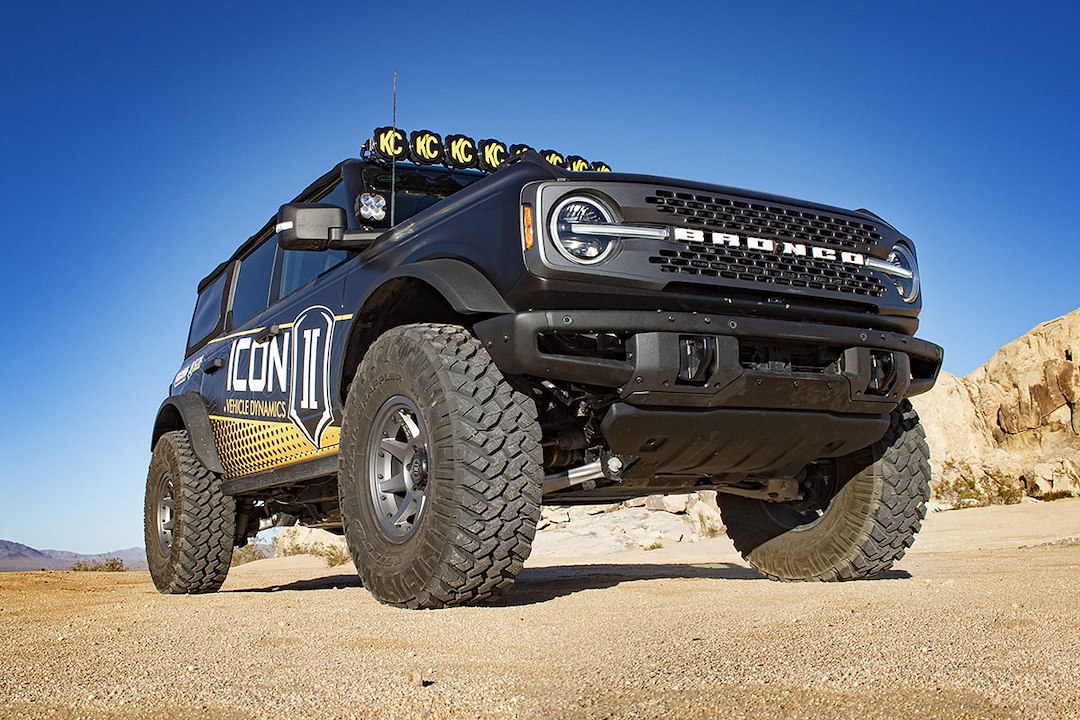

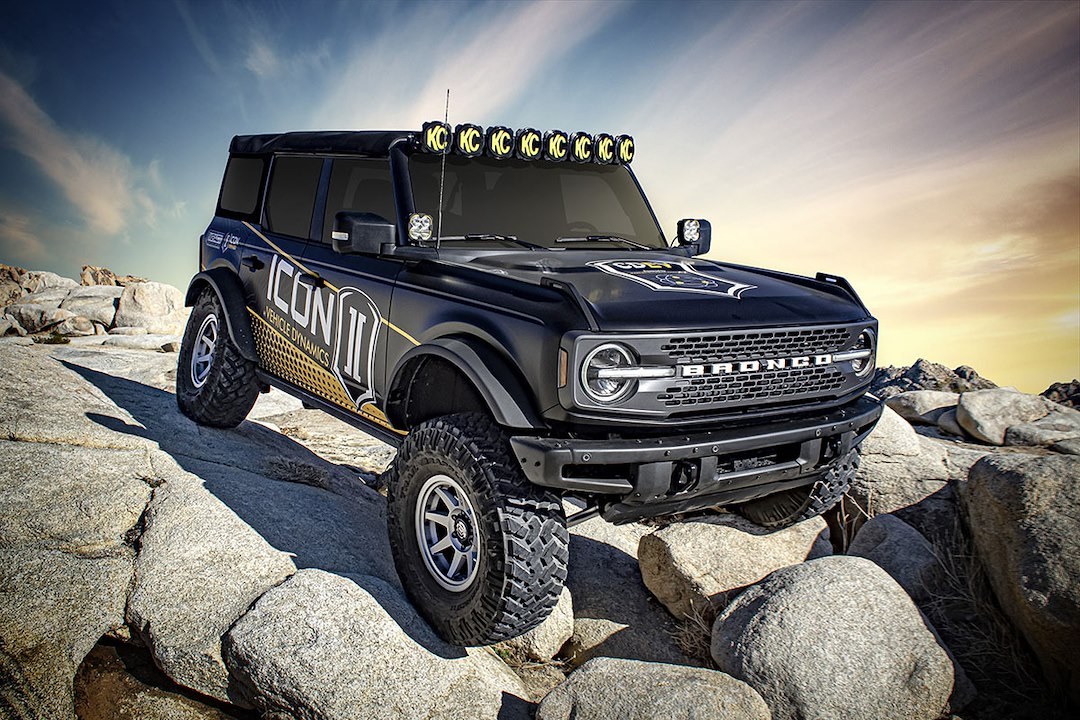

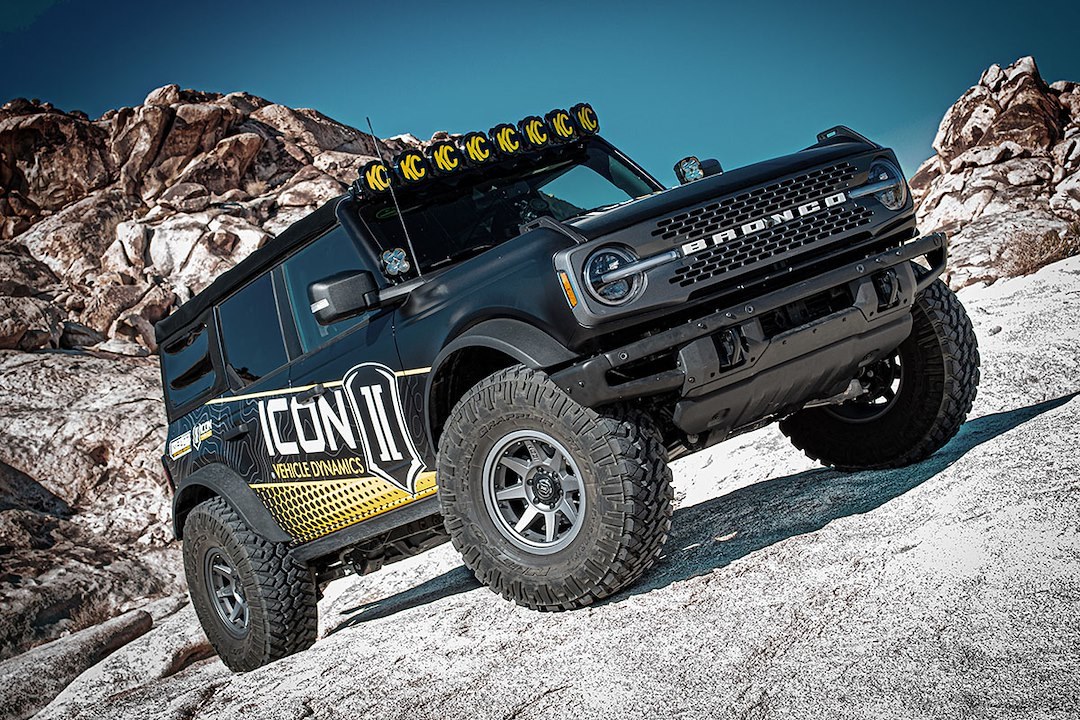

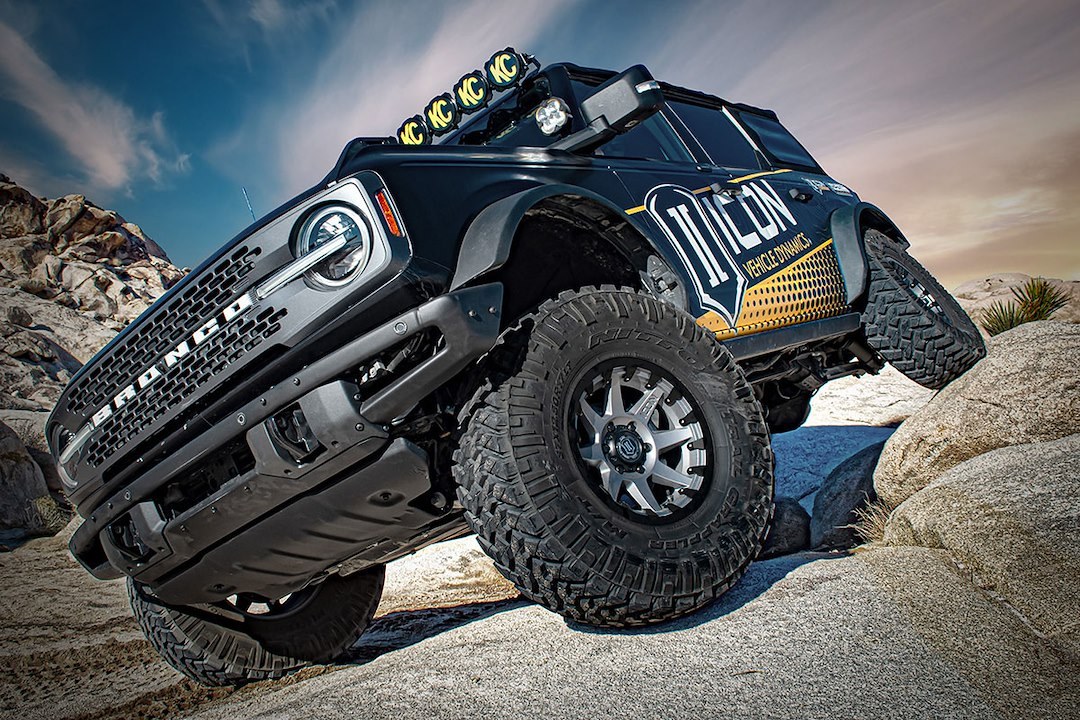

The ICON Vehicle Dynamics Stage 4 Suspension System for the 2021-UP Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDCV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2 to 3 Inch of front lift and 1-1/4 to 2-1/4 Inch of rear lift over stock 4-door Broncos equipped with the Sasquatch Package. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. Stage 4 also features ICON’s exclusive Compression Damping Control Valves for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 4 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90 Degree freedom of movement. ICON tubular rear lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation and ride quality. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. This suspension system is designed to provide up to 11-1/2 Inch of front suspension travel and 14 Inch of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37 Inch and larger tires if using the optional up-travel limiters (sold separately).
Additional information
| Weight | 107 lbs |
|---|---|
| Dimensions | 37 × 13 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K40014T |
