ICON Vehicle Dynamics Lift Kit Suspension, Stage 10, 1-1/4 to 3 Inch Front Lift, 1/2 Inch Rear Lift – K53300TX
$7,389.64
ICON Vehicle Dynamics Lift Kit Suspension, Stage 10 – K53300TX
Description

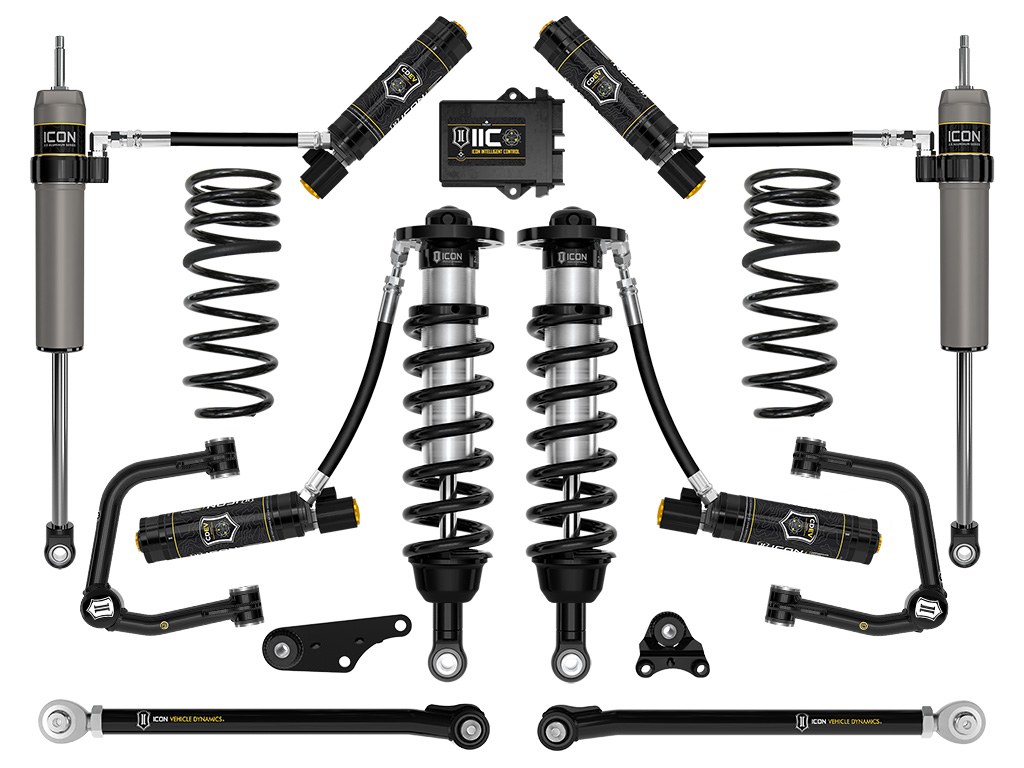

Lift Kit Suspension; Stage 10; 1-1/4 To 3 Inch Front Lift; 1/2 Inch Rear Lift; With Front Coil Over Remote Reservoir Adjustable Valving Shock Absorbers And Rear Remote Reservoir Adjustable Valving Shock Absorbers In Kit; Black/ Silver Components; With Coil Over Mounts/ Rear Coil Springs/ Tubular Upper Control Arms/ Rear Lower Tubular Control Arms/ Differential Drop Brackets/ Valving Adjustment Computer/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 1-1/4 To 3 Inch
- Rear Lift Amount (IN): 1/2 Inch
- Maximum Tire Size: 33 x 11.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Coil Spring
- Shock Type: Hydraulic And Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 25
- Shocks: With Front Coil Over Remote Reservoir Shock Absorbers/ Rear Remote Reservoir Shock Absorbers
- Color: Black Components/ Silver Shocks
Features & Benefits:
- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- Increased Wheel Travel And Improved Ride Quality Over Stock
- ICON’s CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control

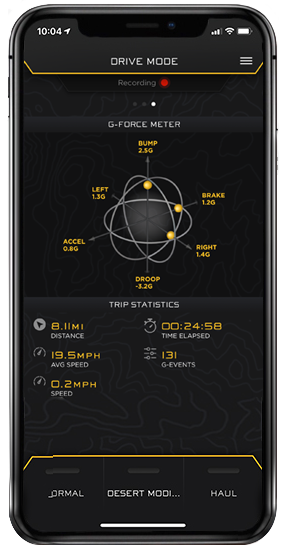

- ICON Intelligent Control Uses Onboard Sensors To Monitor G-Forces And Movement Of Vehicle Chassis Along With User Defined Settings To Actively Make Near Instantaneous Compression Damping Changes
- Front Differential Drop Provides Better Maximum Operating Angle For CV Joints And Maximizes Available Wheel Travel On 4WD Models
- Tubular UCAs For Added Strength, Durability, And Alignment Correction For Better Drivability
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts
- Tubular Rear Lower Links Improve Rear End Articulation And Allow For Pinion Angle Adjustment
- Limited 1 Year Warranty
About Product:

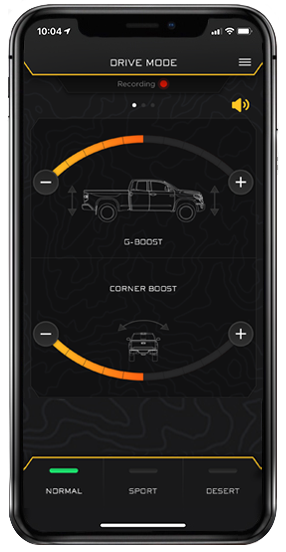

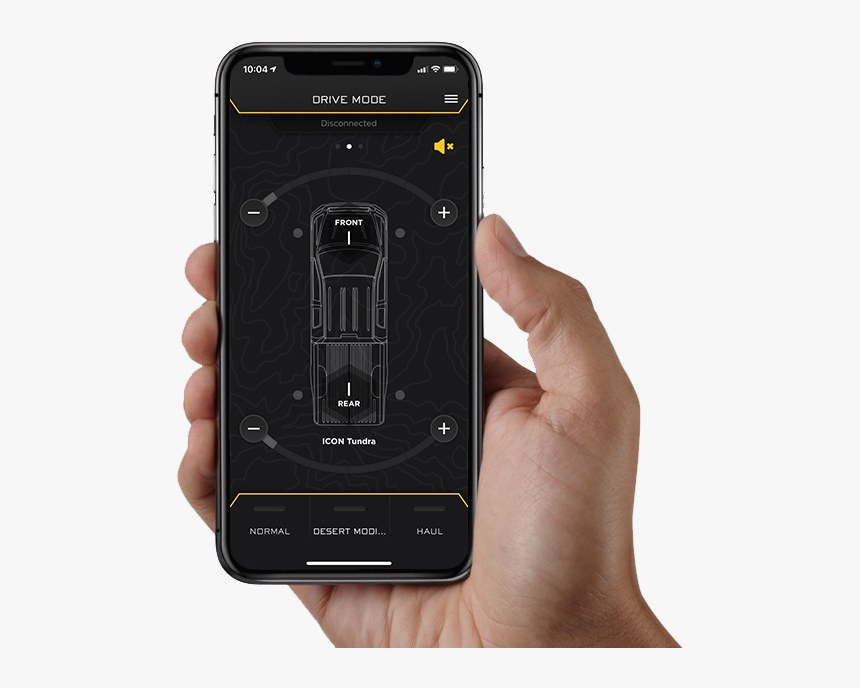

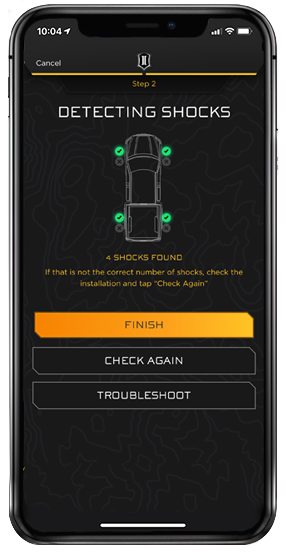

ICON Vehicle Dynamics suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 10 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON engineered coil springs for superior vehicle feel through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1-1/4 to 3 inch of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON tubular upper control arm kit is designed to improve the overall performance of the vehicle with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. Stage 10 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 195 lbs |
|---|---|
| Dimensions | 39 × 15 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | K53300TX |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 12 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
