ICON Vehicle Dynamics Lift Kit Suspension, Stage 2, 0 to 2 Inch Front Lift, 1-1/2 Inch Rear Lift – K53221
$1,791.43
ICON Vehicle Dynamics Lift Kit Suspension, Stage 2 – K53221
Description

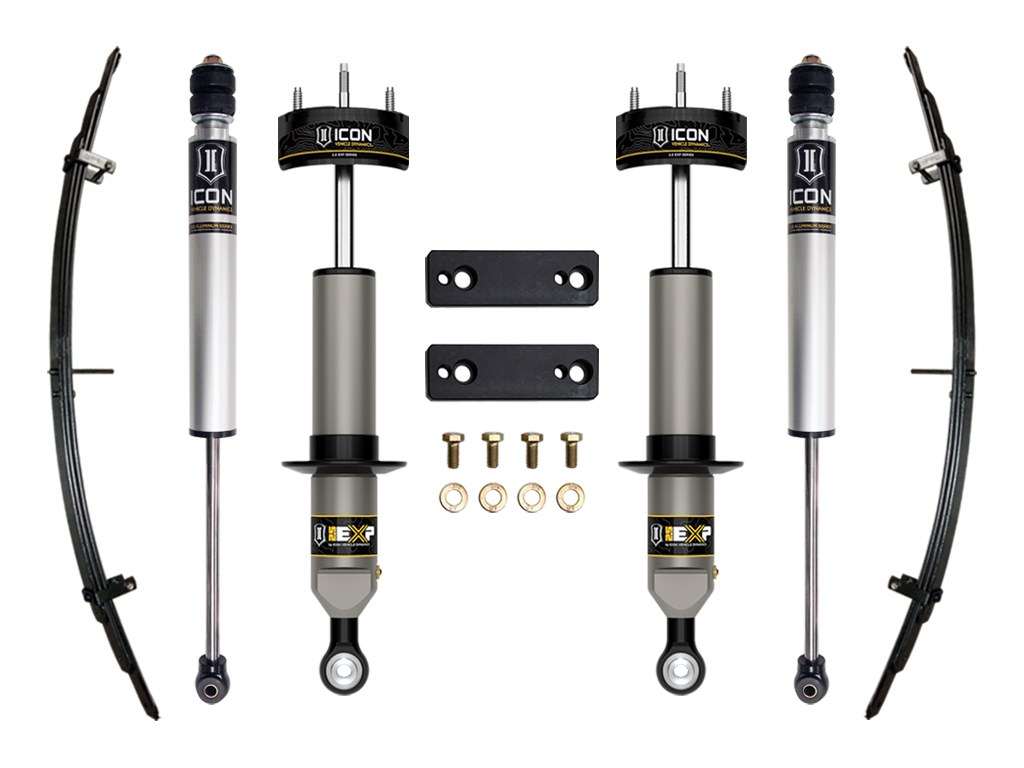

Lift Kit Suspension; Stage 2; 0 To 2 Inch Front Lift; 1-1/2 Inch Rear Lift; With Front Coil Over Shock Absorbers And Rear Shock Absorbers In Kit; Black Components/ Gray Shock Absorbers; With Rear Add-A-Leaf Springs/ Stabilizer Bar Drop/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 0 To 2 Inch
- Rear Lift Amount (IN): 1-1/2 Inch
- Front Lift Type: Coil Over Shock Absorbers
- Rear Lift Type: Add-A-Leaf
- Maximum Tire Size: 33 x 11.50
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75 To 5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Gray Shock Absorbers
Features & Benefits:
- 2.5 EXP Series Front Shocks With Internal Reservoirs Utilize Factory Coil And Coil Hardware
- Adjustable Front Ride Heights From 0 To 2 Inch Of Front Lift Over Stock With The Use Of Snap Ring
- Sway Bar Relocation Brackets Reduce Ensure Sway Bar Clearance From EXP Coilovers
- Allows For Full Wheel Travel Without Overstressing OE Components
- Rear Add-A-Leaf Softens Spring Rate For Improved Ride Quality While Providing 1-1/2 Inch Of Rear Lift
- 2.0 Aluminum Series Rear Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All Icon Shock Absorbers Are Fully Rebuildable And Re-Tunable
- Limited Lifetime Warranty
About Product:
The ICON Vehicle Dynamics Stage 2 EXP suspension system for the vehicle provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33 Inch tires. This system features the innovative new 2.5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf and our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear. This Stage 2 system features the vehicle EXP Series front shock absorbers that combine the performance of a fully rebuildable 2-1/2 Inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tacoma’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers providing 0 to 2 Inch of suspension lift, custom-tuned performance and maximum travel all in an economical package. The provided sway bar relocation brackets help minimize sway bar link bind through the suspension travel range and offer’s sway bar clearance from the EXP coilovers. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components. The rear leaf spring Add-a-Leaf kit improves ride quality by softening the rear spring rate compared to stock. This 3-leaf spring installs in place of the OE overload leaf and eliminates the aggressive ramp up in spring rate provided by the OE overload. This equates to improved ride quality and suspension performance, on and off-road, while also lifting the rear of the truck 1-1/2 Inch over stock. Rounding out the Stage 2 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the vehicle. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and excellent overall driving experience.
Additional information
| Weight | 68 lbs |
|---|---|
| Dimensions | 46 × 13 × 13 in |
| Brand | ICON |
| Manufacturer Part Number | K53221 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 157 vehicles.
