ICON Vehicle Dynamics Lift Kit Suspension, Stage 3, 2 to 3 Inch Front Lift, 1-1/4 to 2-1/4 Inch Rear Lift – K40013TX
$4,273.40
ICON Vehicle Dynamics Lift Kit Suspension, Stage 3 – K40013TX
Description
Lift Kit Suspension; Stage 3; 2 To 3 Inch Front Lift; 1-1/4 To 2-1/4 Inch Rear Lift; With Front And Rear Coil Over Shock Absorbers In Kit; Black Components; With Front Tubular Upper Control Arms/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 2 To 3 Inch
- Rear Lift Amount (IN): 1-1/4 To 2-1/4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Control Arms
- Rear Lift Type: Control Arms
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: Front And Rear Coil Over Shock Absorbers
- Color: Black Components
Features & Benefits:
- Improved Suspension Performance And Ride Quality Over Stock
- Up To 11-1/2 Inch Front / 14 Inch Rear Wheel Travel With 35 Inch Tire Fitment
- Vehicle Specific Tuned Internal Reservoir Front And Rear Shocks For Superior Damping And Vehicle Control
- Adjustable Coilovers Yield Up To 3 To 4 Inch Of Front Lift Height And 2 To 3 Inch Of Rear Lift Height Over Stock 4-Door Non-Sasquatch Broncos
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts

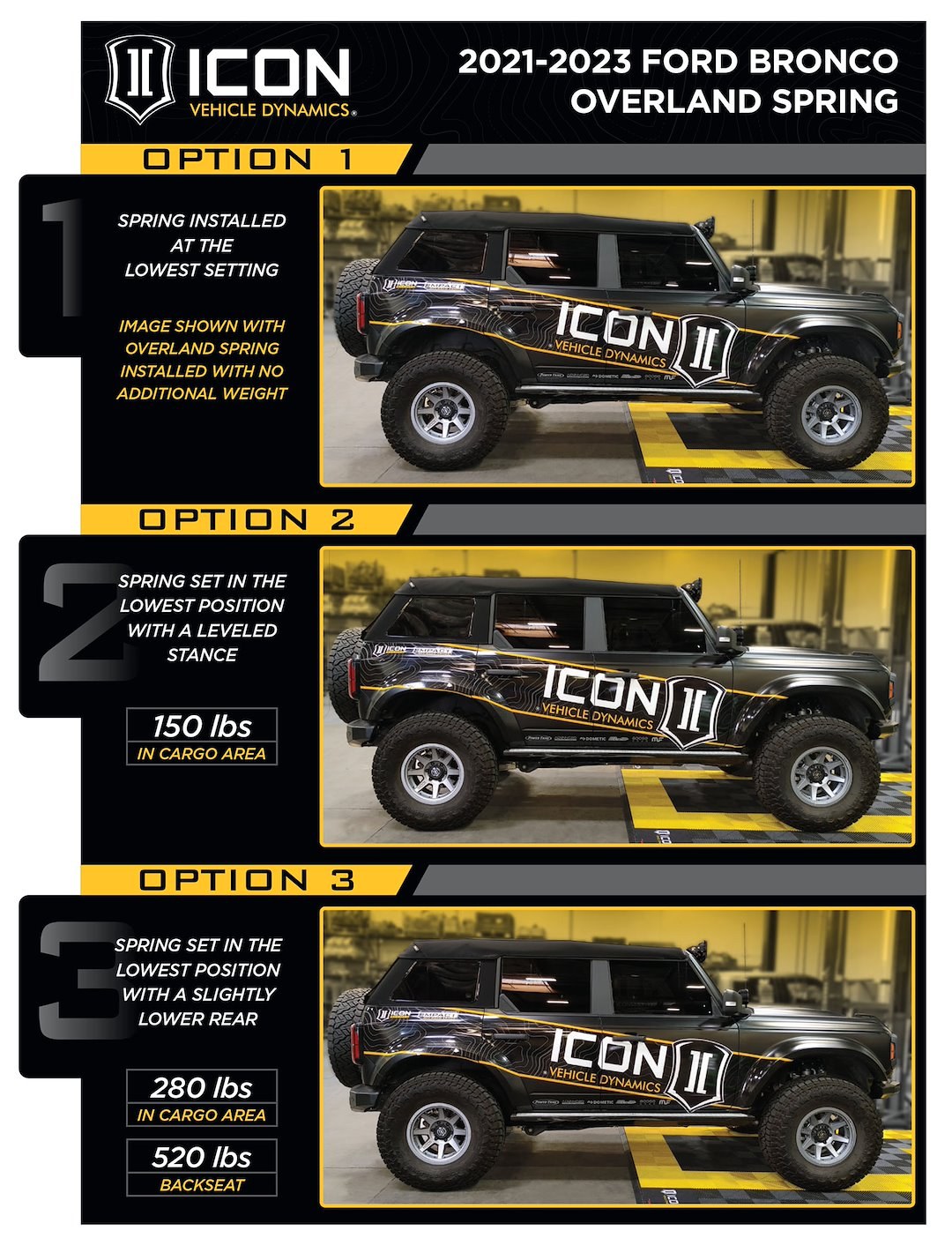

- ICON Engineered Coil Springs Featuring A Unique Dual Rate Rear Coil Design With Increased Spring Rates For Heavier Equipped Broncos
- High Strength Alloy CNC Machined Lower Bar Pins
- Limited Lifetime Warranty
About Product:

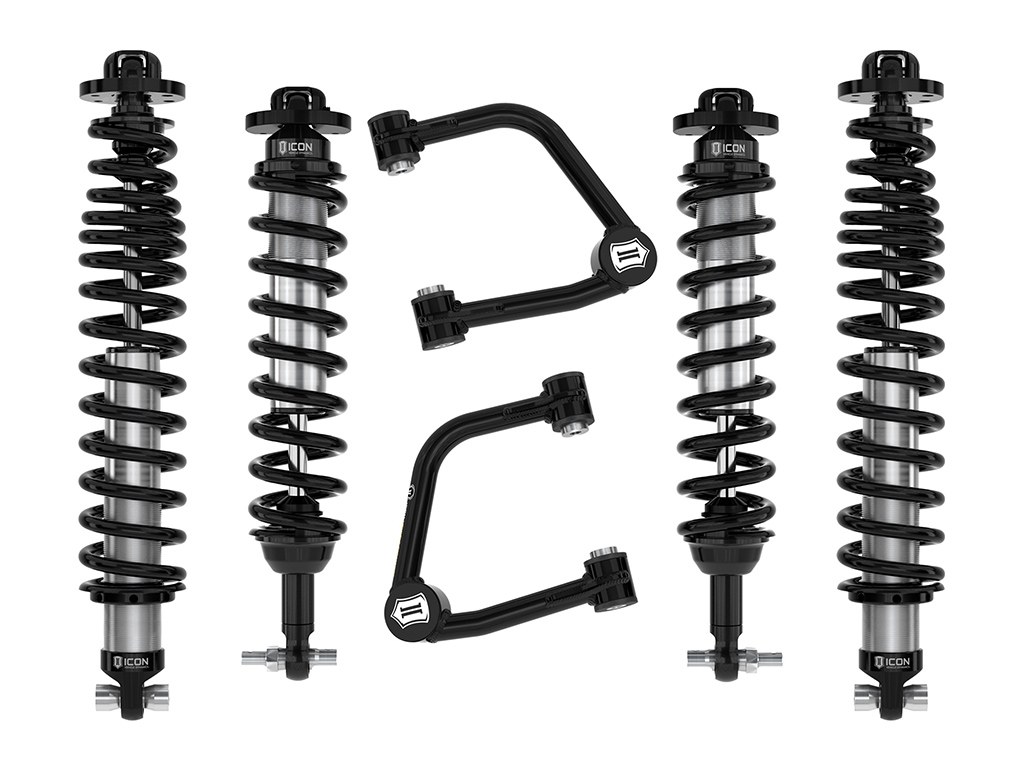

The ICON Vehicle Dynamics Stage 3 Suspension System features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-1/2 To 3 Inch of front lift and 1-1/4 To 2-1/4 Inch of rear lift over stock 4-door Broncos with the Sasquatch Package. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90 Degree freedom of movement. The rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This suspension system is designed to provide up to 11-1/2 Inch of front suspension travel and 14 Inch of rear suspension travel when used with 35X12.50 tires.
Additional information
| Weight | 137 lbs |
|---|---|
| Dimensions | 38 × 13 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K40013TX |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 34 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
