ICON Vehicle Dynamics Lift Kit Suspension, Stage 3, 6 Inch Front Lift, 6 Inch Rear Lift – K53273
$7,026.38
ICON Vehicle Dynamics Lift Kit Suspension, Stage 3, 6 Inch Front Lift – K53273
Description

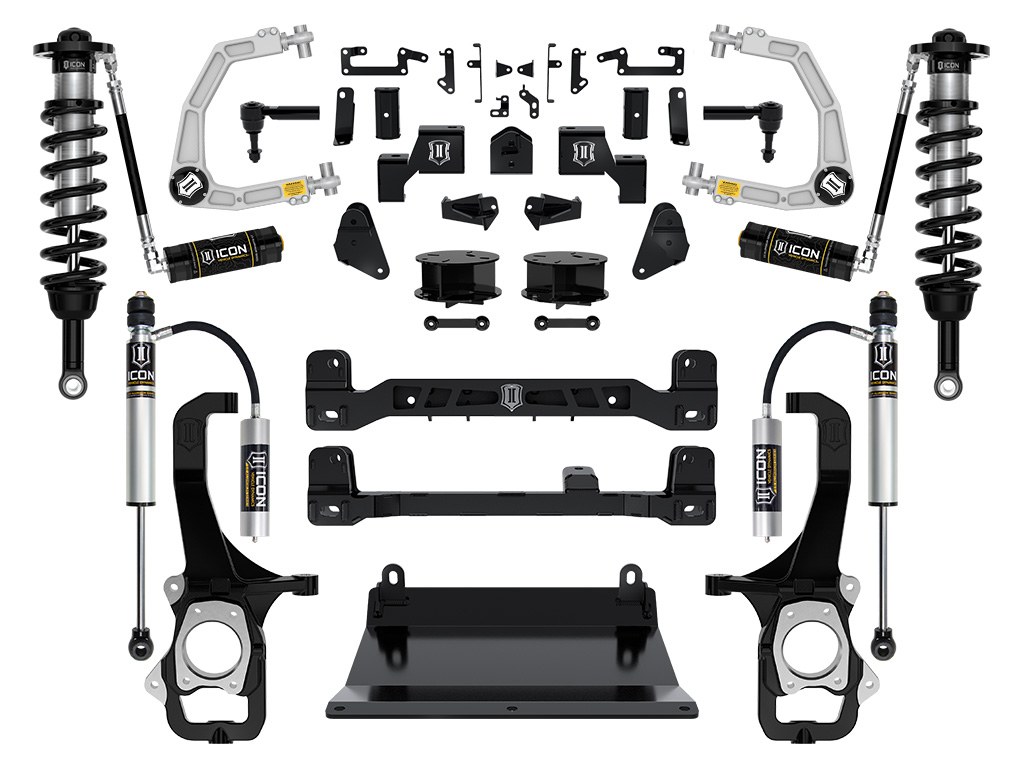

Lift Kit Suspension; Stage 3; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Coil Over Remote Reservoir Shock Absorbers And Rear Remote Reservoir Shock Absorbers In Kit; Black Components/ Gray Shock Absorbers; With Front Billet Upper Control Arms/ Rear Coil Spring Spacers/ Cross Members/ Steering Knuckles/ Skid Plate/ Stabilizer Drop Brackets/ Bump Stop Brackets/ Tie-Rod Ends/ Stabilizer Bar Links/ Rear Track Bar Bracket/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Control Arms
- Rear Lift Type: Coil Spring Spacer
- Wheel Backspacing (IN): 5.625
- Minimum Wheel Diameter: 20
- Wheel Offset (MM): 16
- Shocks: With Shocks In Kit
- Color: Black Components/ Gray Shock Absorbers
Features & Benefits:
- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- System Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- Optimized Design To Fit 37 Inch Tires With Full Articulation
- Maintains Factory Track Width
- Optimized Suspension Geometry Nearly Eliminates The Bump Steer Found In Stock Tundras
- Adjustable Front Ride Heights From 5 To 6 Inch Of Front Lift Over Stock
- Billet Aluminum UCAs With Delta Joint Pro For Added Strength, Durability, And On-Vehicle Caster/Camber Adjustment For Optimum Drivability
- Patented Delta Joint Pro Provides Improved Durability And Serviceability With 90 Degree Of Total Articulation
- Single Piece High-Strength Ductile Iron Steering Knuckles With Built-In 4 Inch Drop
- Limited Lifetime Warranty
About Product:
Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-Inch steel plate. Provided sway bar drop brackets reduce bind in OE sway bar links. Front and rear heavy-duty bump stop brackets. High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends. 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation. Rear coil spring spacer kit to provide lift while retaining factory rear coil springs. Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension.
Additional information
| Weight | 315 lbs |
|---|---|
| Dimensions | 40 × 24 × 10 in |
| Brand | ICON |
| Manufacturer Part Number | K53273 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 70 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
