ICON Vehicle Dynamics Lift Kit Suspension, Stage 4, 1-1/4 to 3 Inch Front Lift, 1/2 Inch Rear Lift – K53294TS
$4,480.56
ICON Vehicle Dynamics Lift Kit Suspension, Stage 4 – K53294TS
Description

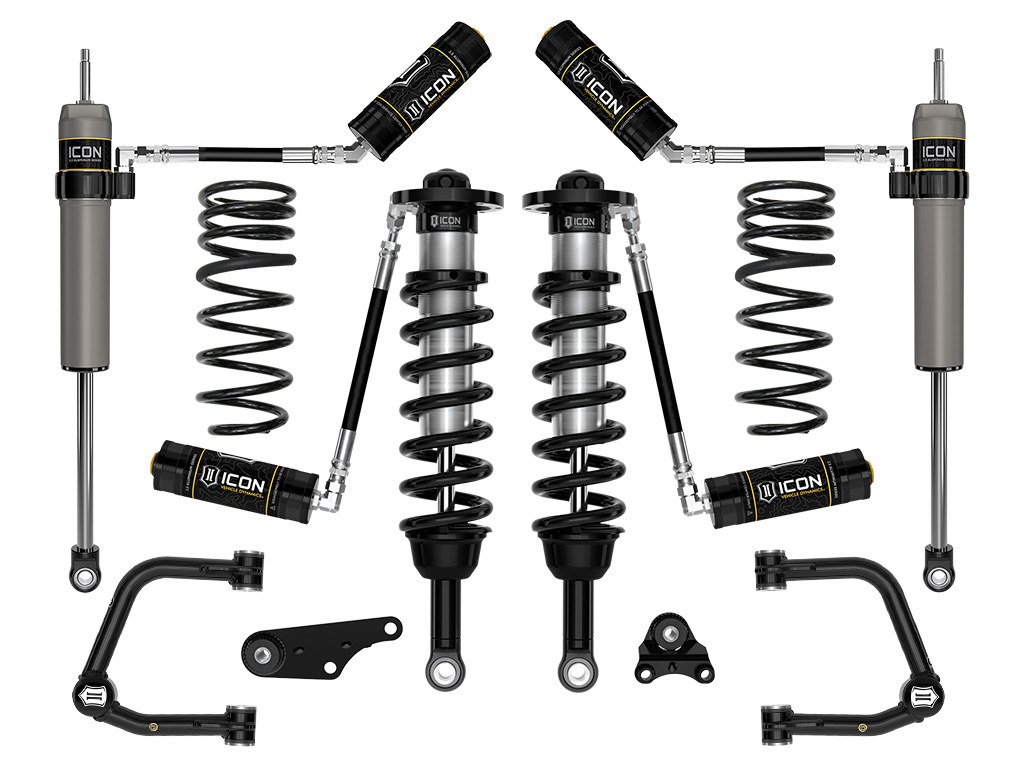

Lift Kit Suspension; Stage 4; 1-1/4 To 3 Inch Front Lift; 1/2 Inch Rear Lift; With Front Coil Over Remote Reservoir Shock Absorbers And Rear Remote Reservoir Shock Absorbers In Kit; Black/ Silver Components; With Coil Over Mounts/ Rear Coil Springs/ Tubular Upper Control Arms/ Differential Drop Brackets/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 1-1/4 To 3 Inch
- Rear Lift Amount (IN): 1/2 Inch
- Maximum Tire Size: 33 x 11.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Nitro Gas Charged
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 25
- Shocks: With Front Coil Over Remote Reservoir Shock Absorbers And Rear Remote Reservoir Shock Absorbers
- Color: Black/ Silver Components
Features & Benefits:
- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- Increased Wheel Travel And Improved Ride Quality Over Stock
- Front Differential Drop Provides Better Maximum Operating Angle For CV Joints
- Adjustable Coilovers Provide 1-1/4 To 3 Inch Front Lift Height Over Stock
- Tubular UCAs For Added Strength, Durability, And Alignment Correction For Better Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degree Of Total Articulation
- Triple Rate Rear Coil Springs Improve Performance And Ride Quality While Providing 1/2 Inch Of Rear Lift
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts
- Limited Lifetime Warranty
About Product:
ICON Vehicle Dynamics suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system features vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1-1/4 To 3 Inch of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON tubular upper control arm kit is designed to improve the overall performance with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
Additional information
| Weight | 163 lbs |
|---|---|
| Dimensions | 39 × 15 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | K53294TS |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 12 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
