ICON Vehicle Dynamics Lift Kit Suspension, Stage 4, 6 Inch Front Lift, 6 Inch Rear Lift – K53274T
$7,257.78
ICON Vehicle Dynamics Lift Kit Suspension, Stage 4, 6 Inch Front Lift – K53274T
Description

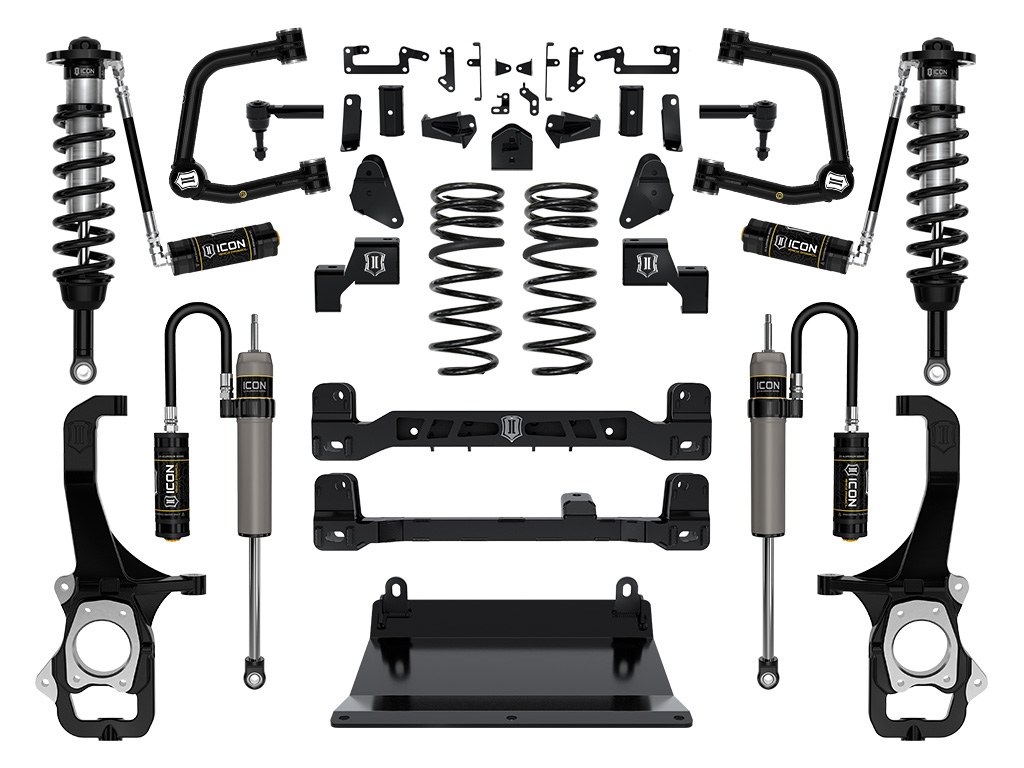

Lift Kit Suspension; Stage 4; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Coil Over Remote Reservoir Shock Absorbers And Rear Remote Reservoir Shock Absorbers In Kit; Black Components/ Gray Shock Absorbers; With Front Tubular Upper Control Arms/ Coil Springs/ Cross Members/ Steering Knuckles/ Skid Plate/ Stabilizer Drop Brackets/ Bump Stop Brackets/ Tie-Rod Ends/ Stabilizer Bar Links/ Rear Track Bar Bracket/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Control Arms
- Rear Lift Type: Coil Spring
- Wheel Backspacing (IN): 5.625
- Minimum Wheel Diameter: 20
- Wheel Offset (MM): 16
- Shocks: With Shocks In Kit
- Color: Black Components/ Gray Shock Absorbers
Features & Benefits:
- 2.5 Series Front Coilovers And Rear Shocks With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- System Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- Optimized Design To Fit 37 Inch Tires With Full Articulation
- Maintains Factory Track Width
- Optimized Suspension Geometry Nearly Eliminates The Bump Steer Found In Stock Tundras
- Adjustable Front Ride Heights From 5 To 6 Inch Of Front Lift Over Stock
- Tubular UCAs With Delta Joint Pro For Added Strength, Durability, And Caster Correction For Improved Drivability
- Patented Delta Joint Pro Provides Improved Durability And Serviceability With 90 Degree Of Total Articulation
- Single Piece High-Strength Ductile Iron Steering Knuckles With Built-In 4 Inch Drop
- Limited Lifetime Warranty
About Product:
Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-Inch steel plate. Provided sway bar drop brackets reduce bind in OE sway bar links. Front and rear heavy-duty bump stop brackets. High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends. ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving. Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension.
Additional information
| Weight | 372 lbs |
|---|---|
| Dimensions | 39 × 24 × 10 in |
| Brand | ICON |
| Manufacturer Part Number | K53274T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 70 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
