ICON Vehicle Dynamics Lift Kit Suspension, Stage 7, 0 to 3-1/2 Inch Front Lift, 2 Inch Rear Lift – K53067T
$6,174.99
ICON Vehicle Dynamics Lift Kit Suspension, Stage 7 – K53067T
Description

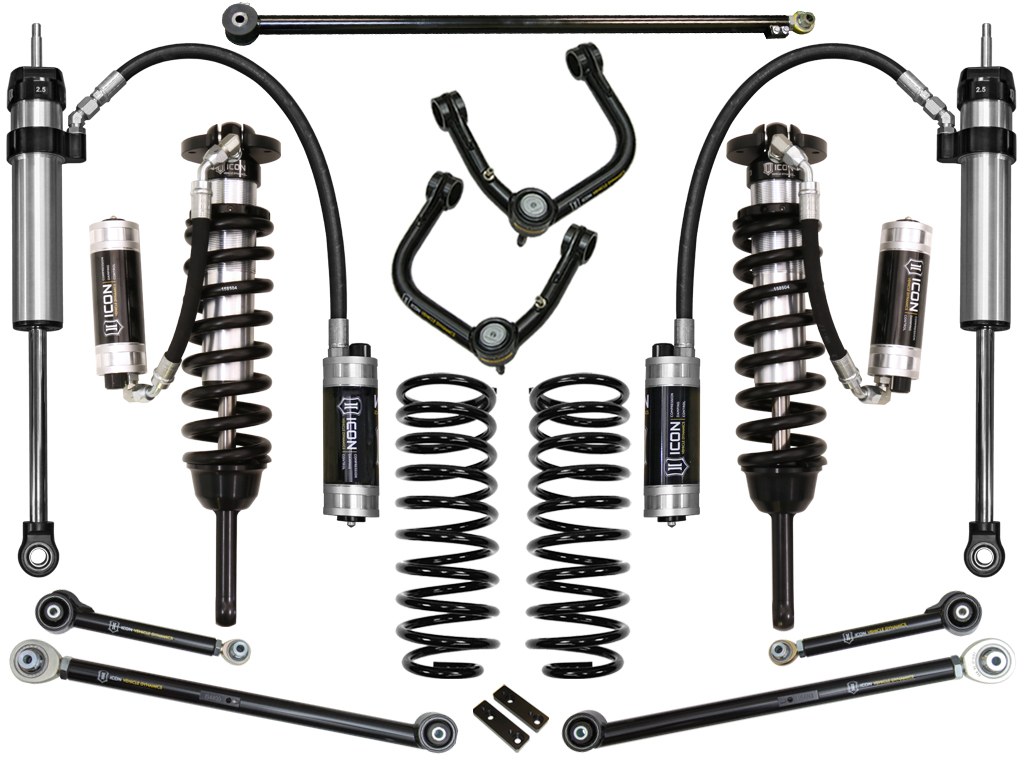

Lift Kit Suspension; Stage 7; 0 To 3-1/2 Inch Front Lift; 2 Inch Rear Lift; With Front Remote Reservoir Coil Over Shock Absorbers And Rear Remote Reservoir Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Coil Over Mounts/ Rear Coil Springs/ Front Upper Tubular Control Arms/ Tubular Upper And Lower Trailing Arms/ Track Bar/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 0 To 3-1/2 Inch
- Rear Lift Amount (IN): 2 Inch
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Coil Spring
- Maximum Tire Size: 33 x 11.25
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 4.75
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Increased Wheel Travel And Ride Quality Over Stock
- Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
- CDC Valve Technology Allows For Quick And Easy Compression Damping Adjustment Without The Need For Tools
- Adjustable Coilovers Provide 0 To 3-1/2 Inch Of Front Lift Height
- Extended Travel Remote Reservoir Coilovers Matched With ICON UCAs Provide Increased Front Droop Travel
- Tubular Upper And Lower Rear Links Offer Increased Strength, Improved Geometry, And Pinion Angle Adjustment
- Corrosion Resistant CAD Plated Coilover Shock Body With 7/8 Inch Shaft
- 2.5 Aluminum Series Rear Shocks Feature One-Piece Impact Extruded Aluminum Cylinders For Excellent Corrosion Resistance And Consistent Finish
- Limited 1 Year Warranty
About Product:
ICON’s 2010-UP Toyota 4Runner/2010-2014 FJ Cruiser Stage 7 suspension system provides the ultimate level of on and off-road performance of the vehicle. This system includes all of the components featured in the Stage 6 setup – ICON tubular Delta Joint upper control arm kit, 2.5 Series remote reservoir front coilovers and 2.5 Aluminum Series rear shocks, 2 Inch rear coil springs, adjustable rear track bar, and a tubular rear upper and lower link arm kit – but sees the addition of ICON’s Compression Damping Control Valve (CDCV) front and rear. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2 Inch of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON’s tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
Additional information
| Weight | 187 lbs |
|---|---|
| Dimensions | 43 × 13 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K53067T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 125 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
