ICON Vehicle Dynamics Lift Kit Suspension, Stage 7, 0 to 3-1/2 Inch Front Lift, 2 Inch Rear Lift – K53187T
$6,174.99

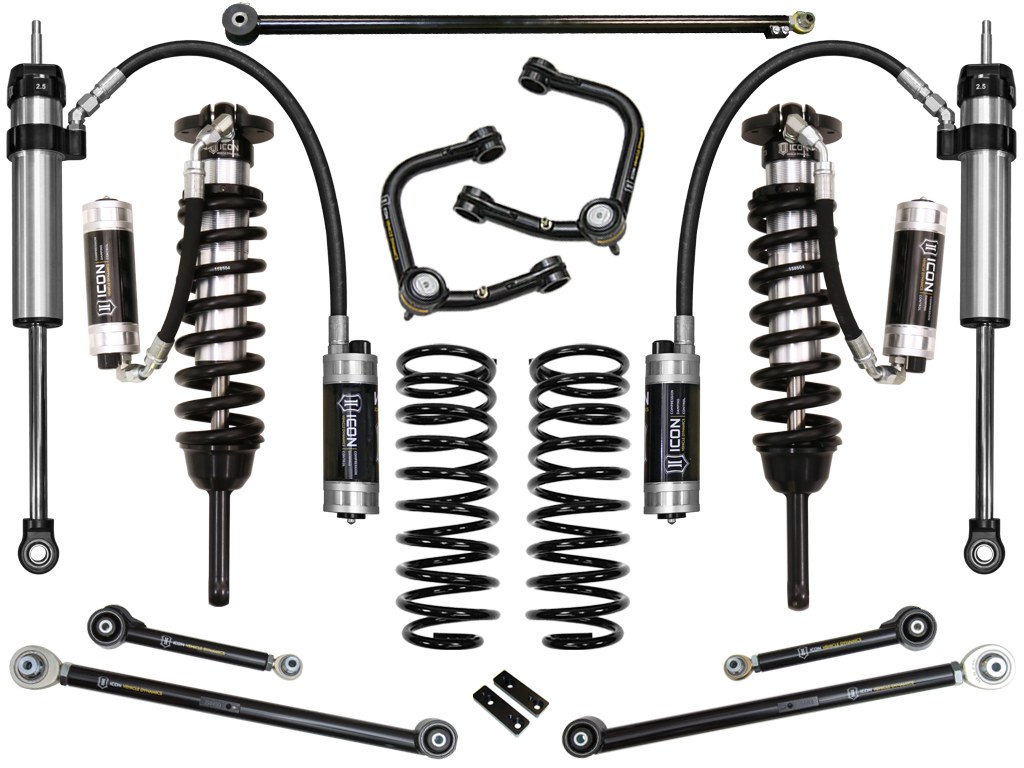

ICON Vehicle Dynamics Lift Kit Suspension, Stage 7 – K53187T
Description
Lift Kit Suspension; Stage 7; 0 To 3-1/2 Inch Front Lift; 2 Inch Rear Lift; With Front Remote Reservoir Coil Over Shock Absorbers And Rear Remote Reservoir Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Coil Over Mounts/ Front Upper Control Arms/ Track Bar/ Rear Coil Springs/ Rear Control Arms/ Installation Hardware; May Require Additional Parts Based On Application (See Required Parts)
Attributes:
- Front Lift Amount (IN): 0 To 3-1/2 Inch
- Rear Lift Amount (IN): 2 Inch
- Front Lift Type: Upper Control Arms
- Rear Lift Type: Coil Springs
- Maximum Tire Size: 33 x 11.50
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- 2.5 Series Rear Remote Reservoir Shocks With 7/8 Inch Shafts And 6061 Aircraft Grade Aluminum CNC Machined Components
- Adjustable Rear Track Bar Ensures KDSS Compatibility And Proper Rear Axle Alignment
- Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
- CDC Valve Technology Allows For Quick And Easy Compression Damping Adjustment Without The Need For Tools
- Adjustable Coilovers With Remote Reservoirs Provide 0-3.5 Inch Of Lift Height
- Billet Rear Upper And Lower Links Offer Increased Strength, Improved Geometry, And On-Vehicle Pinion Angle Adjustment
- Corrosion Resistant CAD Plated Coilover Shock Body With 7/8 Inch Shaft
- Bolt-On System Means No Cutting Or Welding Necessary For Install
- Limited Lifetime Warranty
About Product:
The stage 7 system includes vehicle-specific tuned, extended travel 2.5 Inch coilover shocks with remote reservoirs, for improved heat dissipation and off-road performance, paired with billet aluminum delta joint upper control arms. This combination allows for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. The coilovers are also height adjustable from 0-3.5 Inch of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Icon 2 Inch lift rear coil springs paired with 2.5 series remote reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. Cdc valves are installed in both the front and rear shocks and allow for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. Icons billet aluminum upper and lower links are much stronger than the oe units, improve articulation, and can be adjusted while installed on the vehicle for optimum pinion angle. On top of it all, the lower links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. Comes with an adjustable rear track bar also to help correct the rear end alignment as well as for kdss compatibility. Specifically for the gx470 platforms a rear coil spring conversion kit is included to eliminate the factory rear air bags. The icon vehicle dynamics stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 187 lbs |
|---|---|
| Dimensions | 43 × 13 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K53187T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 35 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
