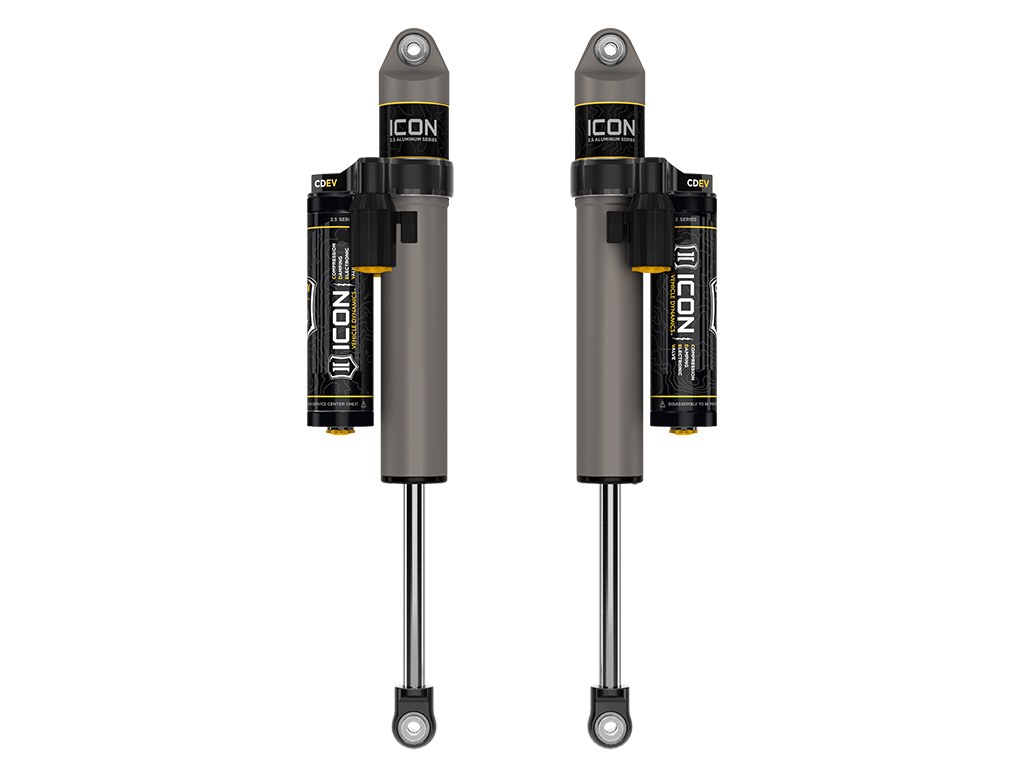

ICON Vehicle Dynamics Shock Absorber, 2.5 Series, Nitrogen Gas Charged, With Remote Reservoir, One Year Limited Warranty – 37705EP
$2,374.45
ICON Vehicle Dynamics Shock Absorber, 2.5 Series, Nitrogen Gas Charged – 37705EP
Description
Shock Absorber; 2.5 Series; Nitrogen Gas Charged; With Remote Reservoir; One Year Limited Warranty; Electronic Adjustable Valving; Without Shock Boots; Silver; Set Of 2
Attributes:
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Internal Design: Monotube
- Adjustable Valving: Yes
- Extended Length (IN): OEM
- Compressed Length (IN): OEM
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Body Color: Gray
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Electronic Adjustable Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- ICON’s CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control (IIC)
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
- One-Piece, Hard Anodized, Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Piggyback Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft; 6061 Aircraft Grade Aluminum CNC Machined Components
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- Fully Rebuildable And Re-Tunable
- Limited 1 Year Warranty
About Product:
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Additional information
| Weight | 25 lbs |
|---|---|
| Dimensions | 39 × 15 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | 37705EP |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 437 vehicles.
