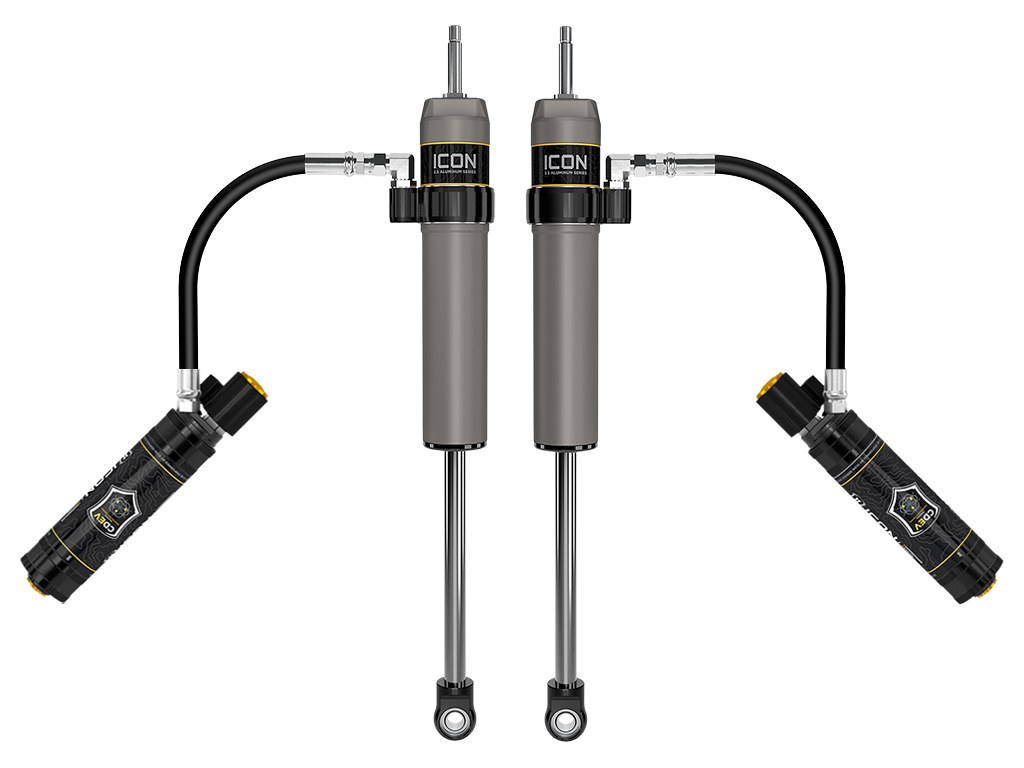

ICON Vehicle Dynamics Shock Absorber, 2.5 Series, Nitrogen Gas Charged, With Remote Reservoir, One Year Limited Warranty – 57808EP
$2,374.45
ICON Vehicle Dynamics Shock Absorber, 2.5 Series, Nitrogen Gas Charged – 57808EP
Description
Shock Absorber; 2.5 Series; Nitrogen Gas Charged; With Remote Reservoir; One Year Limited Warranty; Electronic Adjustable Valving; Without Shock Boots; Gray; Set Of 2
Attributes:
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Electronic Adjustable Valving
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
- Remote Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece, Hard Anodized, Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Nitrogen Charged Monotube Design With Remote Reservoir
- ICON’s CDC Valve Technology Allows For 10 Levels Of High-Resolution Compression Adjustability With The Turn Of A Knob
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
- Rubber Dust Boot Provided For Added Shaft Protection
- Limited Lifetime Warranty
About Product:

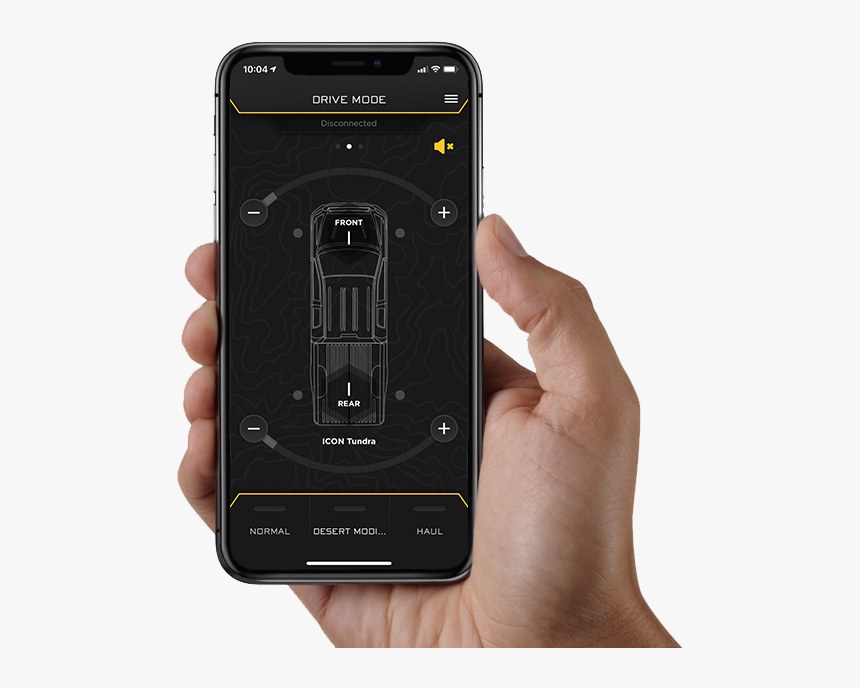

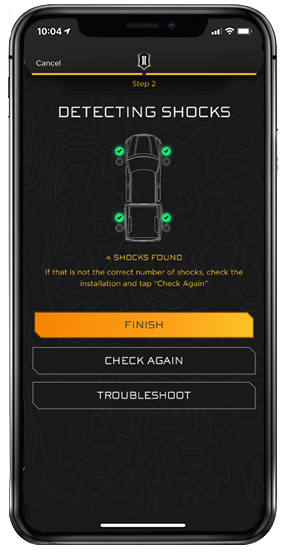

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is provided for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Additional information
| Weight | 32 lbs |
|---|---|
| Dimensions | 39 × 15 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | 57808EP |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 20 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
