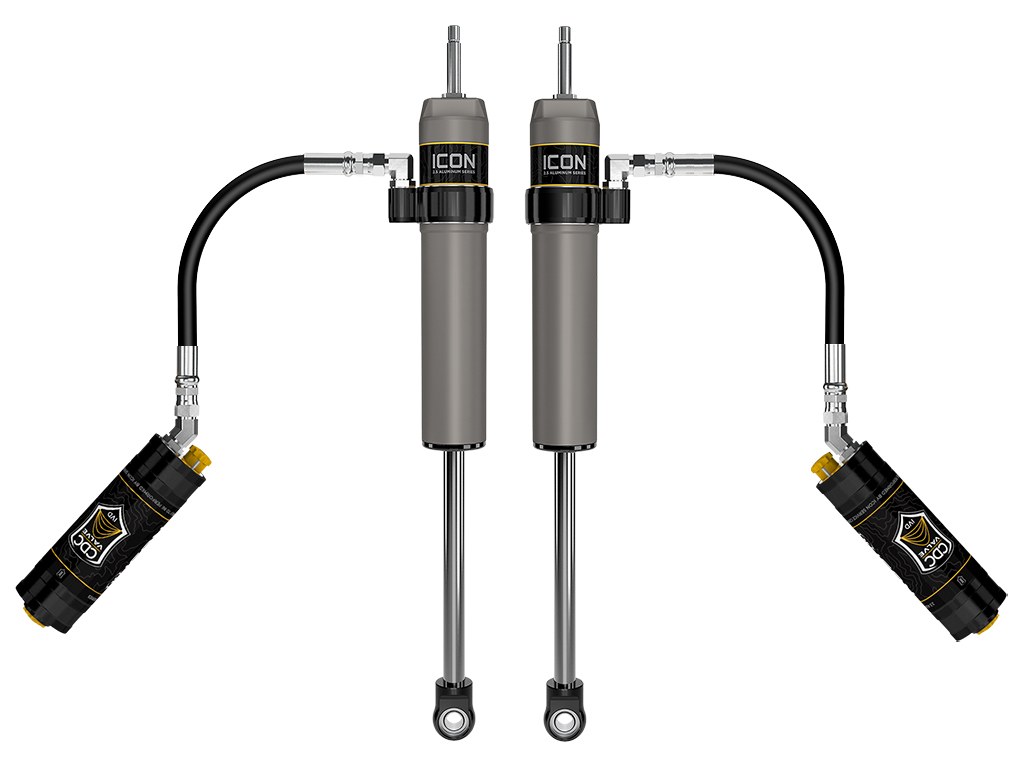

ICON Vehicle Dynamics Shock Absorber, 2.5 Series, Nitrogen Gas Charged, With Remote Reservoir, One Year Limited Warranty, Adjustable Valving – 57808CP
$1,729.73
ICON Vehicle Dynamics Shock Absorber, 2.5 Series, Nitrogen Gas Charged – 57808CP
Description
Shock Absorber; 2.5 Series; Nitrogen Gas Charged; With Remote Reservoir; One Year Limited Warranty; Adjustable Valving; Without Shock Boots; Gray; Set Of 2
Attributes:
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
- Remote Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece, Hard Anodized, Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Nitrogen Charged Monotube Design With Remote Reservoir
- ICON’s CDC Valve Technology Allows For 10 Levels Of High-Resolution Compression Adjustability With The Turn Of A Knob
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
- Rubber Dust Boot Provided For Added Shaft Protection
- Limited Lifetime Warranty
About Product:
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON’s exclusive Compression Damping Control Valves are provided for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
Additional information
| Weight | 33 lbs |
|---|---|
| Dimensions | 39 × 15 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | 57808CP |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 28 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
