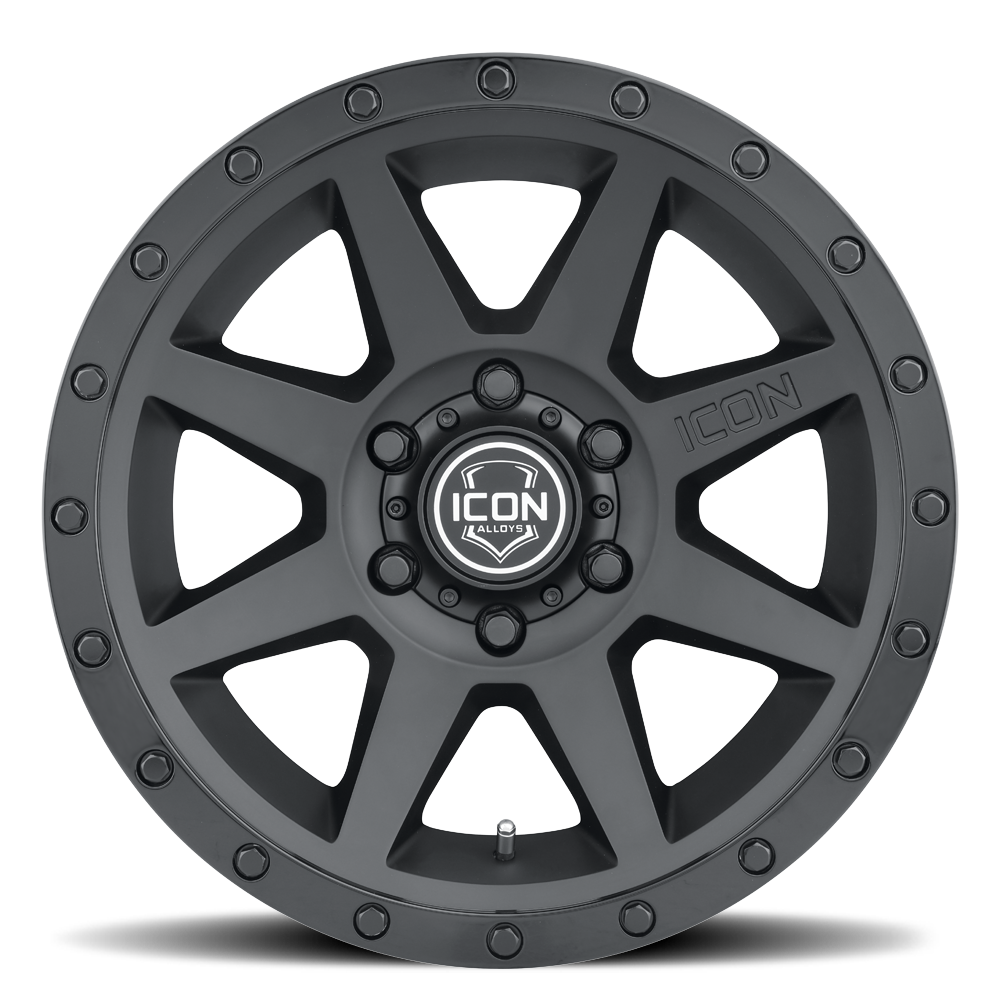

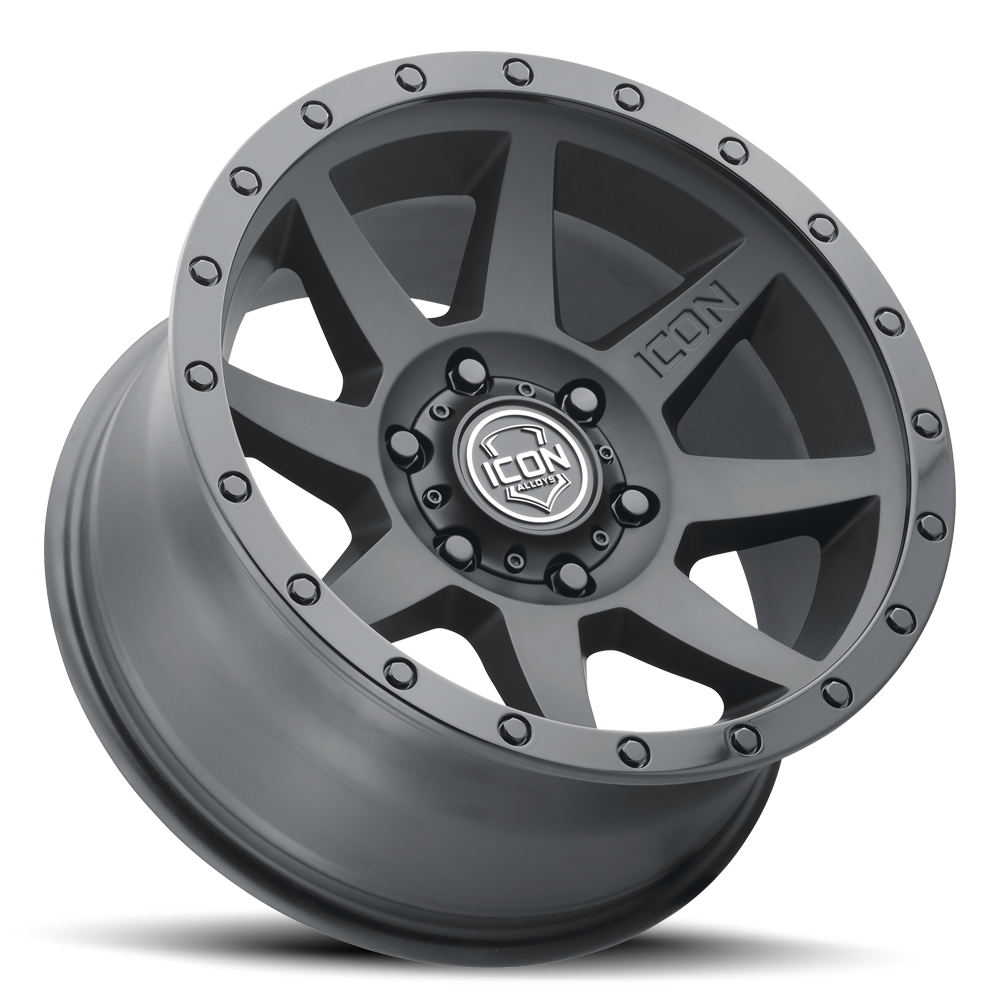

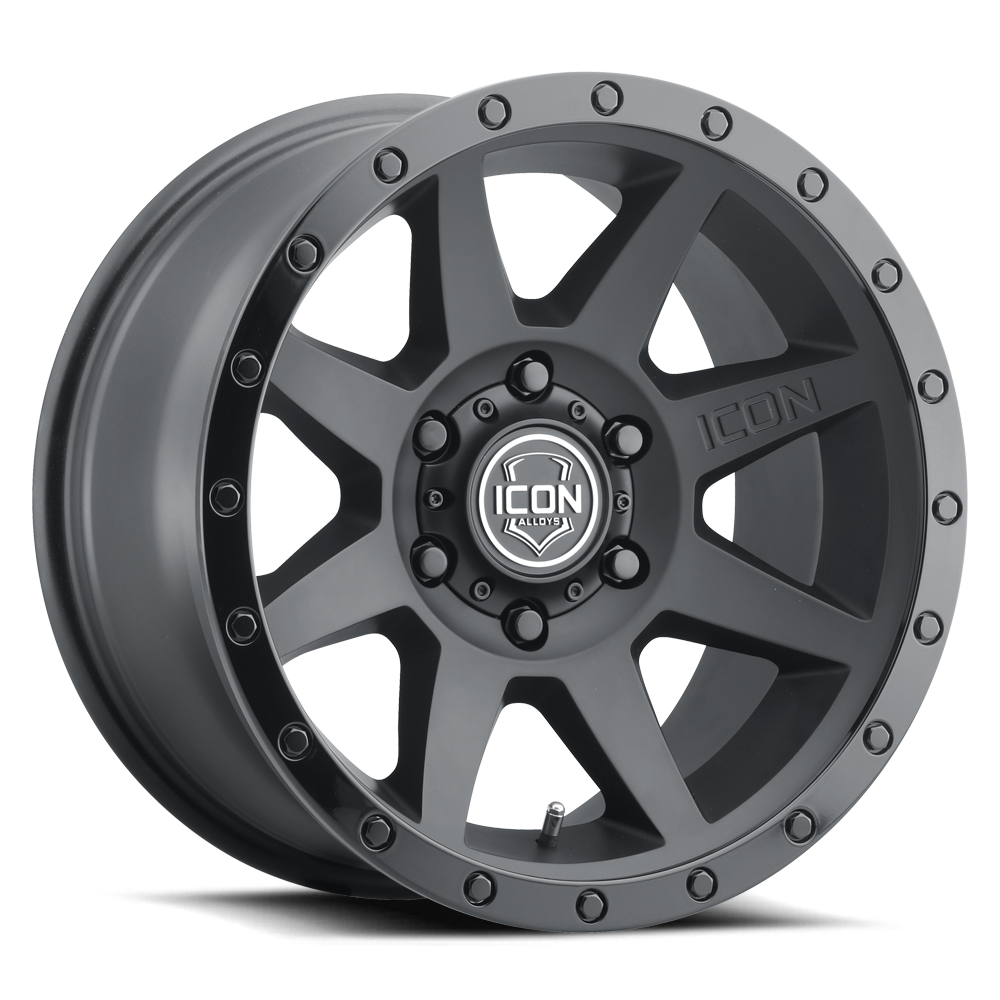

ICON Vehicle Dynamics Wheel, Rebound, 17 Inch Diameter X 8.5 Inch Width, 6 X 139.7 Millimeter/ 6 X 5.50 Inch Bolt Pattern – 1817858347DB
$343.70
ICON Vehicle Dynamics Wheel, Rebound – 1817858347DB
Description
Wheel; Rebound; 17 Inch Diameter x 8.5 Inch Width; 6 x 139.7 Millimeter/ 6 x 5.50 Inch Bolt Pattern; 0 Millimeter Offset; 4.75 Inch Backspacing; 60 Degree Conical Seat Lug; 106.10 Millimeter Center Bore; 8 Spoke; 1 Piece Cast Aluminum Construction; Black; 2750 Pound Load Capacity; Compatible With TPMS (Tire Pressure Monitoring System); 40 Inch Max Tire Diameter; With Icon Vehicle Dynamics Logo Center Cap; Single
Attributes:
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 17
- Width: 8.5
- Offset: 0
- Backspacing: 4.75
- Material: Aluminum
- Finish: Painted
- Color: Black
- Bolt Pattern Inch: 6×5.50
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 6×139.7
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Cap: See Replacement Items
- Center Bore: 106.10
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Spoke
- With Inserts: No
- Load Capacity: 2750
- Size: 17×8.5
- Max Tire Diameter: 40
- Center Cap Design: Icon Vehicle Dynamics Logo
- Finish Warranty: 2 Years
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- Double Black Finish
- 1 Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With Icon Vehicle Dynamics Logo Center Cap
- Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
- Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
- Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use
- Limited Lifetime Warranty
About Product:
Bring a bold new look to your ride with the all-new Icon Alloys Rebound. Combining sharp lines, a concave spoke design and “Icon-optimized” dimensions, these wheels will increase both the form and function of your Jeep, truck or SUV. Staying true to the Icon Alloys approach, the Rebound has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an Icon Vehicle Dynamics suspension system.
Additional information
| Weight | 30 lbs |
|---|---|
| Dimensions | 19 × 19 × 10 in |
| Brand | ICON |
| Manufacturer Part Number | 1817858347DB |
