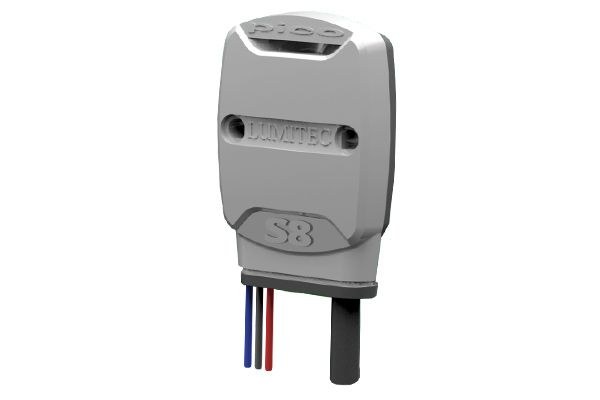

Name: Lumitec Light Control Module, Pico S8, Expansion Module - 101684
Brand: LUMITEC
SKU: KYS-LTC101684
Price: 219.76 USD
Availability: InStock

Description

Light Control Module; Pico S8; Expansion Module; Used To Monitor The Output Of Up To 8 SPST Switches And Signal The Lumitec POCO Digital Lighting Control System When Switch Is Flipped/ Pressed/ Released; 8 Channels; 10 To 30 Volt DC Power Supply; 0.25 Ampere; 1.9 Inch Width 0.52 Inch Depth x 2.6 Inch Height; White; IP67 waterproof; Timed Toggled Protocol; PLI Enabled; CE Certified; -31 To 131 Degree Fahrenheit Operating Temperature

Attributes:

Number of Zones: 8
Power Supply: 10 To 30 Volt
Ampere: 0.25 Amp
Connection Type: Hard Wired

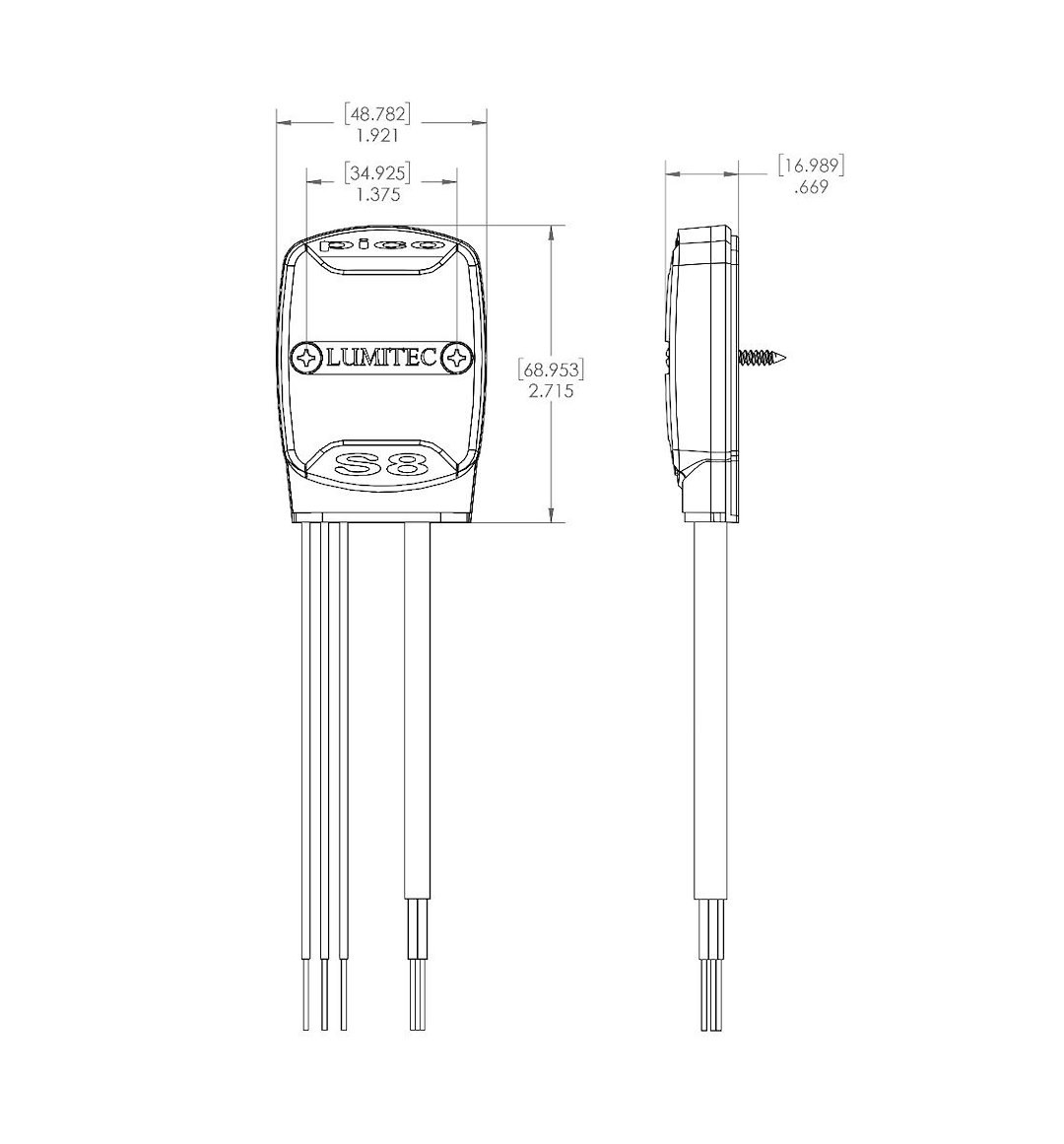

Dimensions: 1.9 Inch Width 0.52 Inch Depth x 2.6 Inch Height
Color: White
Waterproof Rating: IP67 Waterproof

Features & Benefits:

Pico Expansion Modules Extend The Power And Reach Of The Poco Digital Lighting Control System Making It Possible To Control Other Manufacturers’ Luminaires, Lighting Accessories
Provides The Ability To Assign Poco Virtual Switch Commands To Physical Mechanical Switches
MFD Can Remain On A Dedicated Screen, Or Even Be Turned Off, And A Physical Switch Will Activate The Virtual Switch Command Through The Poco Module
CE Certified
Limited 3 Year Warranty

About Product:
PICO S8 is designed to monitor the output of up to 8 SPST switches (toggle, rocker, momentary, etc.) and signal the Lumitec POCO Digital Lighting Control System (POCO 3 or greater) when a switch is flipped, pressed, or released. POCO can be configured to use the signal from the PICO S8 to trigger any pre-set digital command to its connected lights. This means that, with the PICO S8, a mechanical switch can be given full digital control over Lumitec lights. Secure PICO S8 to desired surface with the provided #6 mounting screws. Use Mounting Template provided to pre-drill pilot holes. Most applications will require a drill bit sized larger than the minimum screw diameter but smaller than the maximum thread diameter. When choosing where to mount the PICO S8, consider proximity to the POCO and to the switches. When possible, minimize the length of wire runs. Also consider the visibility of the indicator LED on the PICO S8, which can be useful during the setup to determine the status of the S8.
