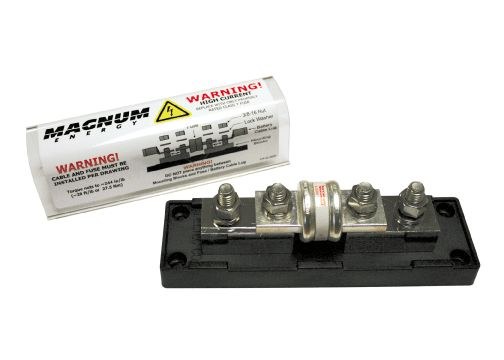

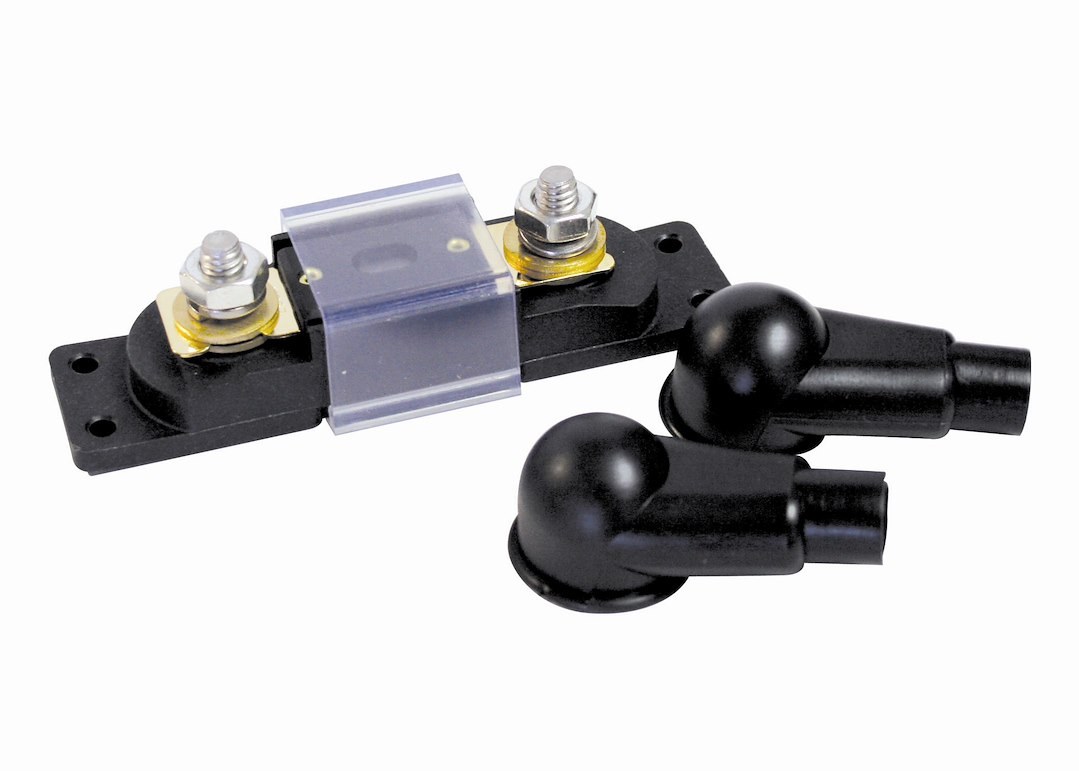

Magnum Fuse Block, 125 Amps, For Battery Bank and Inverter, Anl Style Fuse, With Protective Cover, With 2 Black Rubber Terminal Insulators – ME-125F
$84.73
Magnum Fuse Block, 125 Amps, For Battery Bank and Inverter – ME-125F
Description
Fuse Block; 125 Amps; For Battery Bank And Inverter; ANL Style Fuse; With Protective Cover; With 2 Black Rubber Terminal Insulators
Attributes:
- Power Rating: 125 Ampere
- Type: Slow Blow
- Fuse Type: ANL
- Status Indicator Type: No Status Indicator
- Cover Style: Protective Cover
- Includes Flashers: No
- Includes Fuses: Yes
- Includes Horn Relay: No
- Includes Mounting Brackets: No
- Includes Terminals: No
Features & Benefits:
- Designed To Provide Code Compliant Over-Current Protection
- Used To Protect The Battery Bank, Inverter And Cables From Damage Caused By Short Circuits And Overloads
- Magnum Highly Engineered Devices Satisfy The World’s Growing Need For Safety, Energy Efficiency And A Clean Environment
- Easy To Install
- No Supplier Warranty
About Product:
Magnum Energy Fuse Block assemblies are designed to provide code compliant over-current protection. They are used to protect the battery bank, inverter and cables from damage caused by short circuits and overloads. Each Fuse Block Assembly uses a fast-acting, current-limiting fuse cartridge which provides instantaneous protection in the event of a short circuit, but also employs a time delay to allow momentary current surges common in inverter applications. A rugged injection molded poly carbonate base and thermoformed ABS cover provides durability, easy installation and good looks all in a compact, cost effective package. The 125 and 200 Ampere models use an ANL type fuse and the 300 and 400 Ampere models use the Class-T fuses. Magnum fuse blocks are ideal in applications where over-current protection is required for high current components such as inverters and chargers.
Additional information
| Weight | 1.88 lbs |
|---|---|
| Dimensions | 9 × 3.5 × 3.5 in |
| Brand | MAGNUM |
| Manufacturer Part Number | ME-125F |
