Mastervolt Battery Isolator, Charge Mate, Use IN 12/ 24 Volt Dual Battery Systems for Isolation/ Charging Functions, 40 Amp – 83304002
$302.53

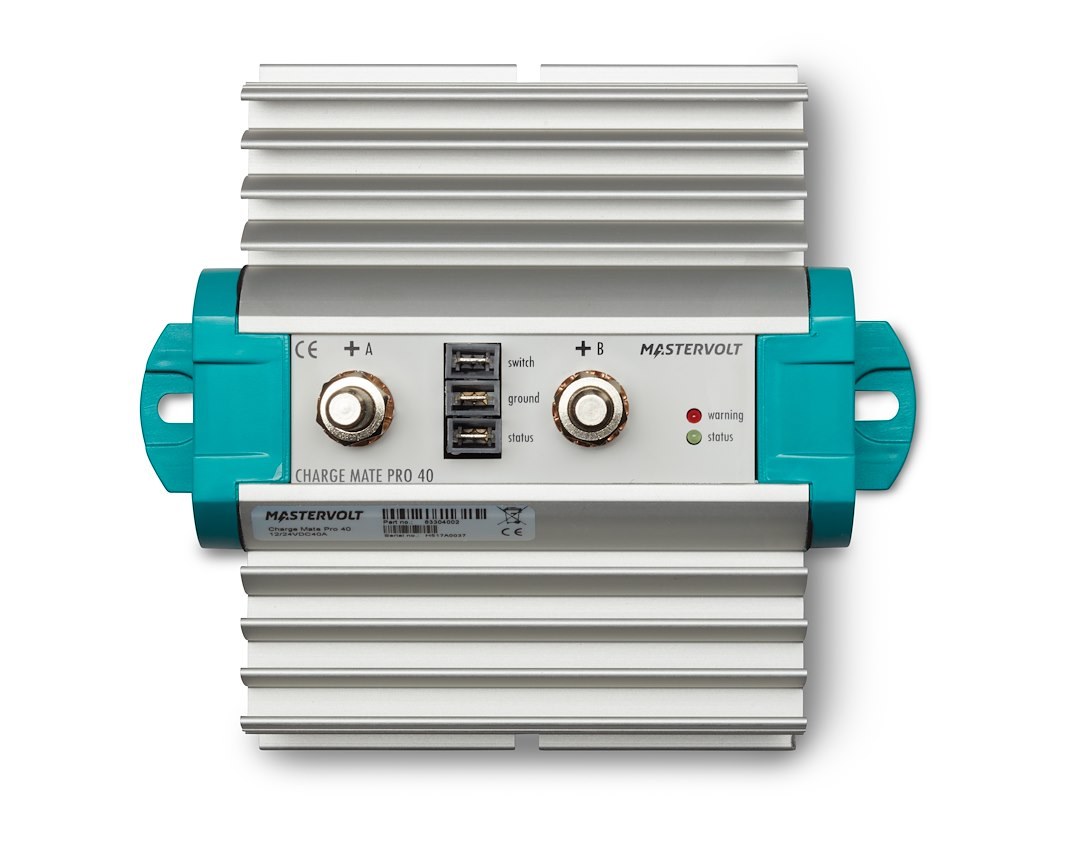

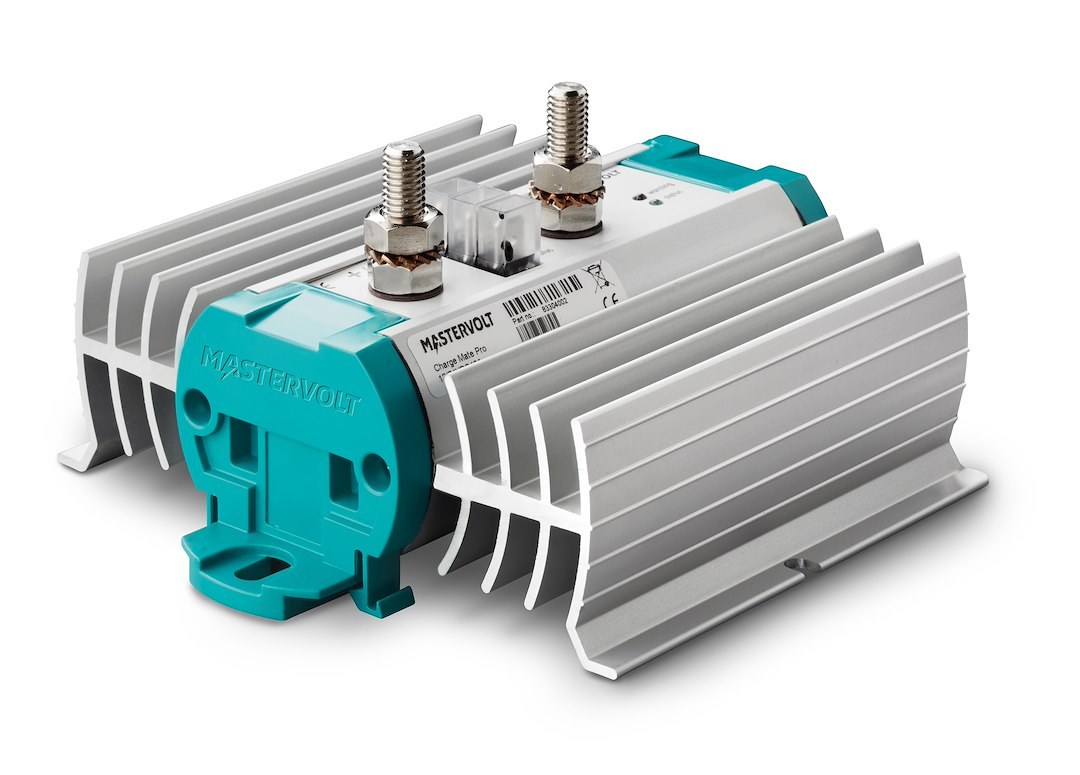

Mastervolt Battery Isolator, Charge Mate – 83304002
Description
Battery Isolator; Charge Mate; Use In 12/ 24 Volt Dual Battery Systems For Isolation/ Charging Functions; 40 Amp
Attributes:
- Used With: 12/ 24 Volt Dual Battery Systems For Isolation/ Charging Functions
- Amperage: 40 Amp
- Includes Solenoid: No
- Includes Switches: No
- Includes Fuse: No
Features & Benefits:
- Electronic Charge Coupling With Very Low Voltage Drop
- Makes Effective Dual Charging Possible
- Charge Current Secondary Battery Limited To 40 A
- High System Reliability By Prioritized Charging Of The Main Battery
- Limited 2 Year Warranty
About Product:
Current limited electronic charge relay with high efficiency and reverse current protection A secondary battery on board requires a dedicated charging solution. The Charge Mate Pro makes it possible to distribute the charger or alternator current effectively between two battery banks such as a starter and a service battery. The Charge Mate Pro connects both batteries during charging and keeps them isolated when discharging. This significantly reduces the risk of a flat starter battery for example. The Charge Mate Pro offers an additional advantage over mechanical charge relays, by limiting the charge current to the second battery. The primary battery, like a starter battery, is therefore charged with priority. The return current is automatically blocked even when the secondary battery has a higher voltage. An emergency start function is possible by connecting an optional bypass switch to the Charge Master Pro. A marine application example is the connection of a bow thruster battery to a service battery. The Charge Mate Pro ensures that the service battery is always charged with priority. The blocking of the return current from the bow thruster battery guarantees that the bow battery remains charged while the current limiting also prevents power dips of the onboard electrical network.
Additional information
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 6.29 × 5.51 × 2.95 in |
| Brand | MASTERVOLT |
| Manufacturer Part Number | 83304002 |
