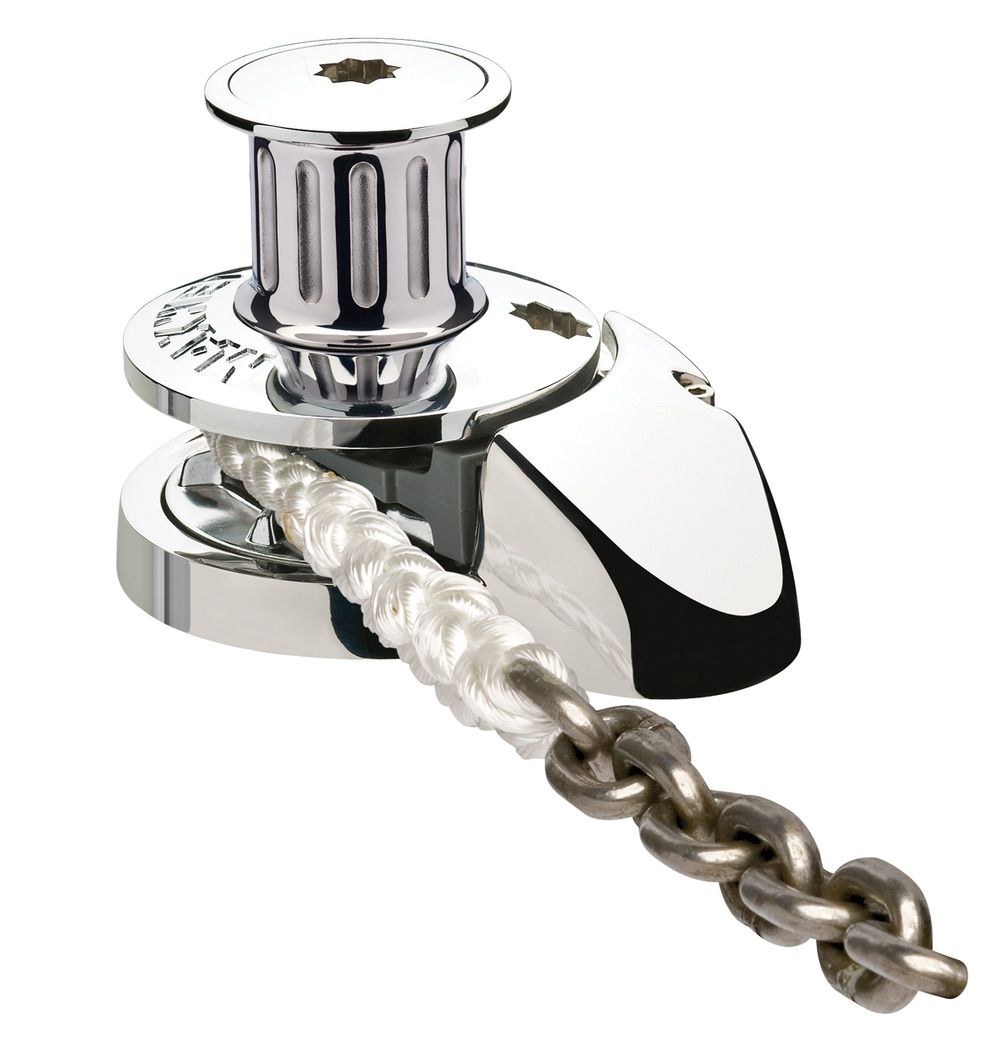

Maxwell Windlass, RC8 Series, Vertical Mount, 1320 Pounds Maximum Pull, 2640 Pounds Load Limit – RC88CAP12V
$2,292.29
Maxwell Windlass, RC8 Series, Vertical Mount – RC88CAP12V
Description
Windlass; RC8 Series; Vertical Mount; 1320 Pounds Maximum Pull; 2640 Pounds Load Limit; 105 Feet Per Minute Chain Speed/ 92 Feet Per Minute Rope Speed; 16-1/4 Inch Width; 316 Stainless Steel; 12 Volt DC; 5/16 Inch Chain And 9/16 To 5/8 Inch Rope Size; With Top Works/ Gearbox/ 1000 Watt Motor/ Dual Direction Solenoid/ 316 Stainless Steel Capstan Drum/ Crank Handle/ Allen Key
Attributes:
- Mount Type: Vertical
- Maximum Pull: 1320 Pound
- Working Load Limit: 2640 Pound
- Maximum Line Speed: 105 Feet Per Minute Chain/ 92 Feet Per Minute Rope
- Size: 16-1/4 Inch Width
- Chain/ Rope Size: 5/16 Inch Chain And 9/16 To 5/8 Inch Rope
- Material: 316 Stainless Steel
- Voltage Rating: 12 Volt DC
- Motor Power: 1000 Watt
Features & Benefits:
- Gearbox Can Be Removed By Hand And Without Tools For Easy Maintenance And Inspection
- Full Disassembly Capability Of The Top Works Utilizing Only The Handle Provided And An Allen Key
- Manual Override And ‘Free Fall’, Using The Emergency Crank And Clutch Handle Provided
- Sealed Oil Bath And Marine-Grade Hard Anodized, Alloy Gearbox Provides Maximum Output Via A Precision Worm And Worm Wheel
- Every Maxwell RC8 Automatic Rope/Chain Windlass Comes With Top Works, Motor/Gear Box And Dual Direction Solenoid
- Unique Spacer Tube Design Allows For Installation Through Virtually Any Deck Thickness, And The Multiple Mounting Positions
- Limited 3 Year Warranty
About Product:
The RC8 rope/chain windlass is the product of over 30 years of engineering refinements and is the third generation of Maxwell windlass in this size with some of the best performance and longevity figures on the market. The tried a true RC8 can be used with 8 Millimeter (5/16 Inch) chain spliced to 14 Millimeter 8-plait nylon rope. The patented Wave Design™ rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC8’s specified chain size diameters.
Additional information
| Weight | 45.19 lbs |
|---|---|
| Dimensions | 18.9 × 17 × 11.9 in |
| Brand | MAXWELL |
| Manufacturer Part Number | RC88CAP12V |
