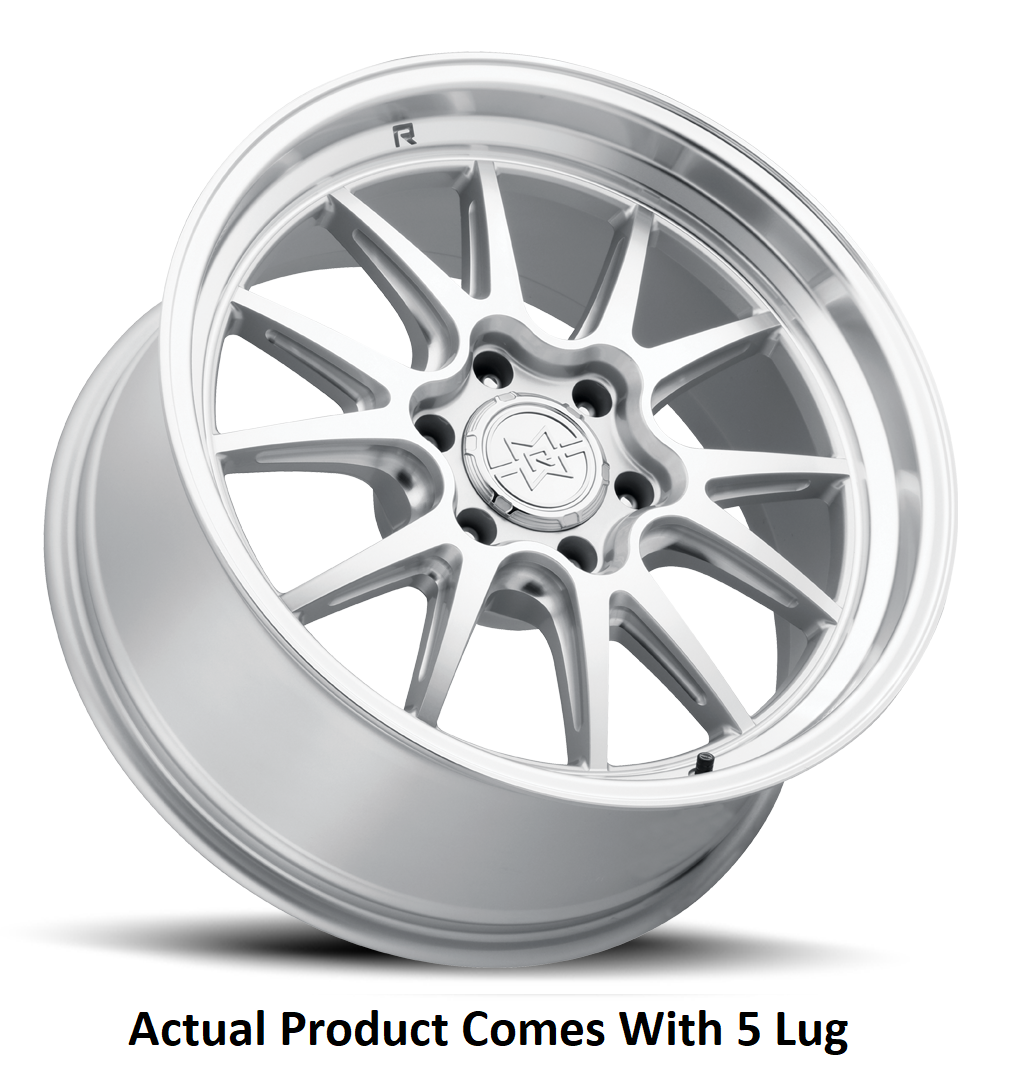

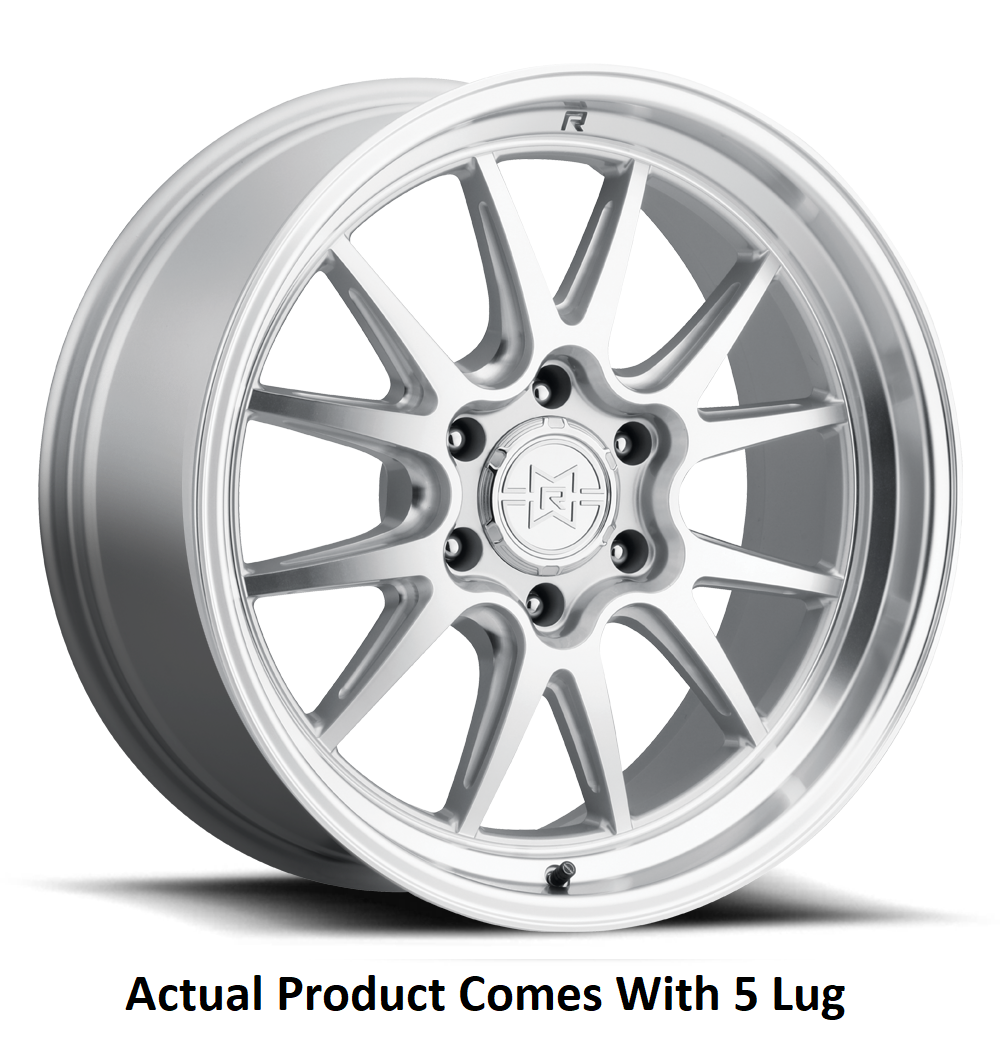

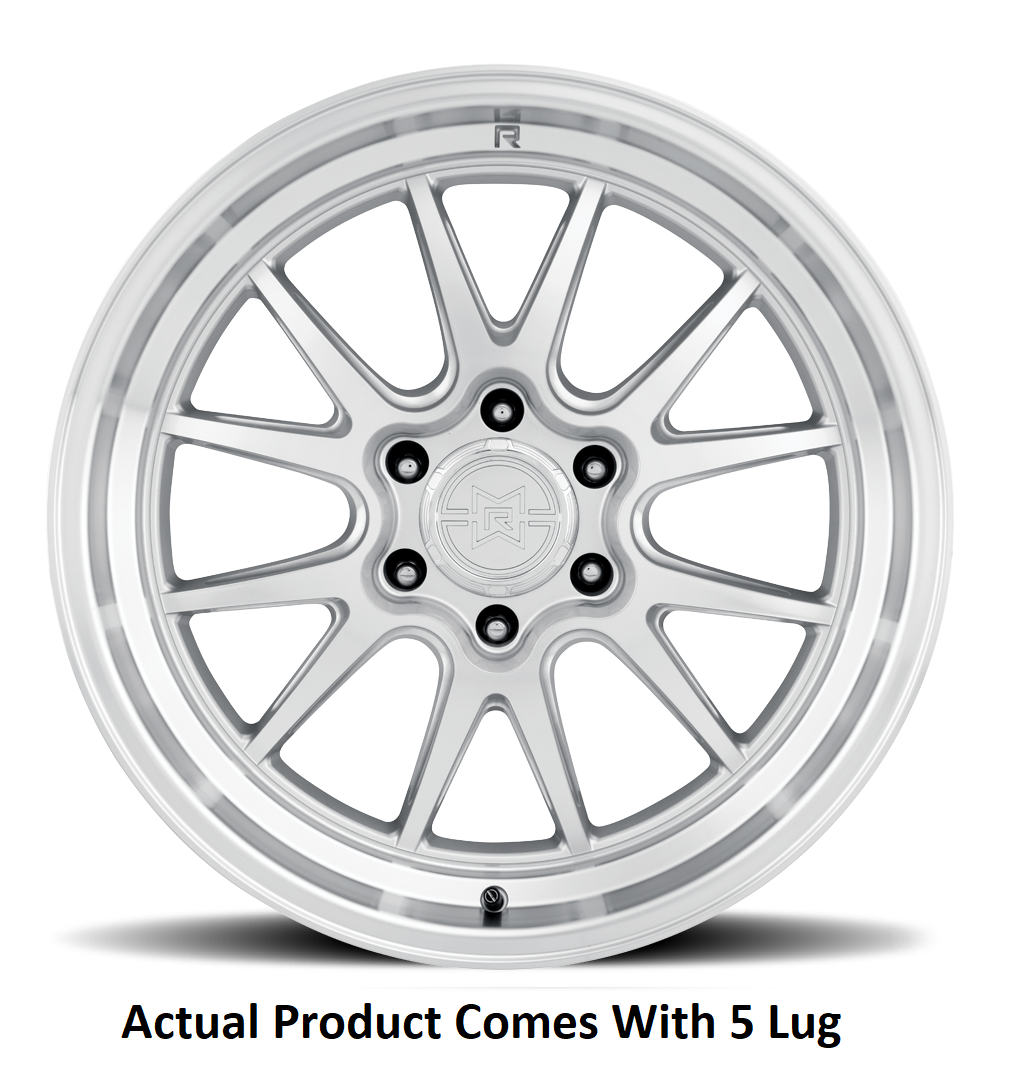

Method Race Wheels Wheel, 802 Raised, 20 Inch Diameter X 10 Inch Width, 5 X 127 Millimeter/ 5 X 5.00 Inch Bolt Pattern – MR80221050318N
$295.03
Method Race Wheels Wheel, 802 Raised – MR80221050318N
Description
Wheel; 802 Raised; 20 Inch Diameter x 10 Inch Width; 5 x 127 Millimeter/ 5 x 5.00 Inch Bolt Pattern; -18 Millimeter Offset; 4.74 Inch Backspacing; 60 Degree Conical Seat Lug; 71.50 Millimeter Center Bore; 6 Split Spoke; Machined Clear Coated; Aluminum; 2650 Pound Load Capacity; Compatible With TPMS (Tire Pressure Monitoring System); 42 Inch Max Tire Diameter; With Method Race Wheels Logo; Single
Attributes:
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 10
- Offset: -18
- Backspacing: 4.74
- Finish: Machined Clear Coated
- Color: Natural
- Material: Aluminum
- Bolt Pattern Inch: 5×5.00
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5×127
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: No
- Center Bore: 71.50
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 6 Split Spoke
- With Inserts: No
- Load Capacity: 2650
- Size: 20×10
- Max Tire Diameter: 42
- Center Cap Design: Method Race Wheel Logo
- Quantity: Single
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- Machined Clear Coated Finish
- Constructed From Aluminum
- Compatible With Tire Pressure Monitoring System
- Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
- Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
- Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
- Heat-Treated To A T6 Standard For Ultimate Tensile Strength
- Both Stronger And Lighter Than Conventional Manufacturing Processes
- Limited Lifetime Structural And 2 Year Finish Warranty
About Product:
All proprietary designed Method beadlock rings are forged. They start from a solid block of 6061 billet aluminum being shaped by extreme pressure, then heat-treated to a To standard for ultimate tensile strength. This process produces a superior alloy that is both stronger and lighter than conventional manufacturing processes. 100 Percent USA based in-house engineering, product development and quality control teams ensure you are getting the highest performing products possible. Method Race Wheels are subjected to extensive lab and real-world race testing before any design is finalized.
Additional information
| Weight | 41.31 lbs |
|---|---|
| Dimensions | 23.22 × 23.22 × 12.91 in |
| Brand | METHOD RACE |
| Manufacturer Part Number | MR80221050318N |
