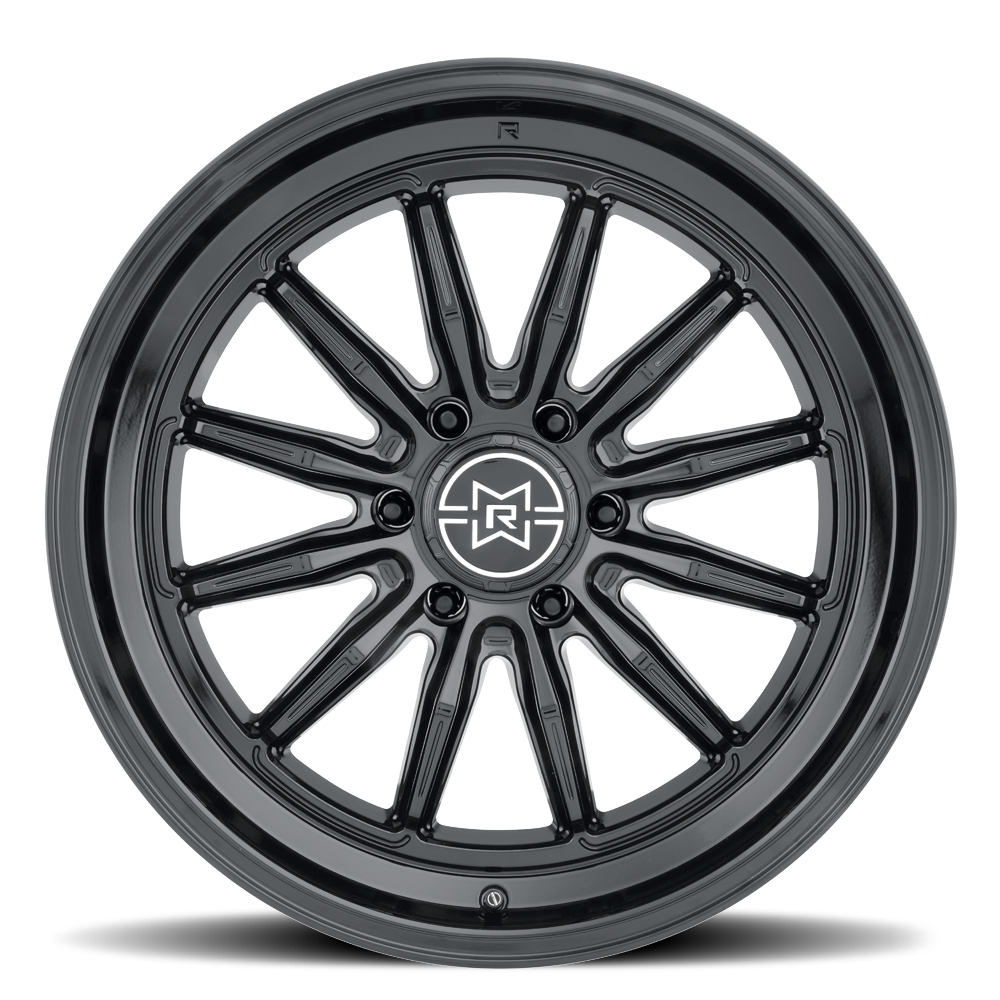

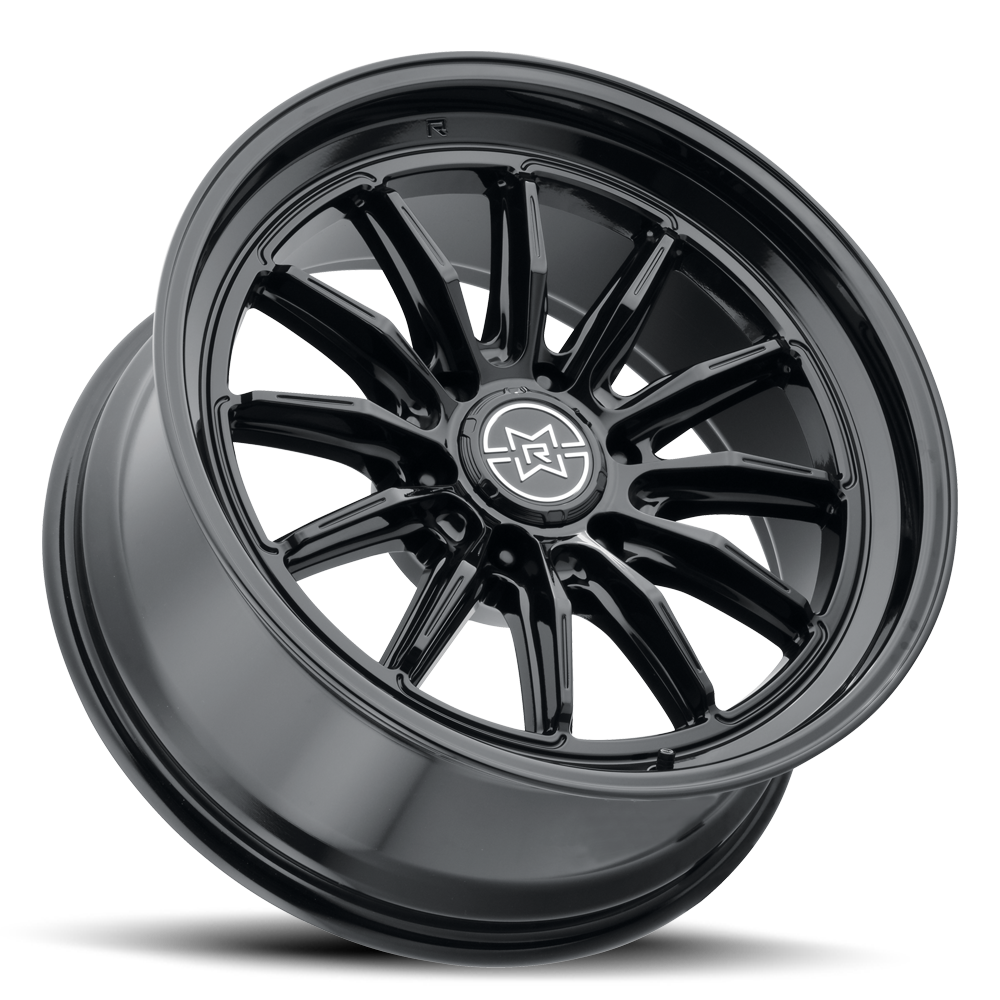

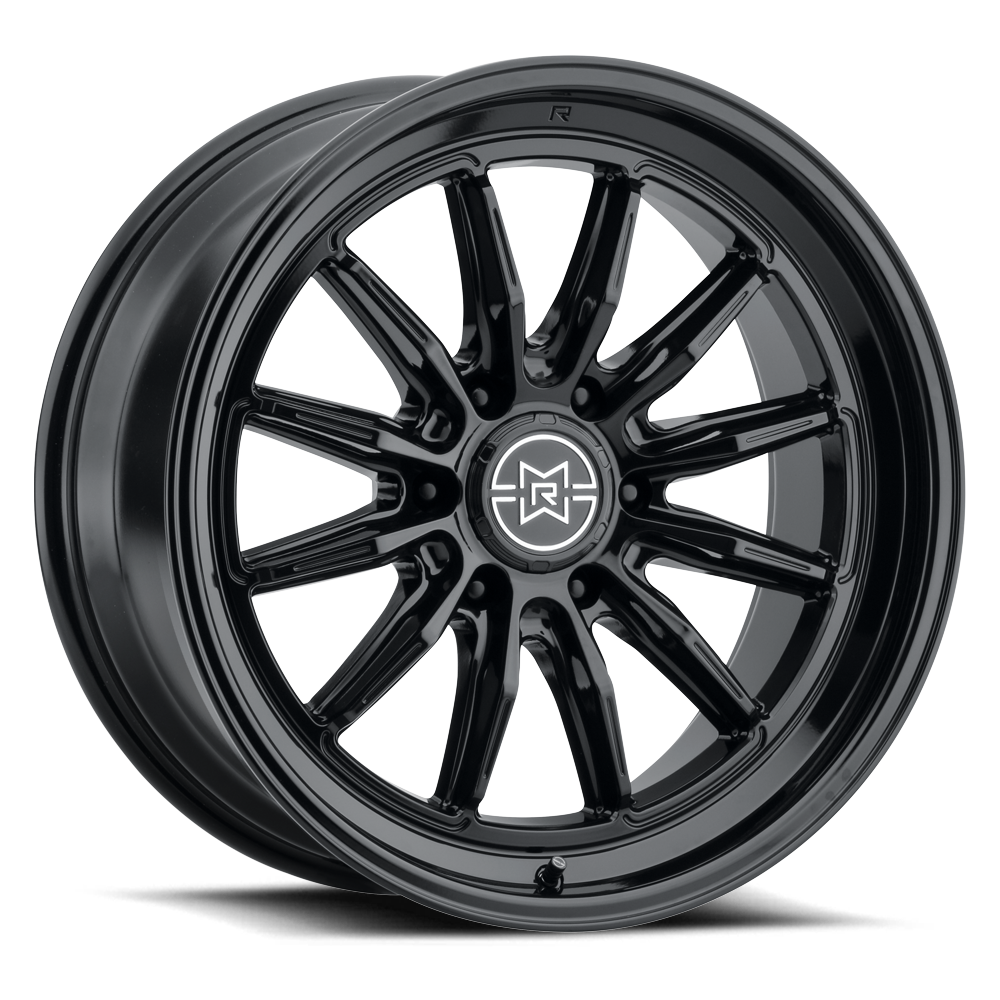

Method Race Wheels Wheel, 803 Raised, 20 Inch Diameter X 9 Inch Width, 6 X 135 Millimeter/ 6 X 5.31 Inch Bolt Pattern – MR803290161300
$423.29
Method Race Wheels Wheel, 803 Raised – MR803290161300
Description
Wheel; 803 Raised; 20 Inch Diameter x 9 Inch Width; 6 x 135 Millimeter/ 6 x 5.31 Inch Bolt Pattern; 0 Millimeter Offset; 4.97 Inch Backspacing; 60 Degree Conical Seat Lug; 87.00 Millimeter Center Bore; 6 Split Spoke; Gloss Black; Aluminum; 2650 Pound Load Capacity; Compatible With TPMS (Tire Pressure Monitoring System); 40 Inch Max Tire Diameter; With Method Race Wheels Logo; Single
Attributes:
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 9
- Offset: 0
- Backspacing: 4.97
- Finish: Painted Gloss
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 6×5.31
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 6×135
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: No
- Center Bore: 87.00
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 6 Split Spoke
- With Inserts: No
- Load Capacity: 2650
- Size: 20×9
- Max Tire Diameter: 40
- Center Cap Design: Method Race Wheel Logo
- Quantity: Single
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- Gloss Black Finish
- Constructed From Aluminum
- Compatible With Tire Pressure Monitoring System
- Large Machined Smooth Radius In The Bead Flange Aids In Outer Bead Tire Mounting And Eliminates Any Possibilities Of Harmful Cuts To The Tire
- Select Method Beadlock Wheels Feature Circular Pockets Machined Into The Beadlock Flange For Added Grip Of The Tire Bead To Eliminate Tire Rotation On Powerful High-Torque Producing Vehicles
- Redundant Sets Of Threaded Beadlock Ring Mounting Holes On Select Method Beadlock Wheels Allow For Continued Wheel Use In The Event Of Thread Stripping Or Elevated Impact Damage
- Heat-Treated To A T6 Standard For Ultimate Tensile Strength
- Both Stronger And Lighter Than Conventional Manufacturing Processes
- Limited Lifetime Structural And 2 Year Finish Warranty
About Product:
All proprietary designed Method beadlock rings are forged. They start from a solid block of 6061 billet aluminum being shaped by extreme pressure, then heat-treated to a To standard for ultimate tensile strength. This process produces a superior alloy that is both stronger and lighter than conventional manufacturing processes. 100 Percent USA based in-house engineering, product development and quality control teams ensure you are getting the highest performing products possible. Method Race Wheels are subjected to extensive lab and real-world race testing before any design is finalized.
Additional information
| Weight | 39.33 lbs |
|---|---|
| Dimensions | 23.22 × 23.22 × 11.77 in |
| Brand | METHOD RACE |
| Manufacturer Part Number | MR803290161300 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 1,096 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
