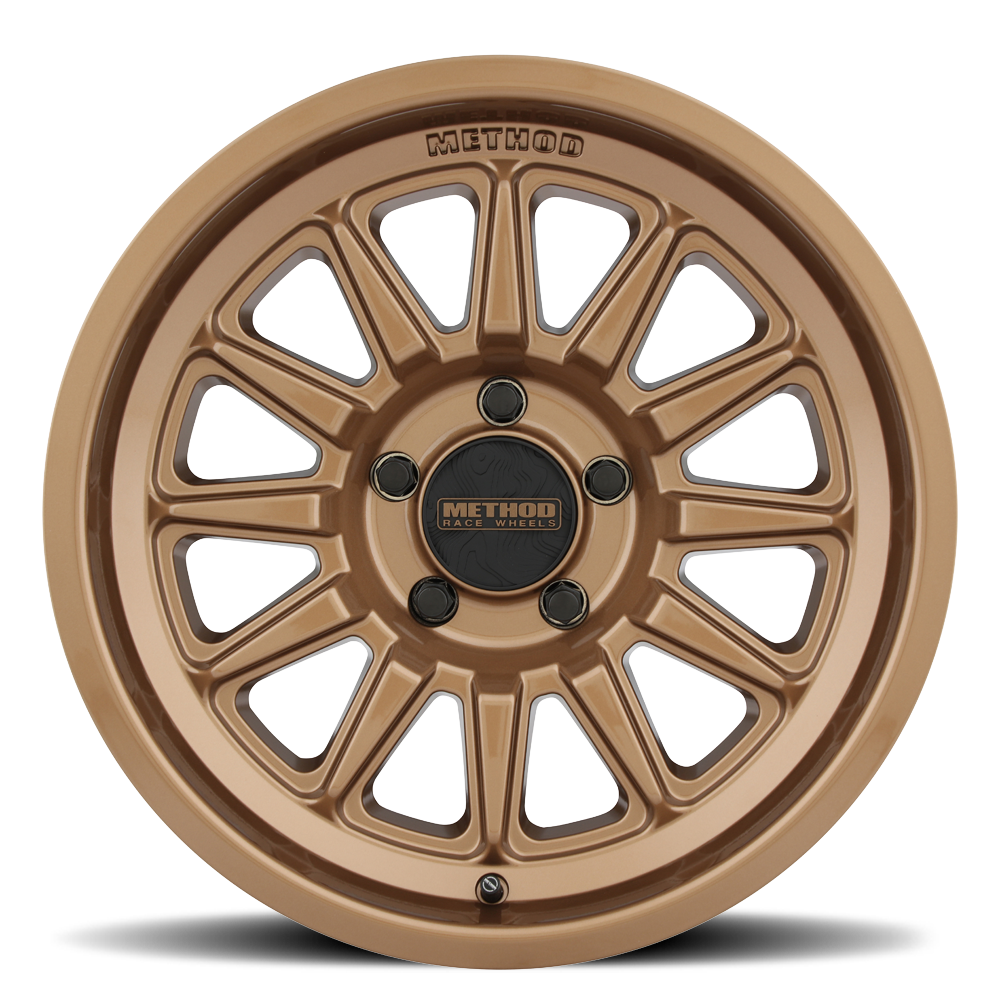

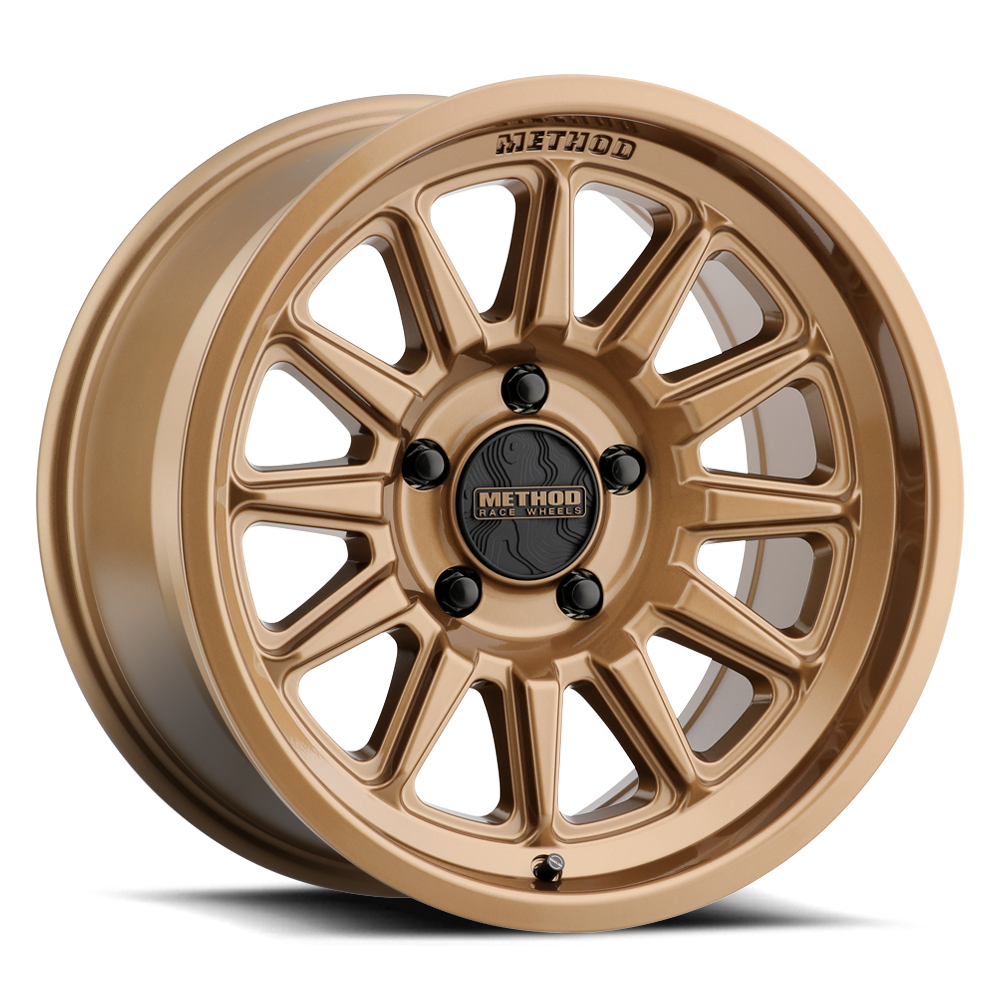

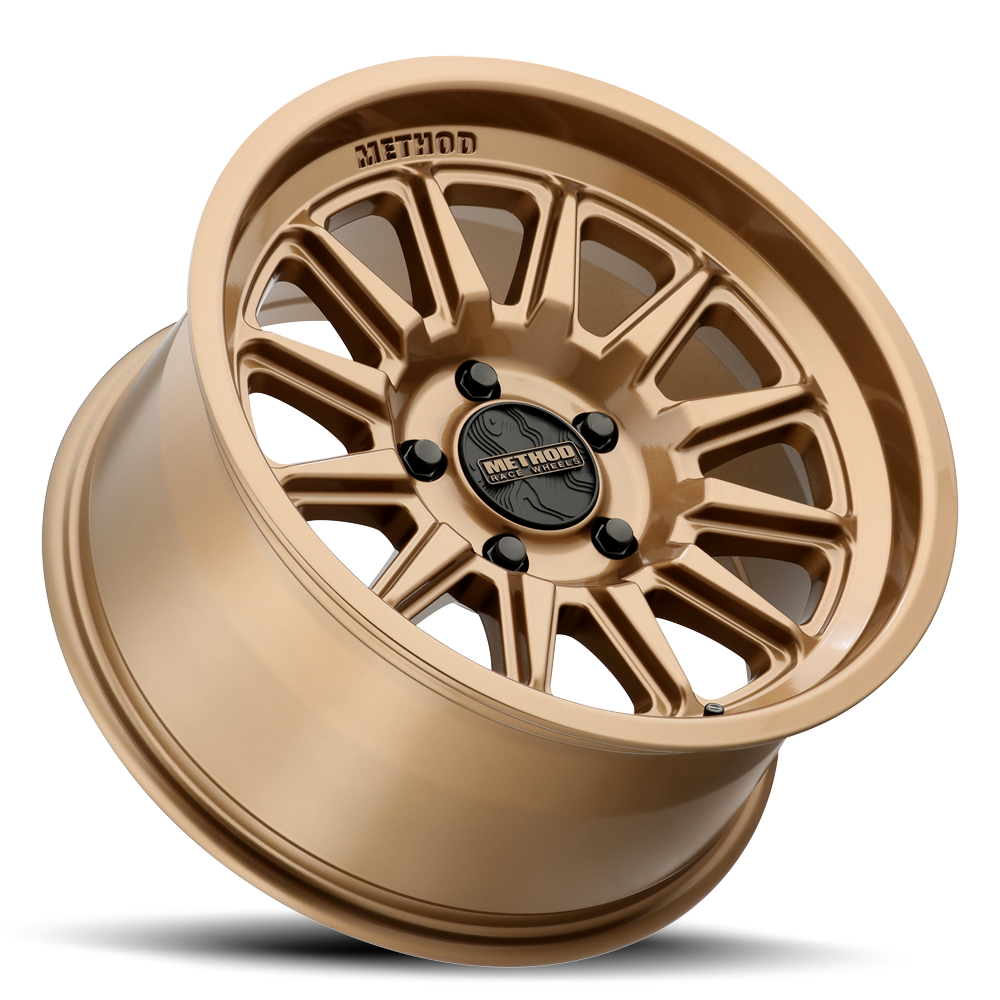

Method Race Wheels Wheel, MR323, 17 Inch Diameter X 9 Inch Width, 5 X 114.3 Millimeter/ 5 X 4.50 Inch Bolt Pattern – MR323790121538N
$211.30
Method Race Wheels Wheel, MR323 – MR323790121538N
Description
Wheel; MR323; 17 Inch Diameter x 9 Inch Width; 5 x 114.3 Millimeter/ 5 x 4.50 Inch Bolt Pattern; -38 Millimeter Offset; 3.47 Inch Backspacing; 60 Degree Conical Seat Lug; 83.00 Millimeter Center Bore; Gloss Bronze; 2650 Pound Load Capacity; Compatible With TPMS (Tire Pressure Monitoring System); 40 Inch Max Tire Diameter; Single
Attributes:
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 17
- Width: 9
- Offset: -38
- Backspacing: 3.47
- Finish: Painted Gloss
- Color: Bronze
- Material: Aluminum
- Bolt Pattern Inch: 5×4.50
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5×114.3
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: No
- Center Bore: 83.00
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- With Inserts: No
- Load Capacity: 2650
- Size: 17×9
- Max Tire Diameter: 40
- Quantity: Single
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- Gloss Bronze Finish
- Constructed From Heat Treated Aluminum
- Compatible With Tire Pressure Monitoring System
- Superior Alloy That Is Both Stronger And Lighter Than Conventional Manufacturing Processes
- Limited Lifetime Structural And 2 Year Finish Warranty
About Product:
All proprietary designed Method beadlock rings are forged. They start from a solid block of 6061 billet aluminum being shaped by extreme pressure, then heat-treated to a Tó standard for ultimate tensile strength. This process produces a superior alloy that is both stronger and lighter than conventional manufacturing processes.
Additional information
| Weight | 33.67 lbs |
|---|---|
| Dimensions | 20.23 × 20.23 × 12.44 in |
| Brand | METHOD RACE |
| Manufacturer Part Number | MR323790121538N |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 147 vehicles.
