Mishimoto Fluid Cooler, For Transmission Fluid, 26 Inch Length X 10.94 Inch Height X 0.87 Inch Depth Core Dimension, 48 Row Cooler – MMTC-RAM-03SL
$685.36
Mishimoto Fluid Cooler, For Transmission Fluid – MMTC-RAM-03SL
Description

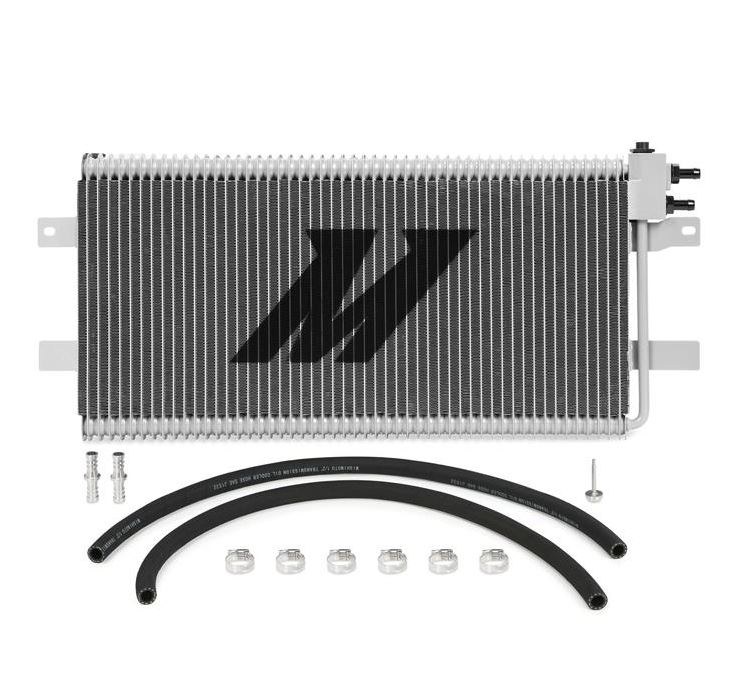

Fluid Cooler; For Transmission Fluid; 26 Inch Length x 10.94 Inch Height x 0.87 Inch Depth Core Dimension; 48 Row Cooler; 3/4 Inch -16 SAE ORB Fitting; With Two High-Pressure Transmission Cooler Lines/ One Removable Thermostat/ One Removable Thermostat Bypass/ Two CNC Machined Stainless Steel Barbed Fittings/ Two CNC Machined Aluminum 3/4 Inch -16 ORB To Hose Barb Fittings/ Six Worm Gear Clamps
Attributes:
- Condition: New
- Recommended Use: Transmission Fluid
- Construction: Stacked Plate
- Number Of Cooling Rows: 48
- Inlet Attachment: Female Threaded
- Inlet Size: -8 AN
- Outlet Attachment: Female Threaded
- Outlet Size: -8 AN
- Color: Gray
- Material: Aluminum
- With Fan: No
- Fan Control: No Fan
- Core Height (IN): 10.94 Inch
- Core Width (IN): 26 Inch
- Core Depth (IN): 0.87 Inch
- Finish: Powder Coated
- Fan CFM Rating: No Fan
- Fan Diameter: No Fan
- Fan Amp Draw: No Fan
- With Mounting Hardware: Yes
Features & Benefits:
- CNC-Machined, Stainless Steel Hose Barb Fittings
- 212 Percent Increase In Core Volume
- 244 Percent Increase In Fluid Capacity
- Stacked-Plate Design For Tough And Reliable Cooling
- Eliminates Corrosion-Prone Quick-Disconnect Fittings
- Comes With Fully Serviceable Thermostat For Fast Warm-Up In Cold Climates And Thermostat Bypass For Constant Cooling In Hot Climates
- Limited Lifetime Warranty
About Product:
There’s no greater enemy for a transmission than heat. Whether your 2003 to 2009 Dodge Ram 5.9L/6.7L Cummins is a dedicated tow vehicle, hardworking fleet truck, or a daily driver with a liking for the dragstrip, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a direct-fit transmission cooler to do just that. Our 2003 to 2009 Dodge Ram 5.9L/6.7L Cummins transmission cooler utilizes a stacked-plate core for durable and powerful cooling. With a massive 212 Percent greater core volume and 244 Percent increase in fluid capacity, this trans cooler is a huge improvement over the stock 2003 to 2009 Dodge Ram 5.9L / 6.7L Cummins transmission cooler. The Mishimoto transmission cooler is not only larger than the stock cooler but more reliable too. When the stock cooler’s thermostat fails, it fails closed, bypassing the cooler and returning hot fluid to the transmission. Mishimoto has solved this common issue by making the thermostat in our 2003 to 2009 Dodge Ram Cummins transmission cooler fully serviceable and easily bypassed for constant cooling. A port located at the top of the cooler provides easy access to the thermostat for servicing in just a few minutes. Replacement thermostats can be purchased individually if needed; no more replacing the entire cooler if the thermostat fails. Owners in cold climates can still enjoy the fast warmup times that the thermostat provides, while owners in hot climates can choose to bypass the thermostat by replacing it with the supplied stainless steel bypass plug. To make this cooler even easier to install and service, Mishimoto saves you the hassle of removing seized fittings. The provided CNC-machined, stainless steel hose barb fittings let you cut to the chase, literally. These fittings and the supplied transmission cooler hose allow you to remove the quick-disconnect fittings and connect the stock soft-line to the Mishimoto cooler.
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 33 × 15 × 8.5 in |
| Brand | MISHIMOTO |
| Manufacturer Part Number | MMTC-RAM-03SL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 393 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
