Name: Mishimoto Radiator, 14.7 Inch Length X 10.16 Inch Height X 3.52 Inch Depth Overall Dimensions - MMRAD-UNI-DRGBK
Brand: MISHIMOTO
SKU: KYS-M1NADUNIDRGBK
Price: 527.59 USD
Availability: InStock

Description

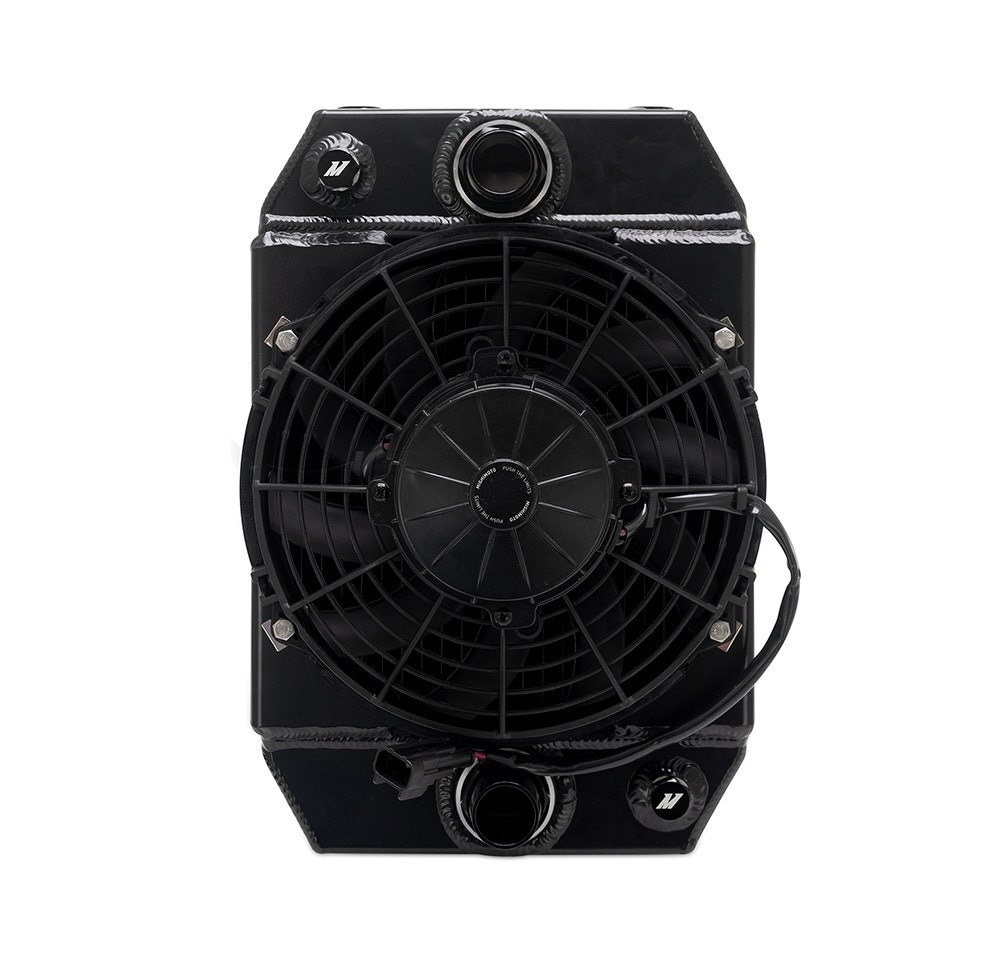

Radiator; 14.7 Inch Length x 10.16 Inch Height x 3.52 Inch Depth Overall Dimensions; 9.37 Inch Length x 9.37 Inch Height x 2.68 Inch Depth Core Dimension; Dual Core Rows; Powder Coated; Black; Aluminum; -16 ORB Inlet/ Outlet; With Two -16 ORB To 1-1/4 Inch Hose Barb Fittings/ Two Magnetic Slotted Drain Plugs/ 9 Inch HD Fan/ Three Universal Mounting Brackets/ Mounting Hardware

Attributes:

Flow Direction: Down Flow
Overall Length (IN): 14.7 Inch
Overall Height (IN): 10.16 Inch
Overall Depth (IN): 3.52 Inch
Core Rows: Dual
Core Material: Aluminum
Inlet Hose Location: Driver Side
Inlet Size (IN): -16 AN O-ring
Outlet Hose Location: Passenger Side
Outlet Size (IN): -16 AN O-ring
Finish: Powder Coated
Color: Black
Core Length (IN): 9.37 Inch
Core Height (IN): 9.37 Inch
Core Depth (IN): 2.68 Inch
Tank Material: Aluminum
Includes Mounting Hardware: Yes

Features & Benefits:

With Two 1-1/4 Inch Barbed Adapters For Slip-On Hoses

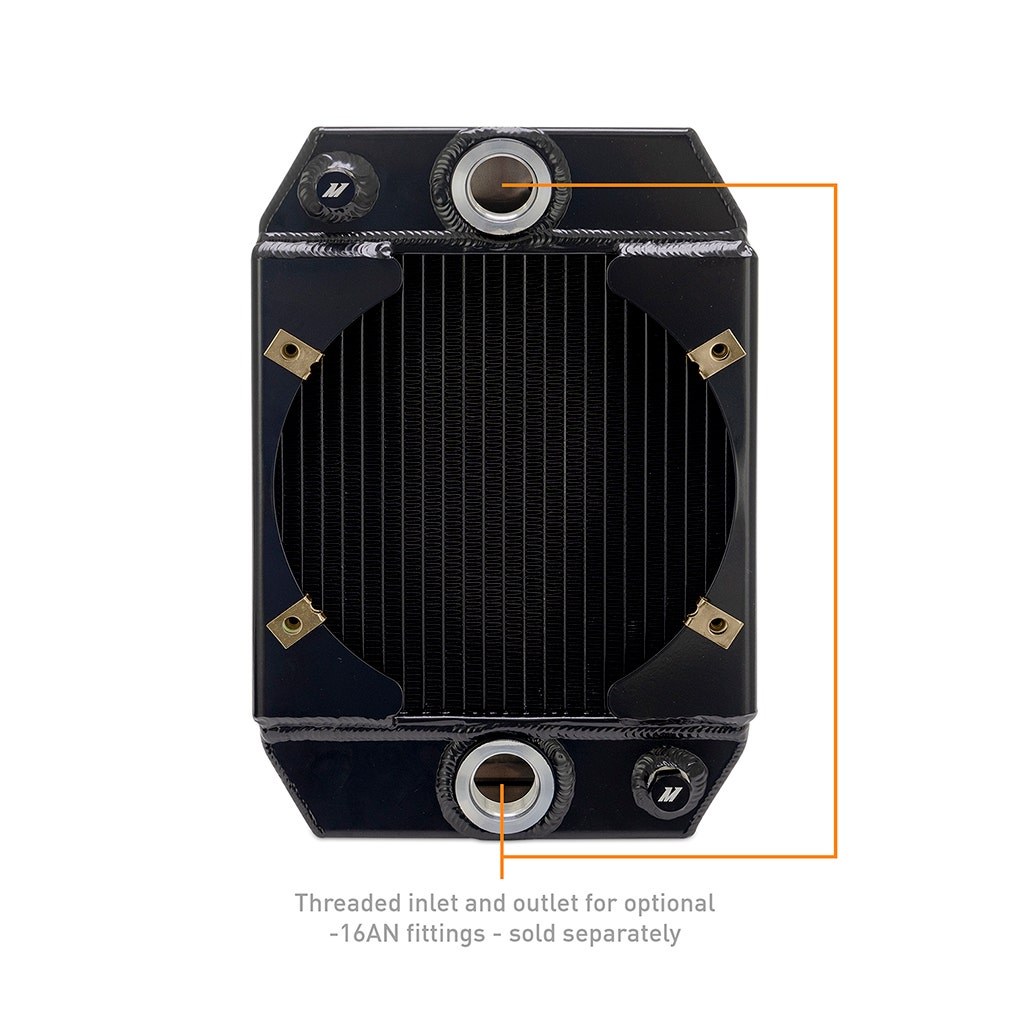

Threaded 16 ORB Inlet And Outlet Accommodate A Multitude Of -16 AN Fittings (Sold Separately)

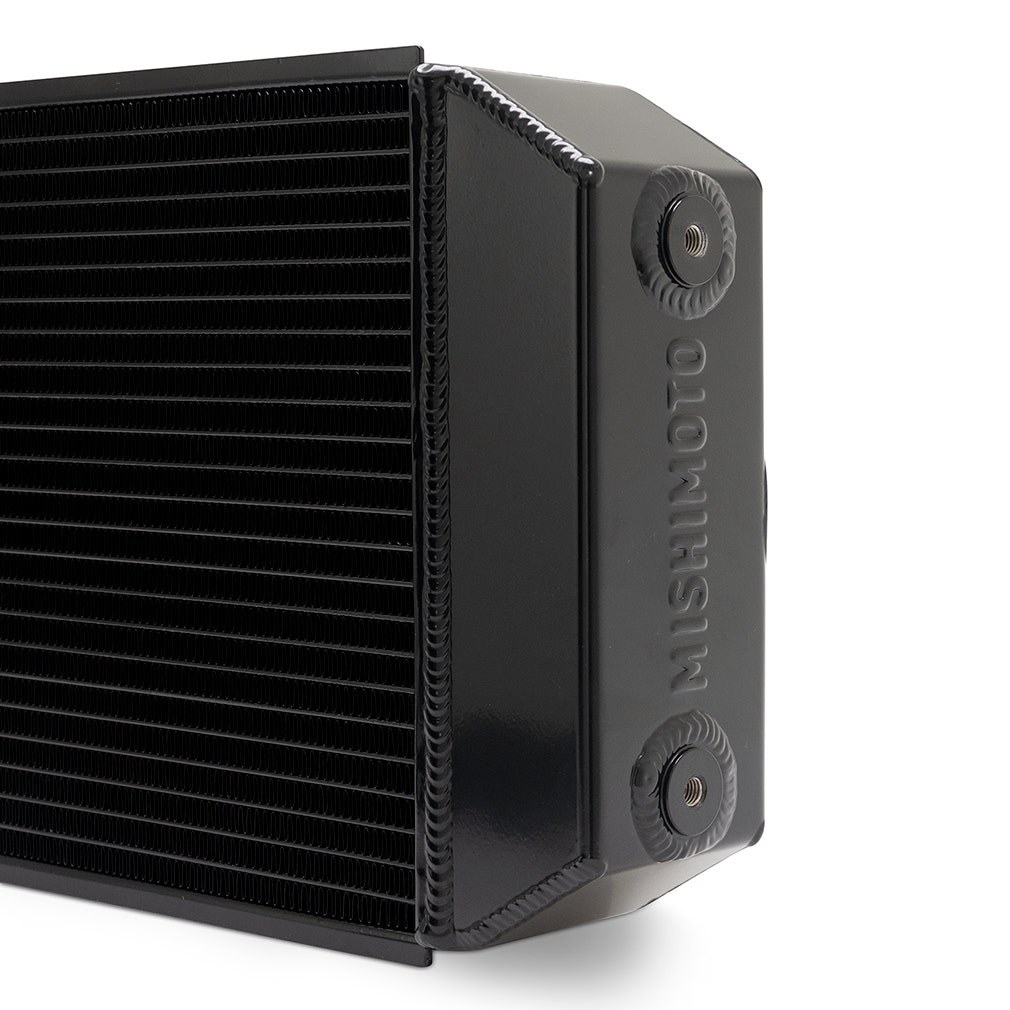

Magnetic Drain Plugs On Both End Tanks Ensure Easy Draining, No Matter The Mounting Setup
Massive 2.7 Inch (68 Millimeter) Thick Two-Row Core For Superior Heat Rejection

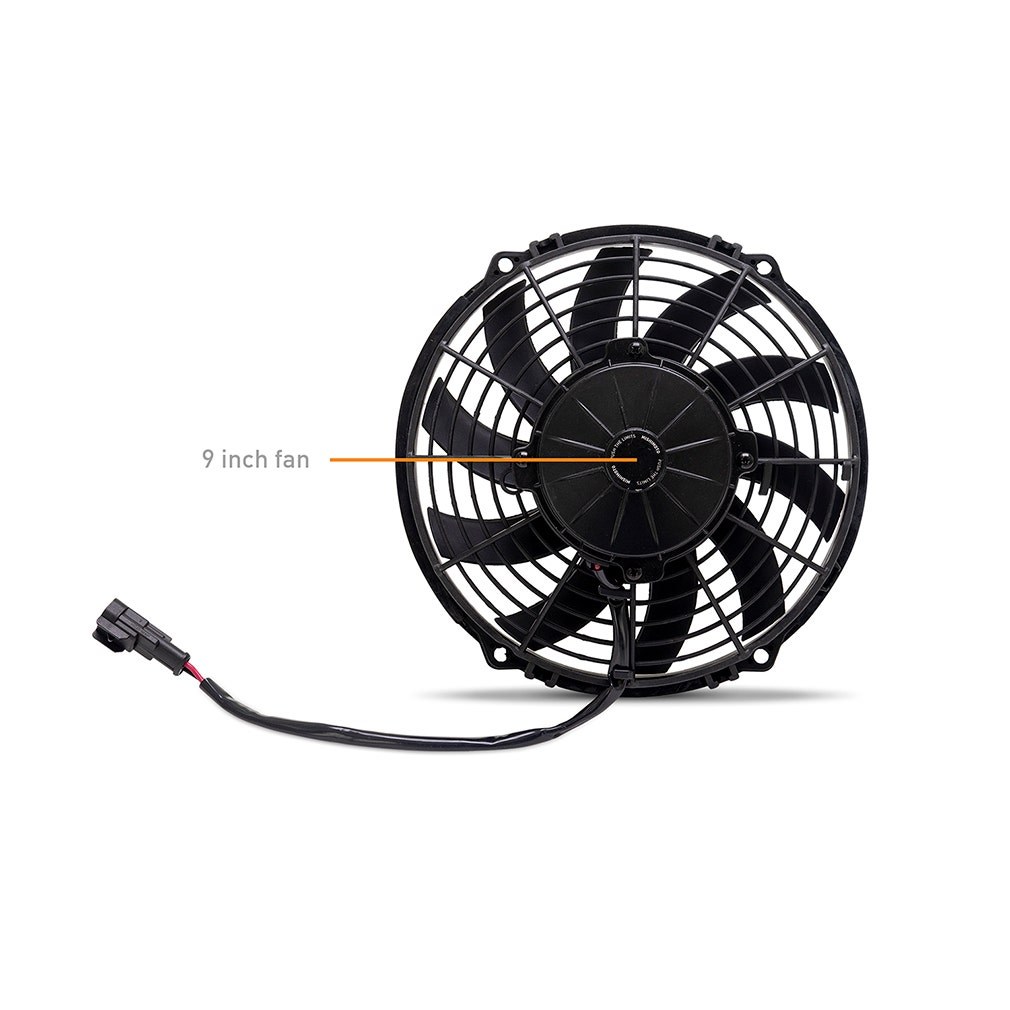

9 Inch Fan Draws 700 CFM, Complementing Our Optimized Core

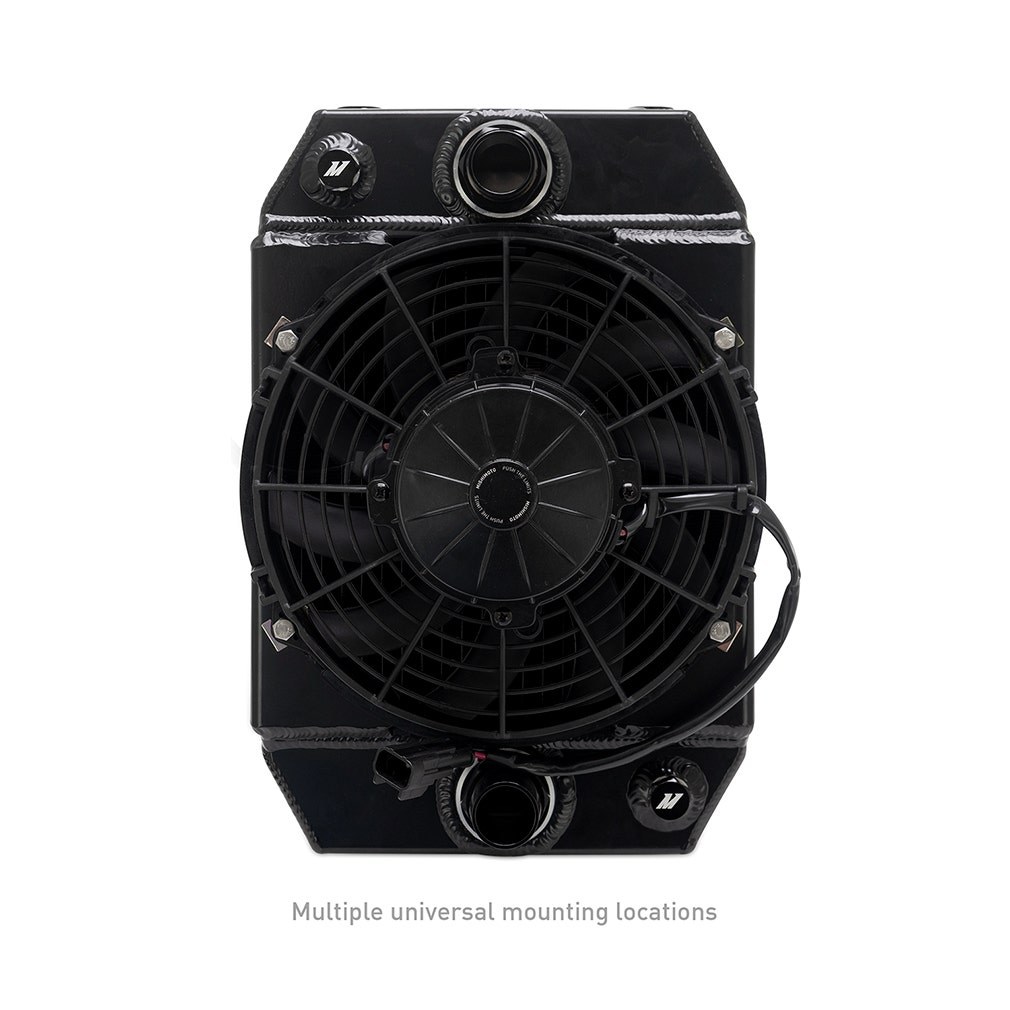

Multiple Mounting Points Available To Fit Any Custom Build
With 1/8 Inch (3 Millimeter) Thick Powder Coated Steel Mounting Brackets

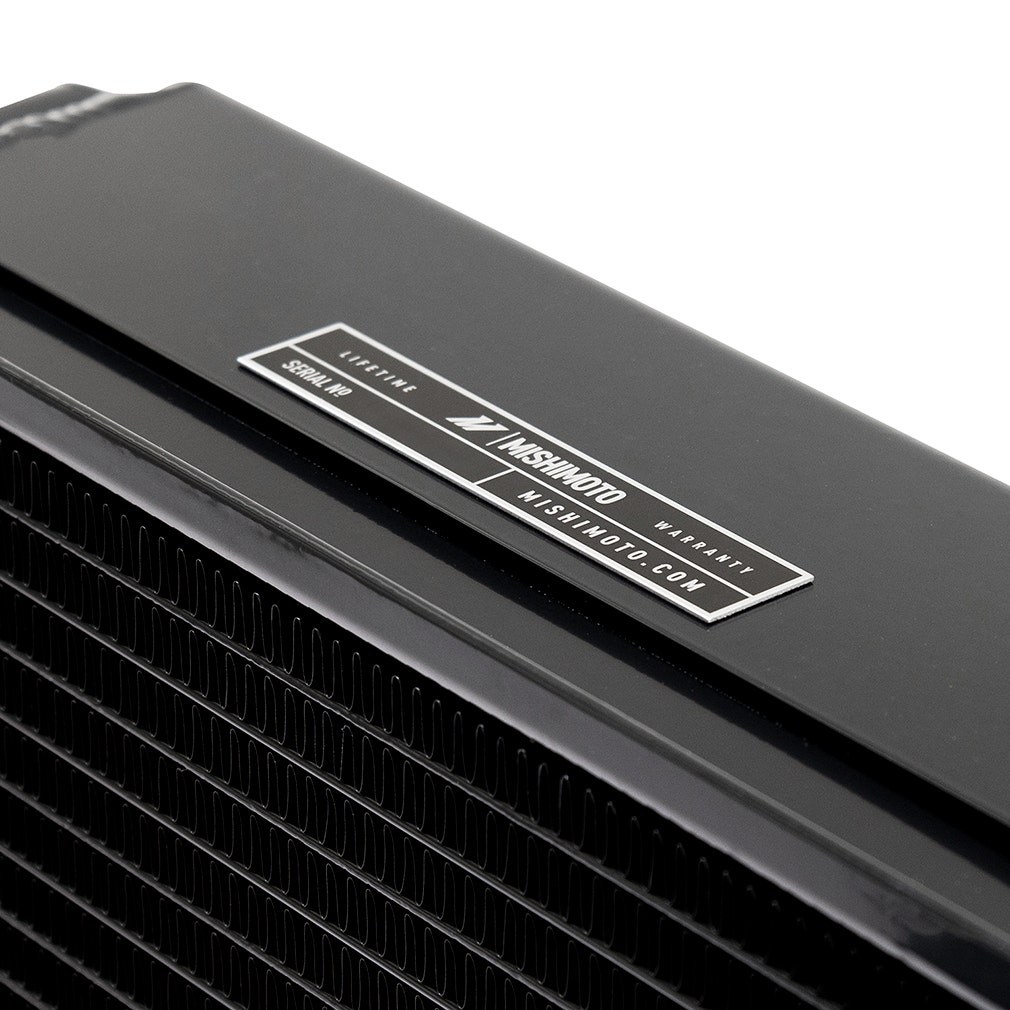

Limited Lifetime Warranty

About Product:
Upgrade to the Mishimoto radiator to maximize cooling efficiency, durability, and performance for your drag car, ensuring you stay ahead of the competition with superior cooling capabilities and robust design. The Mishimoto Universal Drag Race Performance Aluminum Radiator is engineered for peak performance on the track. It features convenient threaded adapters for easy hose installation, along with threaded inlet and outlet options for optional -16AN fittings, ensuring flexibility in setup. Magnetic drain plugs enhance durability and maintenance ease, while multiple mounting points and universal brackets cater to various installation preferences. Backed by Mishimoto’s Lifetime Warranty, this radiator guarantees reliability and peace of mind.
