Mishimoto Radiator, 22 Inch Length X 48 Inch Height Overall Dimension – MMRAD-F2D-11S
$1,613.73

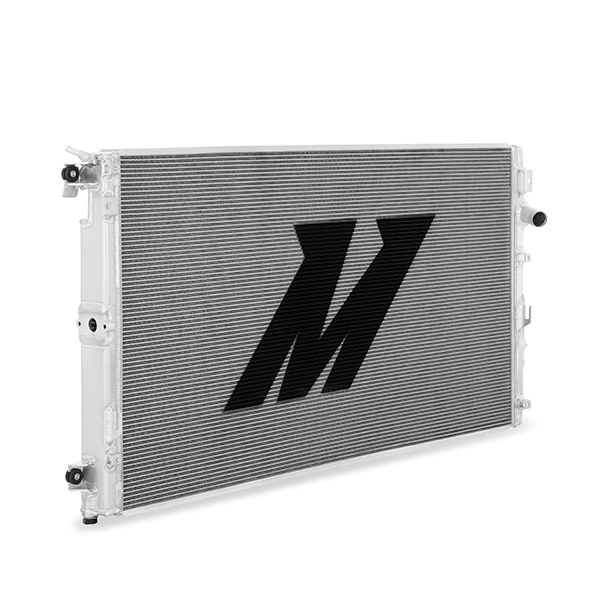

Mishimoto Radiator – MMRAD-F2D-11S
Description
Radiator; 22 Inch Length x 48 Inch Height Overall Dimension; 21 Inch Length x 39.4 Inch Height x 1.96 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core; Single; With Magnetic Drain Plug/ Four Bolts/ Two Tree Clips
Attributes:
- Flow Direction: Crossflow
- Overall Length (IN): 22 Inch
- Overall Height (IN): 48 Inch
- Overall Depth (IN): OEM
- Core Rows: Dual
- Core Material: Aluminum
- Finish: Polished
- Color: Silver
- Core Length (IN): 21 Inch
- Core Height (IN): 39.4 Inch
- Core Depth (IN): 1.96 Inch
- Tank Material: Aluminum
- With Radiator Cap: No
- Includes Fittings: Yes
- Includes Mounting Hardware: Yes
Features & Benefits:
- Reduces Coolant Temperatures By Up To 7 Degree Fahrenheit
- Reduces Charge Air Cooler Temperatures By Up To 6 Degree Fahrenheit
- Reduces Transmission, Fuel And EGR Temperatures

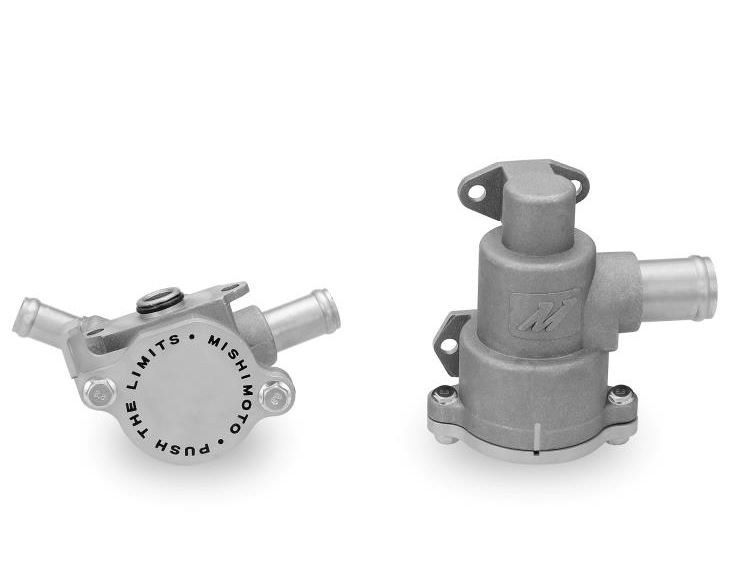

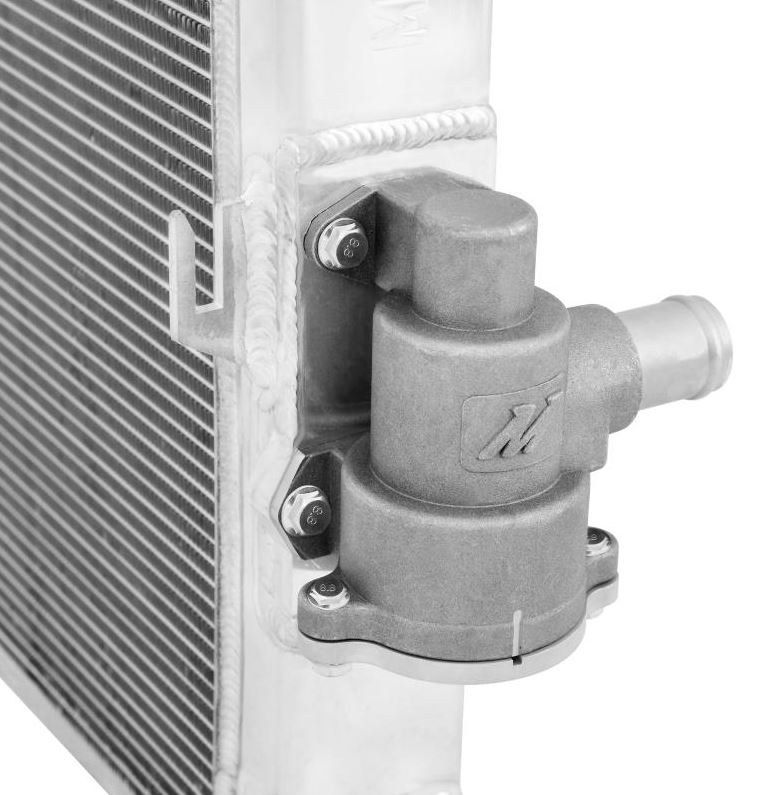

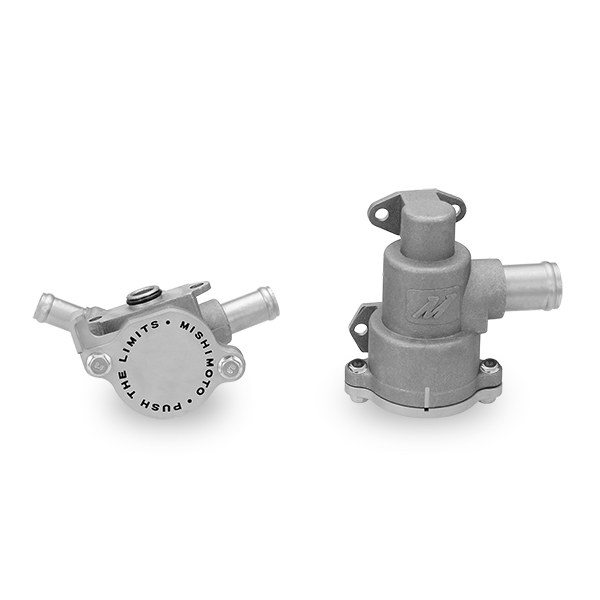

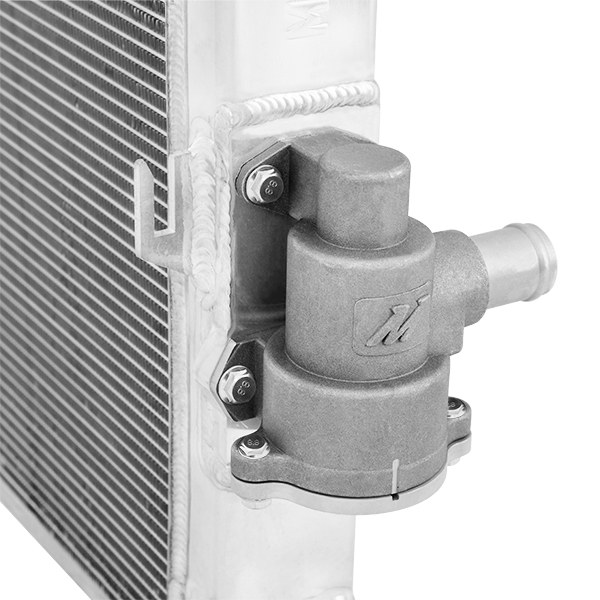

- Removable Thermostat Housings
- 27 Percent Increase In Fin Area
- 19 Percent Thicker Core Than Factory
- 16 Percent Increase In Cooling Tube Surface Area
- 100 Percent Brazed Aluminum Core
- TIG-Welded To Perfection
- Limited Lifetime Warranty
About Product:
Upgrade your truck with the Mishimoto 6.7 Powerstroke Aluminum Secondary Radiator to keep your truck on the road and running cool. The 6.7L Powerstroke has two separate cooling systems, with this radiator cooling the secondary system which maintains ideal Temperatures for the transmission cooler, EGR cooler, fuel cooler, and most importantly, the liquid-to-air charge air cooler. This 6.7 Powerstroke Secondary Radiator is constructed from high-quality aircraft-grade aluminum with a 100 Percent brazed aluminum core 19 Percent thicker than factory. During testing, we saw at coolant Temperature reduction of at least 7 Degree Fahrenheit and a 7 Degree reduction in charge air Temperatures. Our 6.7 Powerstroke aluminum secondary radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your 6.7 Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7 Powerstroke aluminum radiator retains factory fitment, fitting both the factory and Mishimoto Primary 6.7L Radiator, for an easy installation process.
Additional information
| Weight | 45 lbs |
|---|---|
| Dimensions | 48 × 28 × 8 in |
| Brand | MISHIMOTO |
| Manufacturer Part Number | MMRAD-F2D-11S |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 528 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
