Mishimoto Radiator, 31.6 Inch Length X 5.4 Inch Width X 28.9 Inch Height Overall Dimensions – MMRAD-TAC-24
$926.34
Mishimoto Radiator – MMRAD-TAC-24
Description
Radiator; 31.6 Inch Length x 5.4 Inch Width x 28.9 Inch Height Overall Dimensions; 24.4 Inch Length x 27.8 Inch Height x 1.6 Inch Thickness Core Dimension; 7 Rows; Aluminum; 1.3 Inch Inlet x 1.3 Inch Outlet; With Transmission Cooler; With Magnetic Drain Plug
Attributes:
- Flow Direction: Cross Flow
- Overall Length (IN): 31-9/16 Inch
- Overall Height (IN): 28-7/8 Inch
- Overall Depth (IN): 5-3/8 Inch
- Core Rows: Single
- Core Material: Aluminum
- Inlet Hose Location: Upper Driver Side
- Inlet Size (IN): 1-1/4 Inch
- Outlet Hose Location: Lower Passenger Side
- Outlet Size (IN): 1-1/4 Inch
- Finish: Natural
- Color: Black/ Silver
- Core Length (IN): 24-3/8 Inch
- Core Height (IN): 27-3/4 Inch
- Core Depth (IN): 1-9/16 Inch
- Tank Material: Aluminum
- With Radiator Cap: No
- With Transmission Cooler: Yes
- With Engine Oil Cooler: No
- Includes Fittings: Yes
- Includes Mounting Hardware: Yes
Features & Benefits:
- TIG Welded Aluminum Construction For Maximum Durability And Reliability

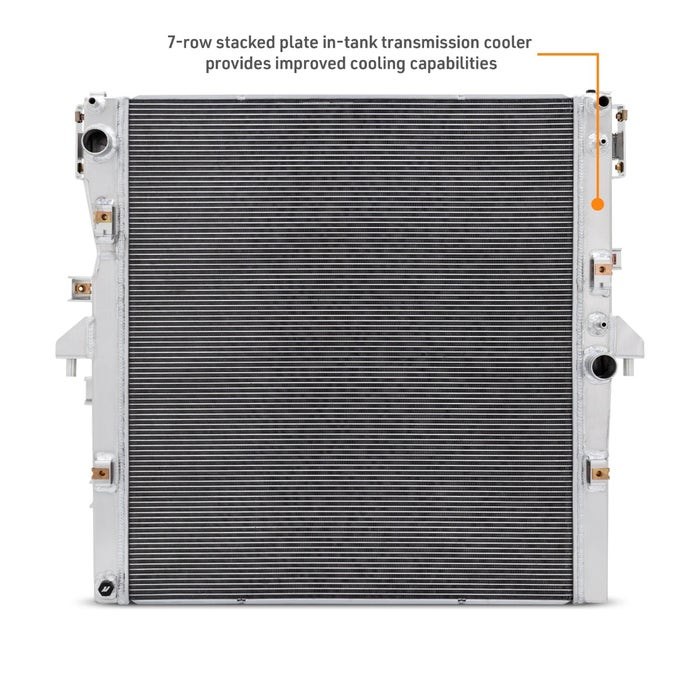

- Oversized 7 Row In Tank Transmission Cooler For Improved Towing And Off Roading Capability
- 60 Percent Increased Core Volume Over Stock Offers More Efficient Cooling In Demanding Conditions

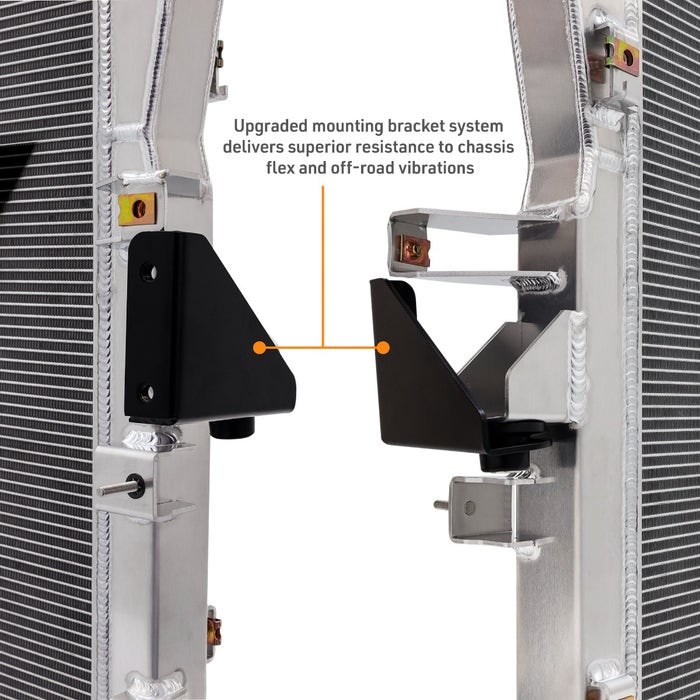

- Durable Aluminum Side Brackets Offer Secure And Dependable Mounting
- Replaces Brittle Plastic Stock Components With Robust Aluminum To Prevent Cracks And Leaks

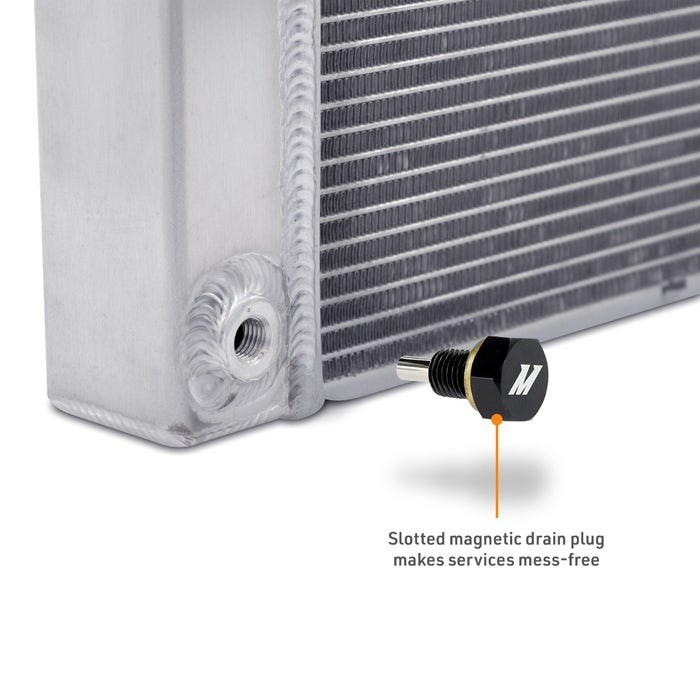

- Features Magnetic Drain Plug To Capture Debris And Fragments In Your Cooling System
- Features 1.3 Bar High Pressure Radiator Cap To Raise Coolant Boiling Point And Increase Cooling System Efficiency
- Limited Lifetime Warranty
About Product:
The Mishimoto Performance Aluminum Radiator replaces the stock plastic unit with a fully TIG-welded aluminum design that eliminates weak points and provides reliable performance under tough conditions. A uniquely engineered mounting bracket system, proven through internal vibration testing, delivers exceptional resistance to chassis flex and off-road abuse. Internal strutted tubes strengthen the core to prevent fatigue over time while a 46 percent increase in core volume and 23 percent greater fluid capacity improve heat dissipation and overall cooling efficiency. The built-in 7-row stacked plate transmission cooler outperforms the stock tube-style design, providing superior control of transmission temperatures when towing, off-roading, or running heavier aftermarket parts. Every detail is crafted for long-term reliability. The increased coolant capacity improves thermal stability, while the magnetic drain plug captures debris to help protect the cooling system. Whether you’re heading into the mountains or navigating daily traffic, this radiator ensures consistent performance and lasting durability.
Additional information
| Weight | 53 lbs |
|---|---|
| Dimensions | 33.26 × 30.39 × 6.88 in |
| Brand | MISHIMOTO |
| Manufacturer Part Number | MMRAD-TAC-24 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 39 vehicles.
