Name: Mishimoto Radiator, 31.85 Inch Length X 8.55 Inch Height X 2.67 Inch Depth Overall Dimensions - MMRAD-HE-02
Brand: MISHIMOTO
SKU: KYS-M1NMMRADHE02
Price: 323.73 USD
Availability: InStock

Description

Radiator; 31.85 Inch Length x 8.55 Inch Height x 2.67 Inch Depth Overall Dimensions; 25.98 Inch Length x 7.81 Inch Height x 2.04 Inch Depth Core Dimension; Three Core Rows; Aluminum; 3/4 Inch Inlet x 3/4 Inch Outlet

Attributes:

Overall Length (IN): 31.85 Inch
Overall Height (IN): 8.55 Inch
Overall Depth (IN): 2.67 Inch
Core Rows: Three
Core Material: Aluminum
Inlet Size (IN): 3/4 Inch
Outlet Size (IN): 3/4 Inch
Color: Silver
Core Length (IN): 25.98 Inch
Core Height (IN): 7.81 Inch
Core Depth (IN): 2.04 Inch
Tank Material: Aluminum

Features & Benefits:

Universal Heat Exchanger For Use With Air To Water Intercooler Systems
Provides Effective Cooling Support For Charge Air Cooling Systems Up To 500 Horsepower
Strategically Designed 3 Row Core Offers Maximum Flow And Heat Dissipation
All Aluminum Construction Yields Superior Strength And Durability

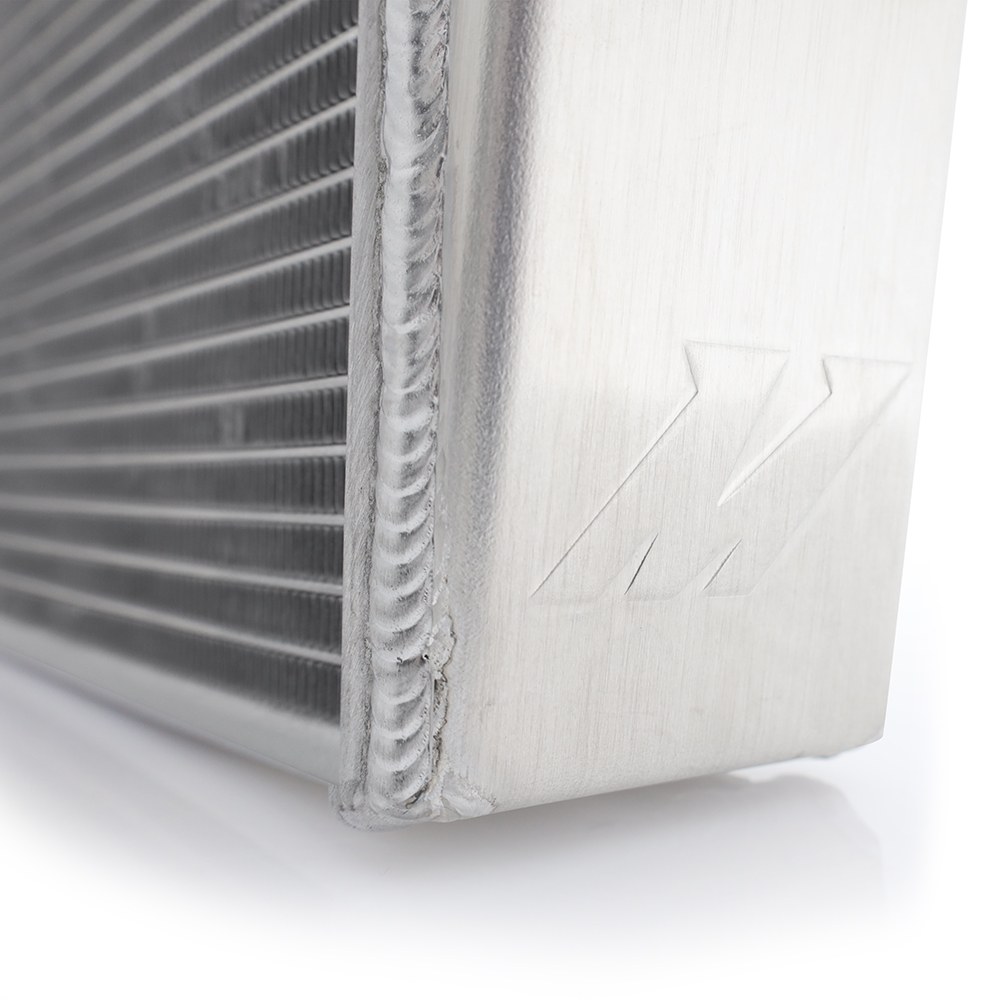

Precision TIG Welded End Tanks For Improved Durability And Pressure Tolerance
Robust 1/2 Inch Thick Universal Mounting Bosses On Each End Tank
Bead Rolled 3/4 Inch Inlet And Outlet Provide A Leak-Free Connection
Multiple Sizes To Choose From To Fit The Needs Of Your Project
Limited Lifetime Warranty

About Product:
There are some aspects of a build where corners can be cut, but your charge-air cooling system shouldn’t be one of them. Big turbochargers make big power, and big power often results in high temperatures. Within the last decade, we’ve seen many turbocharged vehicles transitioning to liquid-to-air intercooling systems. The air-to-water heat exchanger plays a vital role in these systems by reducing coolant temperatures before entering the intercooler. If you’re planning a forced induction build and need a charge-air cooling solution, Mishimoto’s new air-to-water heat exchangers are an ideal choice. Mishimoto has designed four universal heat exchangers to support any build up to 1,500 Horsepower, each precisely engineered for optimal flow and heat dissipation to meet your horsepower goals. Our heat exchanger options include multiple core sizes in single or dual pass configurations and your choice of two or three-row cores. In addition, the Mishimoto Universal Air-to-Water Heat Exchangers feature all-aluminum TIG-welded construction, making them extremely robust. For ease of installation, we’ve included half-inch thick threaded mounting bosses on each end tank. Mishimoto offers a complete line of air-to-water products along with our selection of air-to-water heat exchangers , making us your one-stop shop for building the perfect air-to-water intercooler system. As with all our products, this Mishimoto Universal Air-to-Water Heat Exchanger includes the signature Mishimoto Lifetime Warranty.
