Mishimoto Transmission Oil Cooler Bypass Valve, 2 Inlet/ 2 Outlet Port, M20 X 1.5 Inlet, 3.54 Inch Length X 1.3 Inch Width – MMTC-RAM2-TBVFF
$139.69
Mishimoto Transmission Oil Cooler Bypass Valve – MMTC-RAM2-TBVFF
Description
Transmission Oil Cooler Bypass Valve; 2 Inlet/ 2 Outlet Port; M20 x 1.5 Inlet; 3.54 Inch Length x 1.3 Inch Width; With Two O-Rings/ Two Dowty Seals/ Mounting Hardware
Attributes:
- Number Of Ports: 2 Inlet/ 2 Outlet Port
- Port Size: M20 x 1.5 Inlet
- Dimension: 3.54 Inch Length x 1.3 Inch Width
- Includes: With Two O-Rings/ Two Dowty Seals/ Mounting Hardware
Features & Benefits:
- Helps Extend Transmission Life And Prevents Overheating

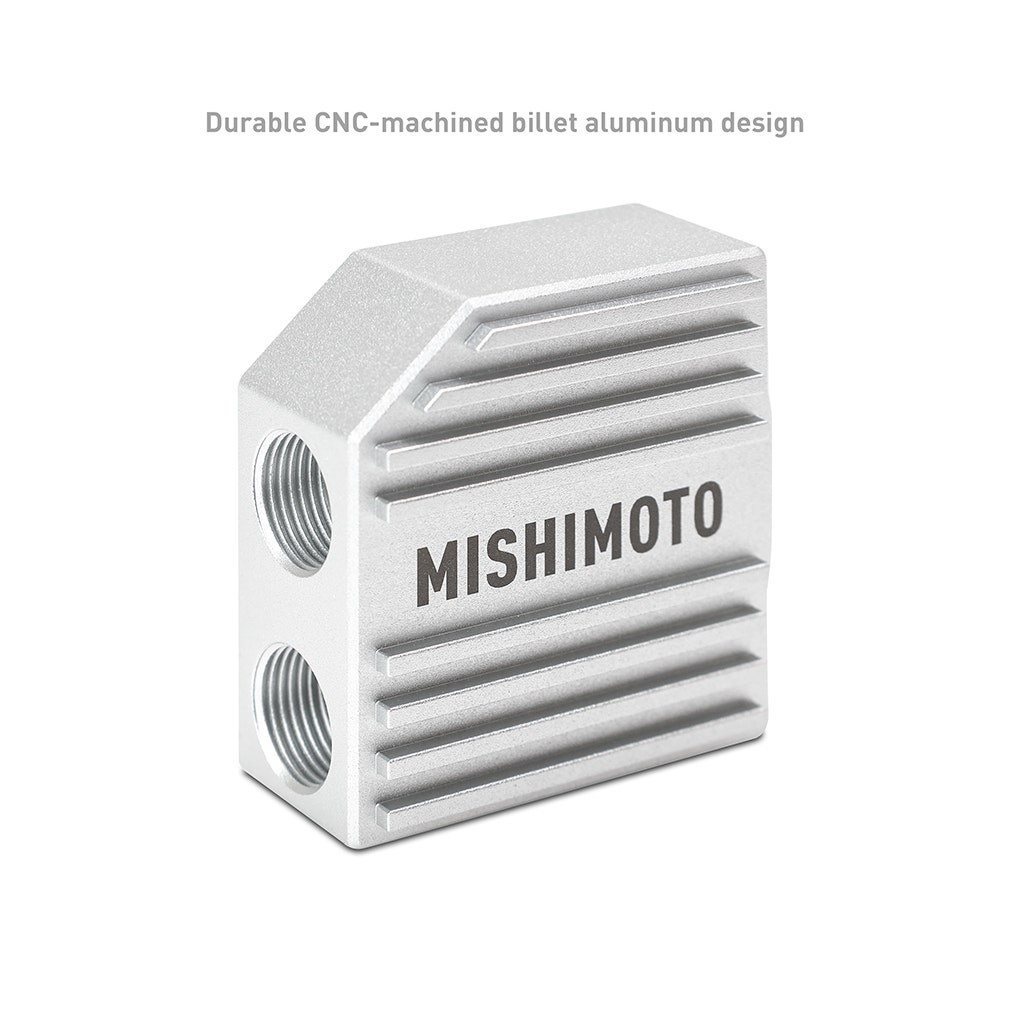

- Durable CNC-Machined Billet Aluminum Design

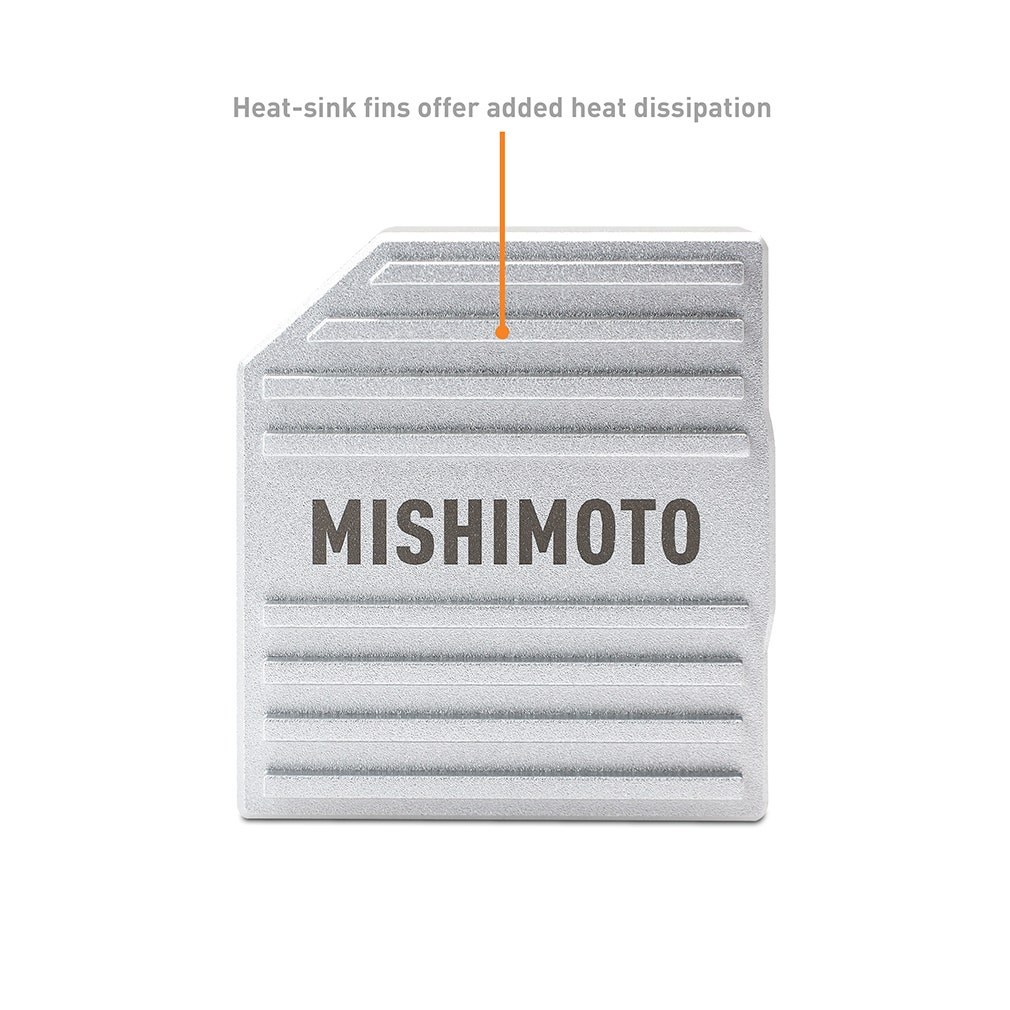

- Integrated Heat-Sink Fins Provide Unique Styling And Added Heat Dissipation
- Easy To Install
- Limited Lifetime Warranty
About Product:
It’s responsible for transmitting large amounts of torque from your 6.7 Liter Cummins powerplant, and that torque generates heat. If that heat isn’t dissipated, it can destroy your transmission. The transmission cooler does a good job of keeping trans fluid temperatures in check, but only if the fluid can reach it. The stock cooling system of the Aisin utilizes an in-line thermal bypass valve that controls fluid flow to the transmission cooler. The purpose of this valve is to prevent transmission fluid from flowing to the cooler until it reaches operating temperature. The thermostat inside this valve is prone to failure, however, and when that happens, the fluid never flows to the cooler, and the transmission can overheat. Our CNC-machined aluminum thermal bypass valve not only looks better than the stock unit, but it performs better too. This Mishimoto thermal bypass valve eliminates the internal thermostat, providing full fluid flow to the transmission cooler in all running conditions. This setup is ideal for owners in warm climates, those performing heavy towing, and trucks needing the best possible cooling efficiency for their transmission. The Mishimoto full-flow thermal bypass valve features strategically machined internal passages, providing improved flow over the stock valve for more effective cooling. In addition, cooling fins machined into the valve body add even more heat dissipation.
Additional information
| Weight | 0.33 lbs |
|---|---|
| Dimensions | 5.5 × 4 × 2.5 in |
| Brand | MISHIMOTO |
| Manufacturer Part Number | MMTC-RAM2-TBVFF |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 406 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
