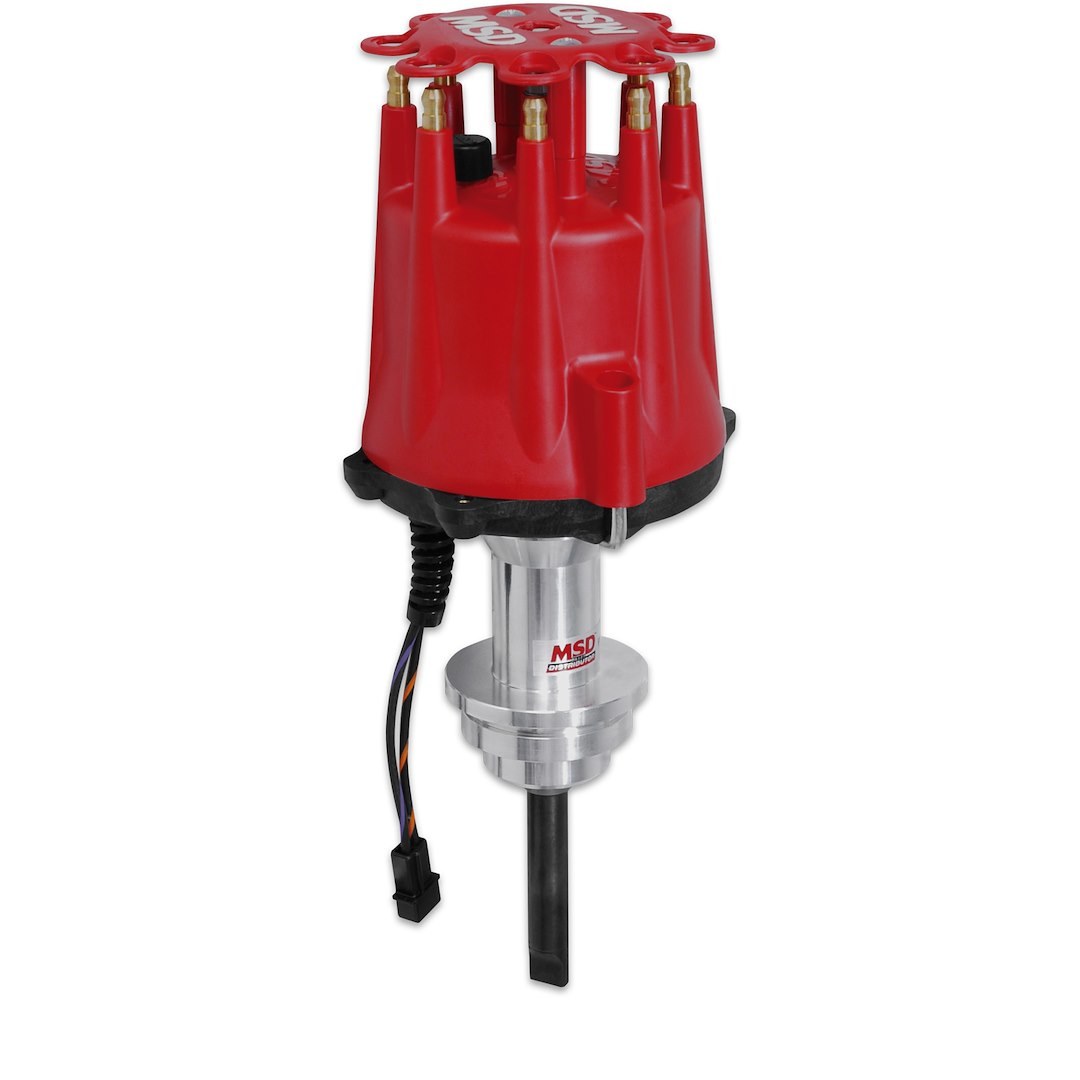

MSD Ignition Distributor, Billet, For Use with Chrysler Small Block 273/318/340/360 Cubic Inch Engines, Without Ignition Control Module – 8534
$442.31
MSD Ignition Distributor, Billet – 8534
Description
Distributor; Billet; For Use With Chrysler Small Block 273/318/340/360 Cubic Inch Engines; Without Ignition Control Module; Magnetic Trigger; Mechanical Advance; Red Cap With HEI/Male Posts
Attributes:
- Condition: New
- Finish: Polished Shaft
- Recommended Use: Street/ Strip
- Spark Advance Type: Mechanical Advance
- Spark Distribution Type: Magnetic Trigger
- Drive Gear Type: Without Gear
- With Ignition Module: No
- With Tach Drive: No
- Includes Cap And Rotor: Yes
- Cap Color: Red
- Cap Type: HEI/ Male Posts
- Coil In Cap: No
Features & Benefits:
- CNC Machined Billet Aluminum Housing And DuPont Rynite Base
- Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
- Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing, Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
- Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
- Advance Weight Pins Are Staked And TIG Welded To The Plate, Nylon Pads Ensure Smooth Operation Of The Advance Weights
- Supplied With An HEI Style Distributor Cap And Rotor (Accepts Cap-A-Dapts)
- Limited 1 Year Warranty
About Product:
Remove the MSD cap and race rotor and you’ll find easy access to the adjustable mechanical advance assembly. This advance is designed for accuracy and strength with TIG welded weight pins, nylon pads for smooth movement of the weights and a QPQ coating for friction reduction. Different advance springs and stop bushings are supplied so you can custom tailor a timing curve to fit your Chrysler’s needs. Supporting the advance assembly is a hardened, polished steel shaft. Two ball bearing guides are used to support the shaft producing incredible stability. Precision paddles of a zinc plated reluctor pass a maintenance free magnetic pickup creating a trigger signal that tells the MSD to fire.
Additional information
| Weight | 5 lbs |
|---|---|

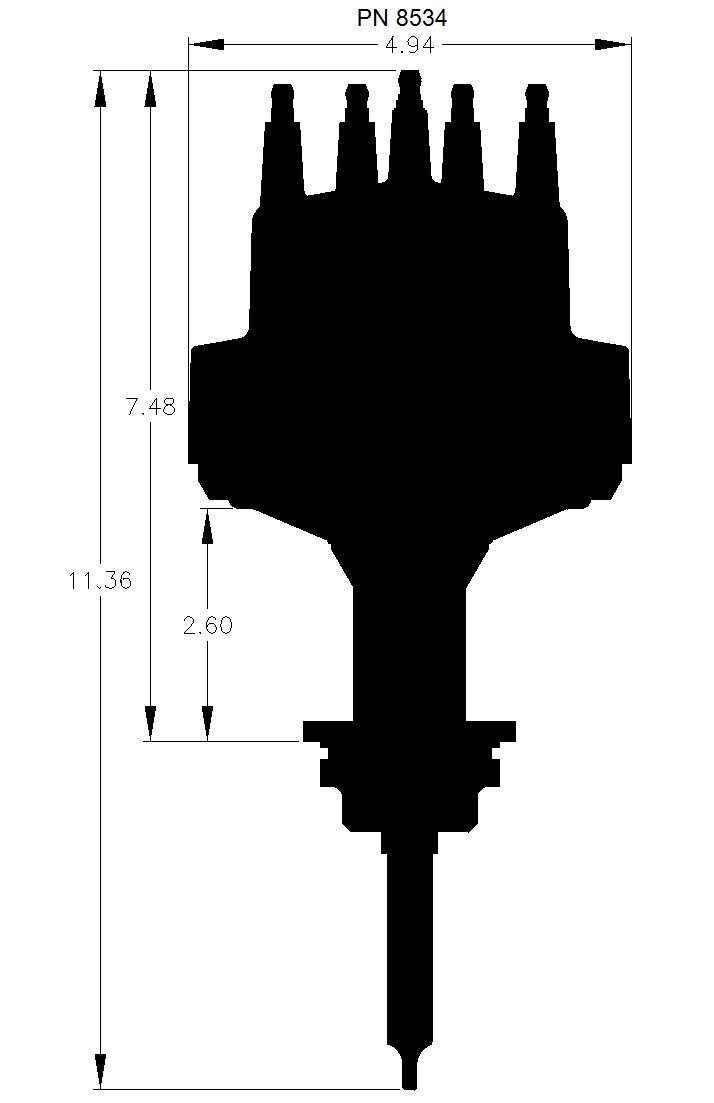

| Dimensions | 19.88 × 6.89 × 6.76 in |
| Brand | MSD CO. |
| Manufacturer Part Number | 8534 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 9,504 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
