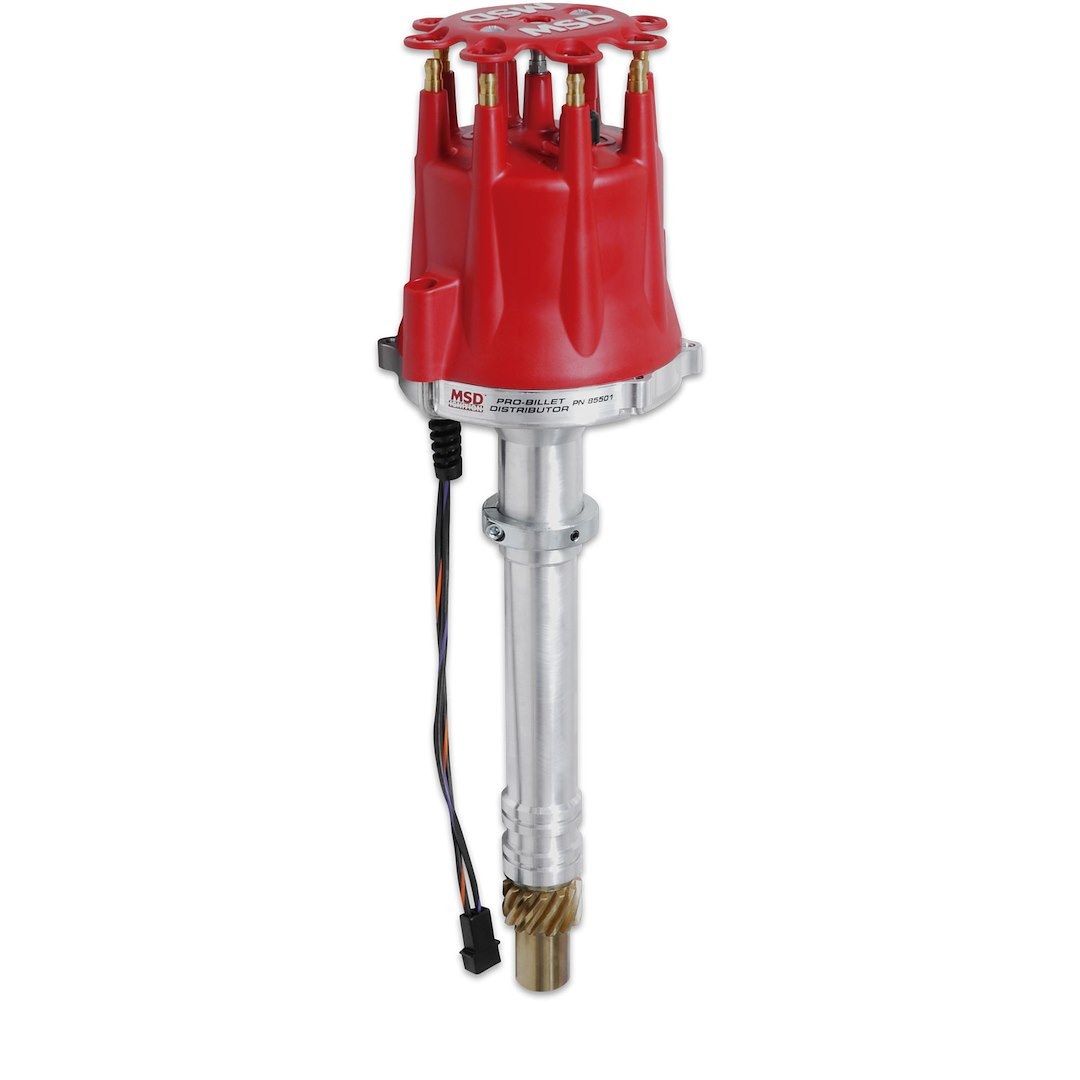

MSD Ignition Distributor, Pro-Billet, For Use with Chevy V8 Engines, Without Ignition Control Module, Magnetic Trigger, Locked Out Timing – 85501
$592.44
MSD Ignition Distributor, Pro-Billet, For Use with Chevy V8 Engines – 85501
Description
Distributor; Pro-Billet; For Use With Chevy V8 Engines; Without Ignition Control Module; Magnetic Trigger; Locked Out Timing; With Bronze Gear; Red Cap With HEI/Male Posts; Red
Attributes:
- Condition: New
- Finish: Polished Shaft
- Recommended Use: Strip
- Spark Advance Type: Locked
- Spark Distribution Type: Magnetic Trigger
- Drive Gear Type: Bronze Gear
- With Ignition Module: No
- With Tach Drive: No
- Includes Cap And Rotor: Yes
- Cap Color: Red
- Cap Type: HEI/ Male Posts
- Coil In Cap: No
Features & Benefits:
- Designed Primarily For Race Applications With No Mechanical Advance
- CNC Machined Billet Aluminum Housing And Billet Aluminum Base
- Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
- Adjustable Slip Collar Mounting Flange For Engines With Modified Deck Heights
- Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing
- Special Oil Tract Improves Lubrication To The Distributor And Cam Gear
- O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
- Limited 1 Year Warranty
About Product:
This strong, billet aluminum distributor is set up for engines that run locked out timing or an MSD timing computer. With no advance assembly, the rotor plate is welded directly to the oversized shaft. A sealed ball bearing guides the top of the shaft while an extra long sintered bushing stabilizes the lower portion. Trigger signals are produced via a high output magnetic pickup. This pickup is extremely accurate and never requires adjustment. Since this distributor is designed primarily for race engines, an oversized (+0.006 Inch) bronze gear is installed along with an adjustable slip collar for modified blocks, heads or intake manifolds.
Additional information
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 17.68 × 6.95 × 6.72 in |
| Brand | MSD CO. |
| Manufacturer Part Number | 85501 |
