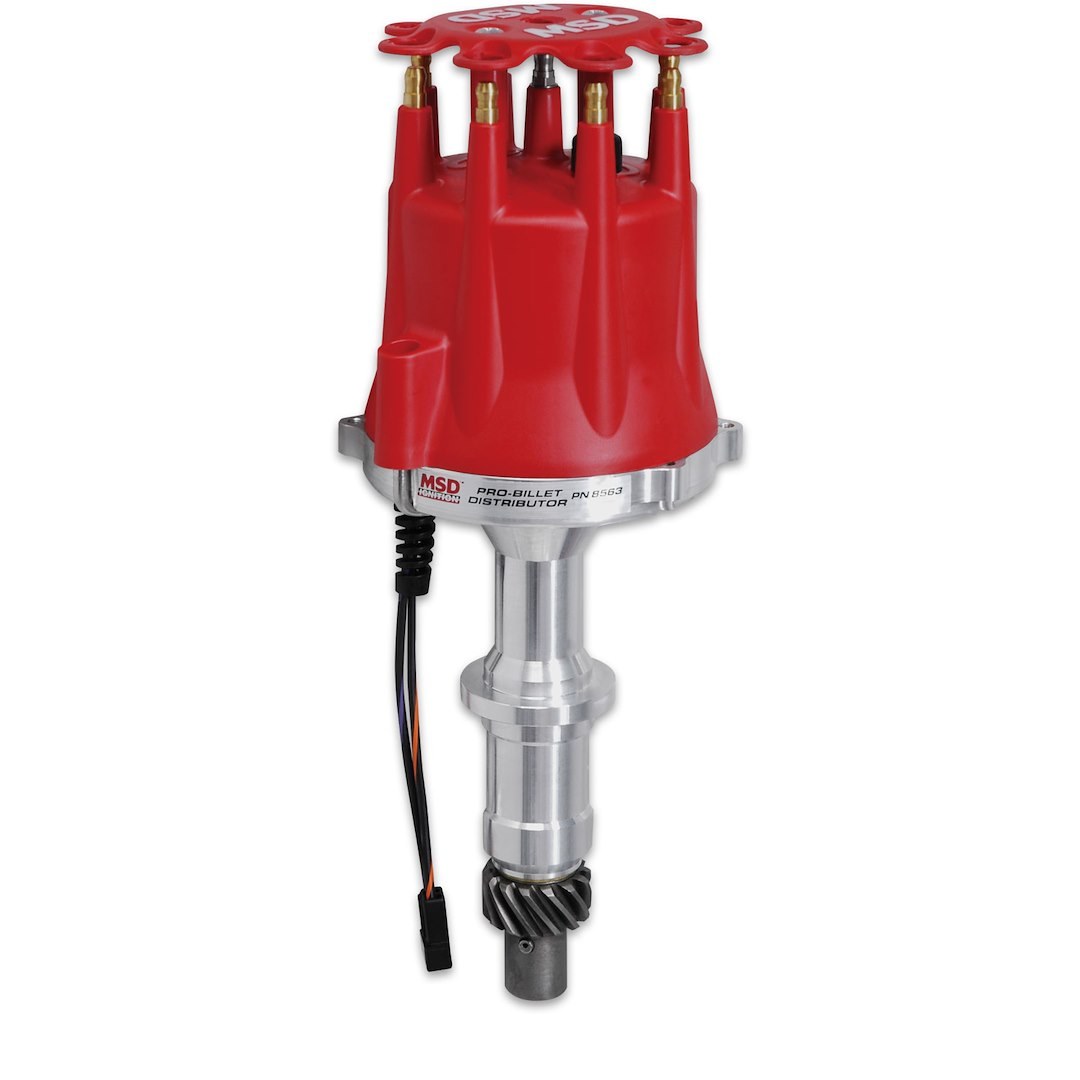

MSD Ignition Distributor, Pro-Billet, For Use with Pontiac 326/350/389/400/421/428/455 Cubic Inch V8 Engines, Without Ignition Module – 8563
$558.08
MSD Ignition Distributor, Pro-Billet – 8563
Description
Distributor; Pro-Billet; For Use With Pontiac 326/350/389/400/421/428/455 Cubic Inch V8 Engines; Without Ignition Module; Magnetic Trigger; Mechanical And Vacuum Advance; With Iron Gear; Red Cap With HEI Style Posts
Attributes:
- Condition: New
- Finish: Polished Shaft
- Recommended Use: Street/ Strip
- Spark Advance Type: Vacuum And Mechanical Advance
- Spark Distribution Type: Magnetic Trigger
- Drive Gear Type: Iron Gear
- With Ignition Module: No
- With Tach Drive: No
- Includes Cap And Rotor: Yes
- Cap Color: Red
- Cap Type: HEI/ Male Posts
- Coil In Cap: No
Features & Benefits:
- CNC Machined Billet Aluminum Housing And Billet Aluminum Base
- Easy To Adjust Mechanical Advance With Supplied Springs And Stop Bushings
- Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
- Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing, Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
- Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
- Advance Weight Pins Are Staked And TIG Welded To The Plate, Nylon Pads Ensure Smooth Operation Of The Advance Weights
- Limited 1 Year Warranty
About Product:
MSD’s Pro-Billet Pontiac V8 distributor for Pontiac engines built for either street performance or hard core racing applications. Special features include a fully adjustable mechanical advance assembly. For all out racing, the advance mechanism can also easily be locked out. For stable timing, a high output magnetic trigger pick up is used to supply the ignition with a trigger signal. Additional stability is achieved via the 0.500 Inch hardened distributor shaft that is supported by sealed ball bearings.
Additional information
| Weight | 5.5 lbs |
|---|---|

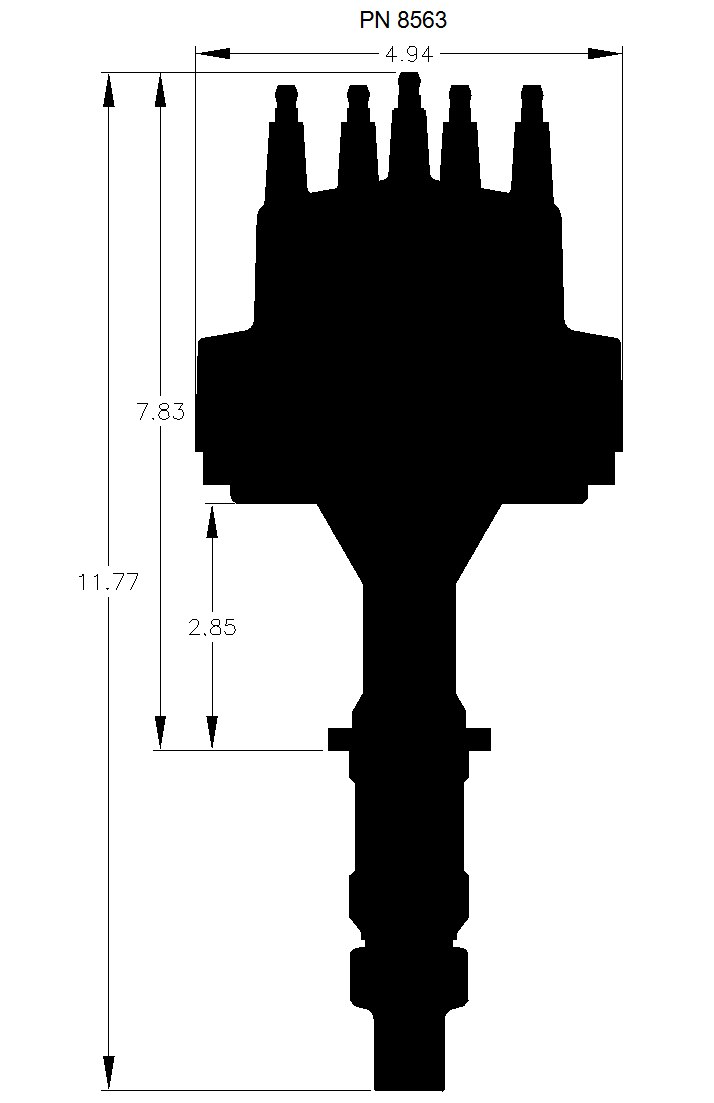

| Dimensions | 19.32 × 7.57 × 6.8 in |
| Brand | MSD CO. |
| Manufacturer Part Number | 8563 |
