Name: MSD Ignition Fuel Pump Electric, 43 Gph at 40 PSI, Without Regulator, 3/8 Inch Hose Barb Inlet and 5/16 Inch Hose Barb Outlet, 12 Volts - 2225
Brand: MSD CO.
SKU: KYS-M462225
Price: 205.13 USD
Availability: InStock

Description

Fuel Pump Electric; 43 GPH at 40 PSI; Without Regulator; 3/8 Inch Hose Barb Inlet and 5/16 Inch Hose Barb Outlet; 12 Volts; Roller Vane

Attributes:

Mounting Style: In-Line
Fuel Type: Gasoline
Voltage Rating: 12 Volt
Free Flow Rate: 43 Gallon Per Hour
Maximum Pressure (PSI): 40 Pounds Per Square Inch
Inlet Size: 3/8 Inch (-6 AN)
Inlet Attachment: Hose Barb
Outlet Size: 5/16 Inch (-5 AN)
Outlet Attachment: Hose Barb
Inlet Quantity: 1
Outlet Quantity: 1
With Sending Unit: No
With Mounting Hanger: Yes
Estimated Install Time (Hours): 1

Features & Benefits:

45 Gallons Per Hour At 60 Pounds Per Square Inch
High Pressure And High Flow Fuel Pump Features A Roller Vane Pump Mechanism Which Is Extremely Resistant To Clogging And Jamming
Meets The Standard Requirements
Deliver Performance And Reliability
Easy Installation
Limited 1 Year Warranty

About Product:

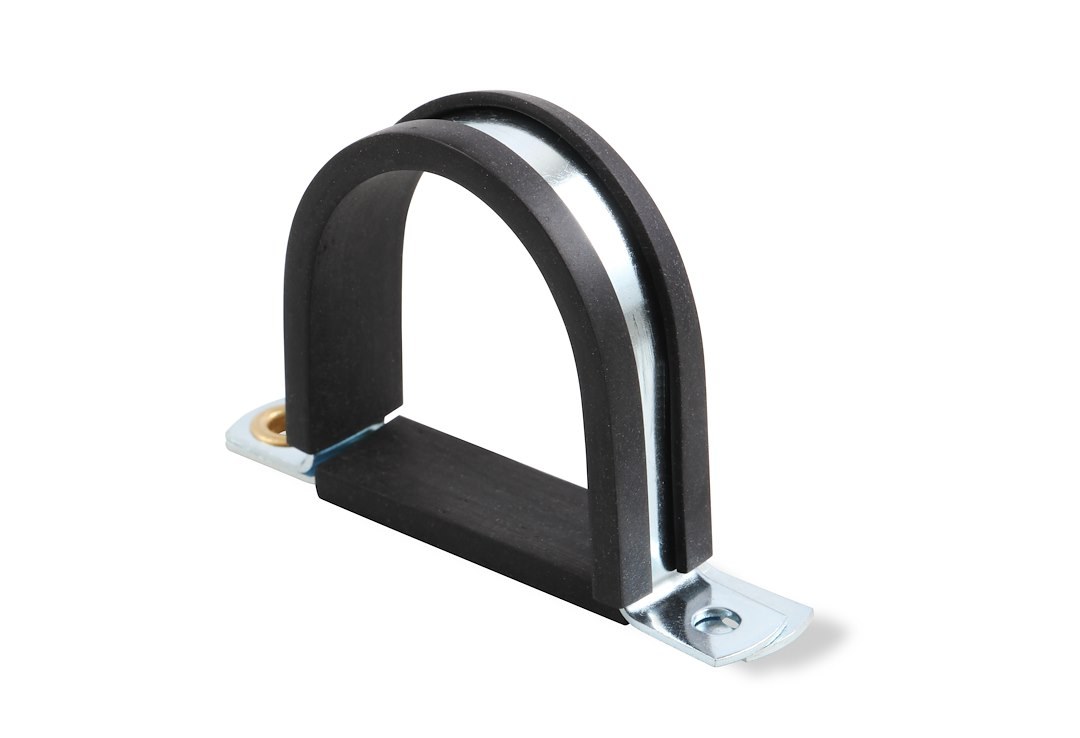

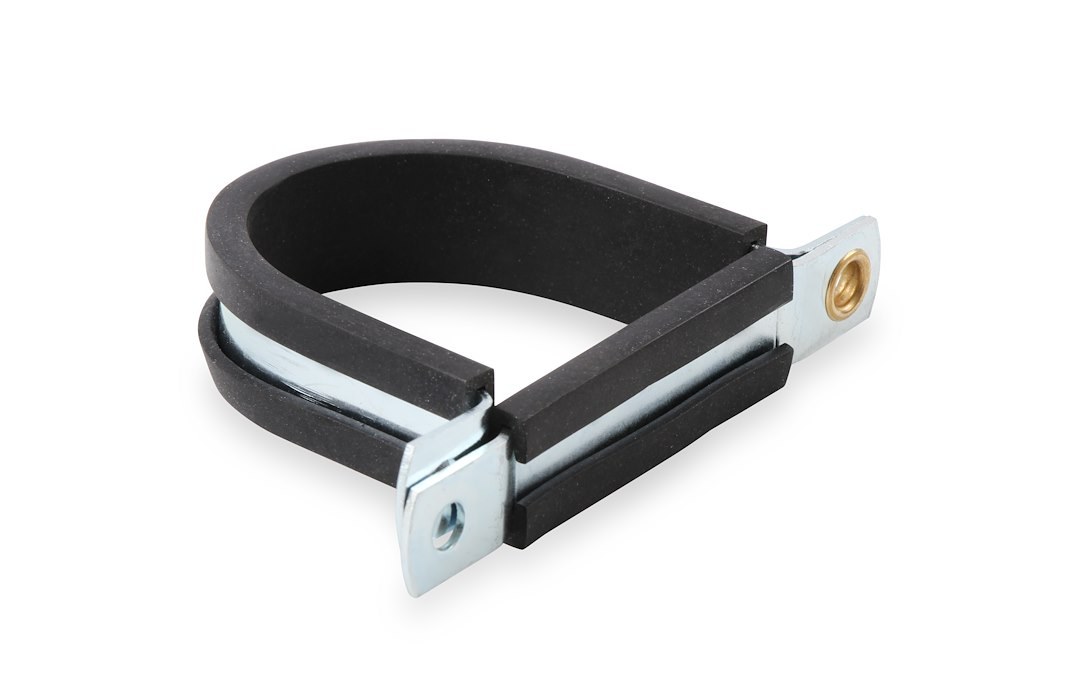

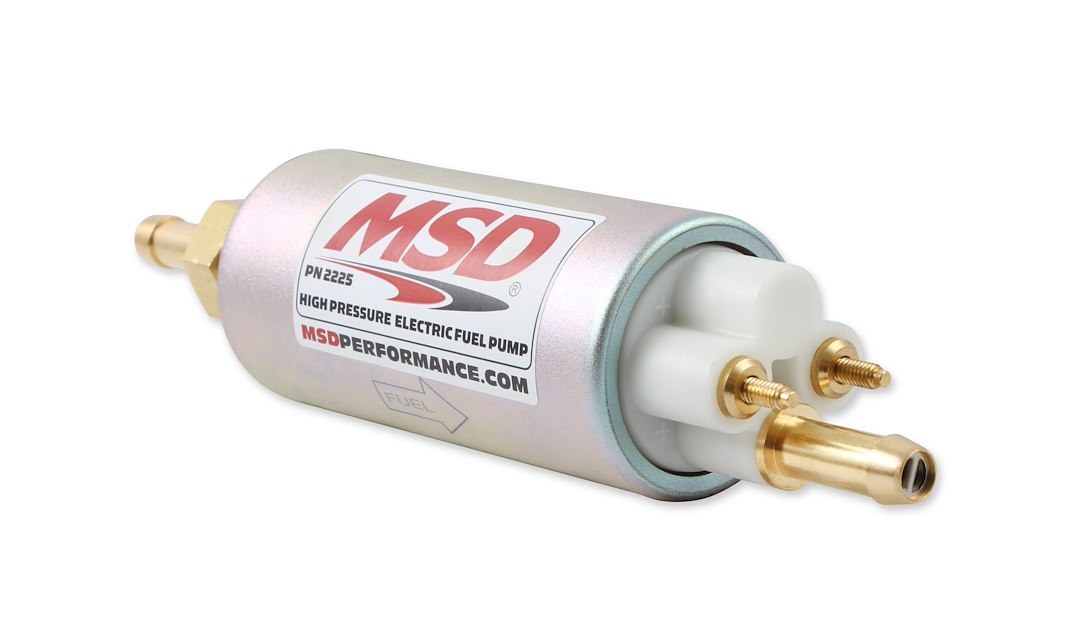

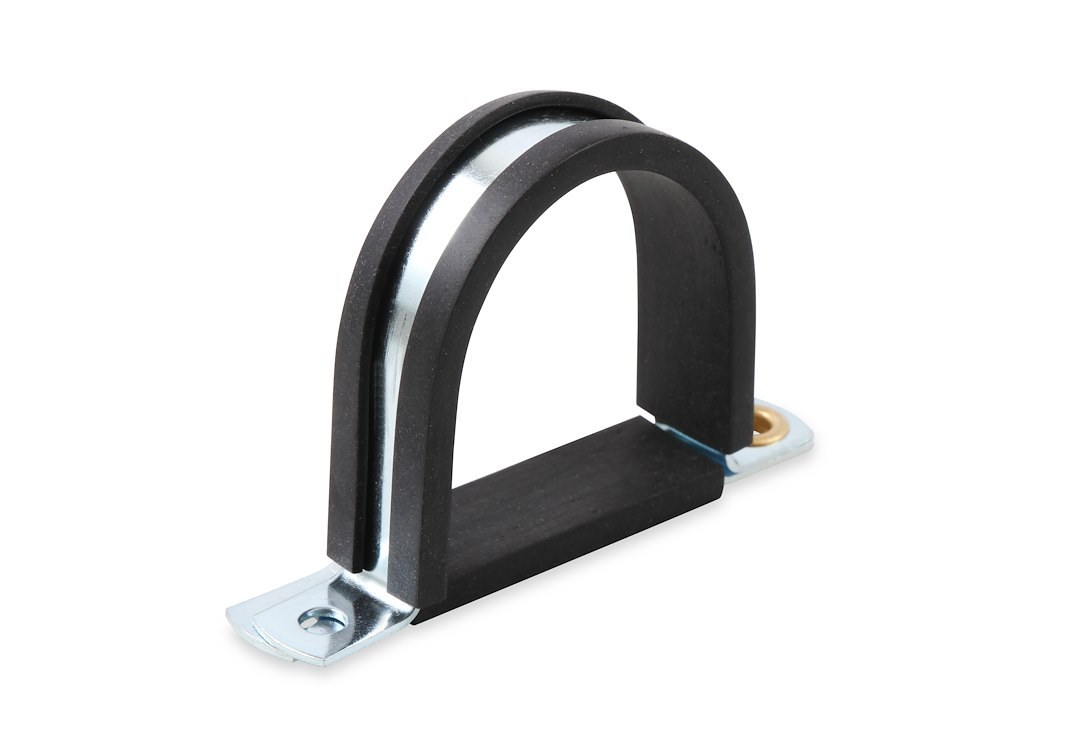

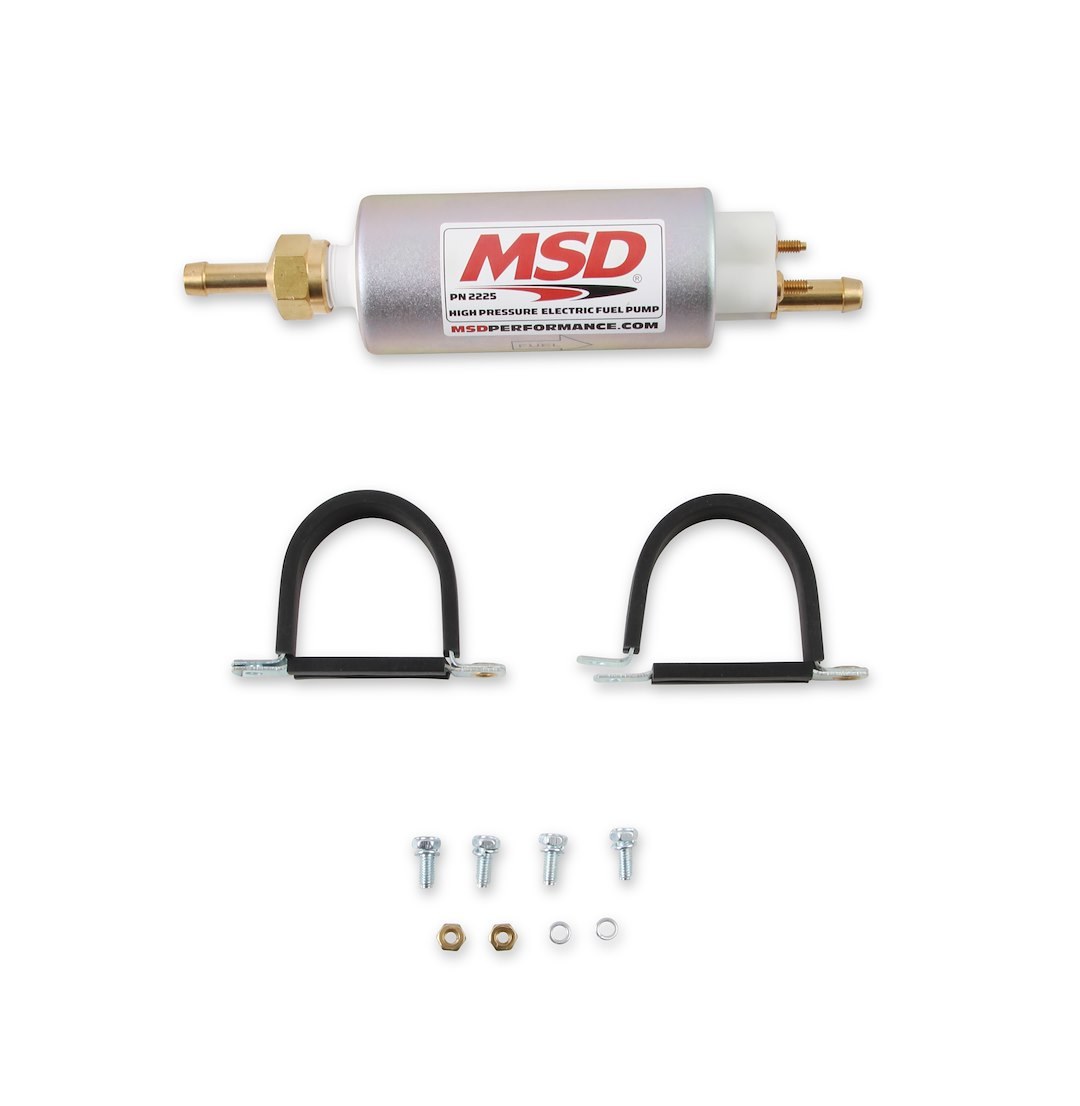

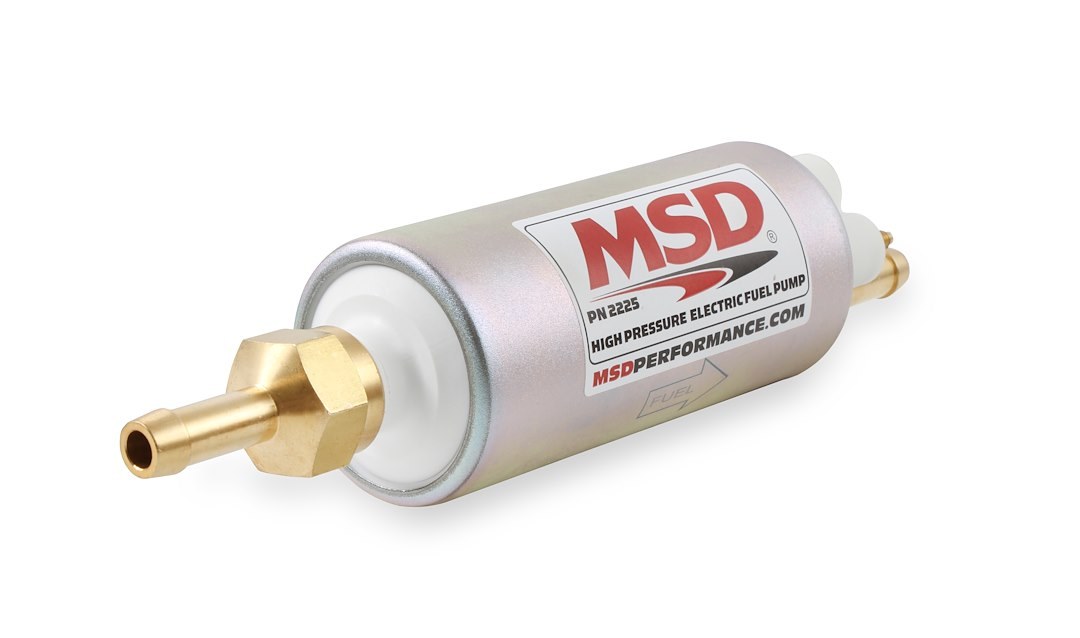

This high pressure and high flow Fuel Pump features a roller vane pump mechanism which is extremely resistant to clogging and jamming. The pump mounts in-line (out of the fuel tank) with two supplied cushioned clamps for a quick and sturdy installation. The nipple inlet and outlet are 3/8 Inch. The wire terminals feature brass studs for secure connections. Made in the USA, the pump is ideal for use as a “booster” for nitrous oxide applications, or as a stand alone pump for multi-port EFI systems on engines up to approximately 525 HP. Capable of 45 Gallons Per Hour at 60 Pounds Per Square Inch.
