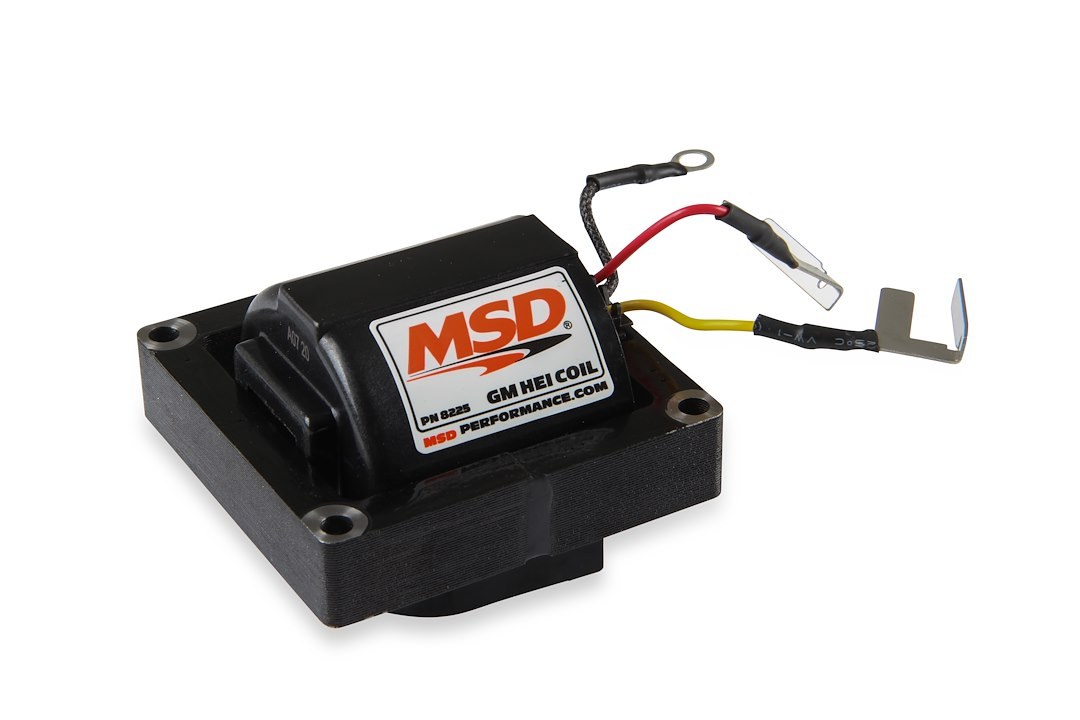

Name: MSD Ignition Ignition Coil, Hei, 42000 Volts - 8225
Brand: MSD CO.
SKU: KYS-M468225
Price: 164.30 USD
Availability: InStock

Description

Ignition Coil; HEI; 42000 Volts; 0.31 Ohms Primary Resistance/9.2K Ohms Secondary Resistance/70:1 Turns Ratio/3.5mH Inductance/200mA Peak Current/200uS Spark Duration; Black

Attributes:

Recommended Use: Street
Coil Style: HEI
Internal Construction: Epoxy Filled
Maximum Voltage: 42000 Volt
Coil Wire Attachment Type: HEI in-cap
Color: Black
Primary Resistance: 0.31 Ohm
Secondary Resistance: 9.2 Kilo Ohm
Diameter (IN): Not Applicable
Height (IN): 4 Inch
Includes Mounting Bracket: No
Includes Coil Wire: No
Includes Ballast Resistor: No

Features & Benefits:

Direct Performance Replacement For GM HEI Coil-In-Cap Distributors
70:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output
Full Power Sparks To 9000 RPM When Used With MSD HEI Module
CARB EO Approved
Limited 1 Year Warranty

About Product:
HEI owners now have a choice to replace their stock coil with the MSD high energy unitized coil for GM HEI distributors. This coil is a direct replacement of the stock coil and offers increased spark energy when used with the MSD HEI module. The coil features special low inductance, high temperature windings which charge faster to give you increased spark energy at higher RPM. The premium epoxy filled construction is designed to withstand harsh race applications as well as the wear and tear that daily usage dishes out, and still deliver more spark energy to the spark plugs.
