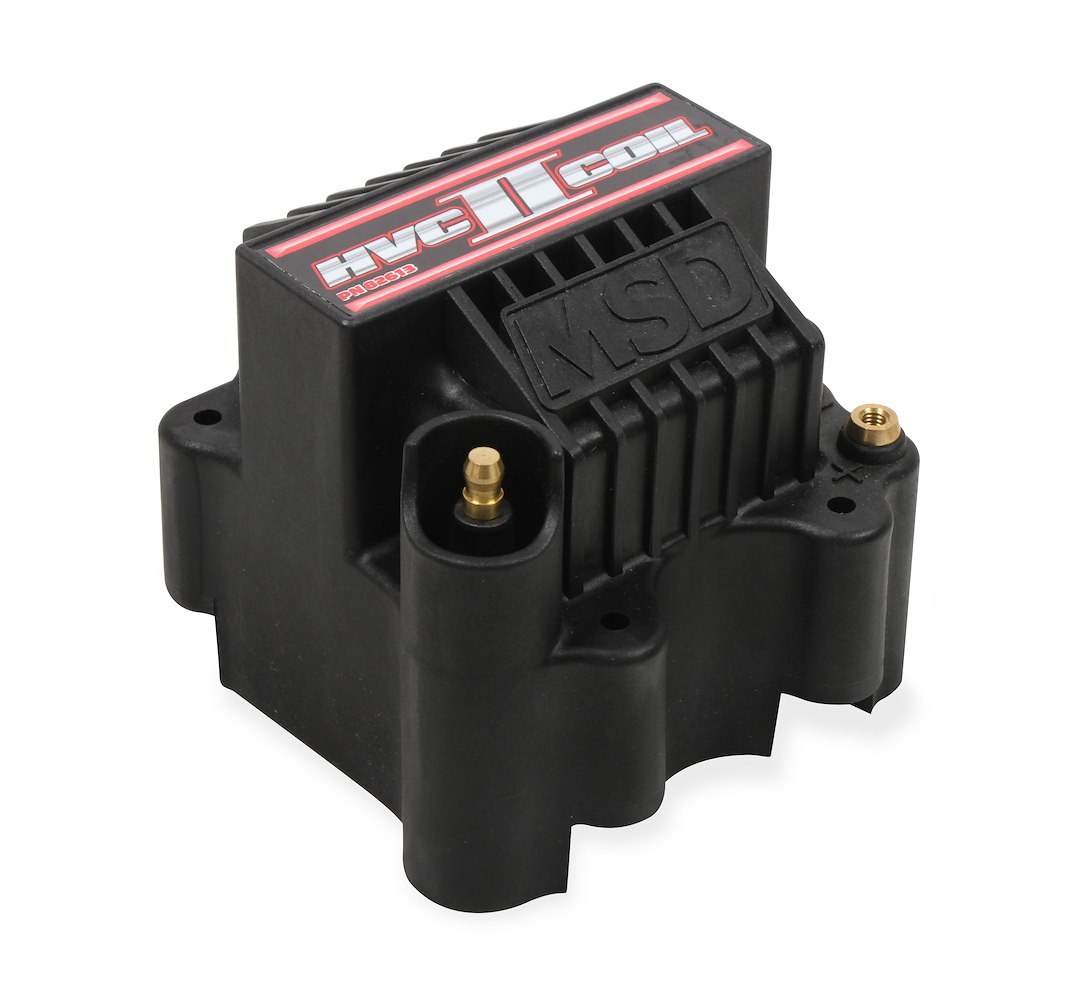

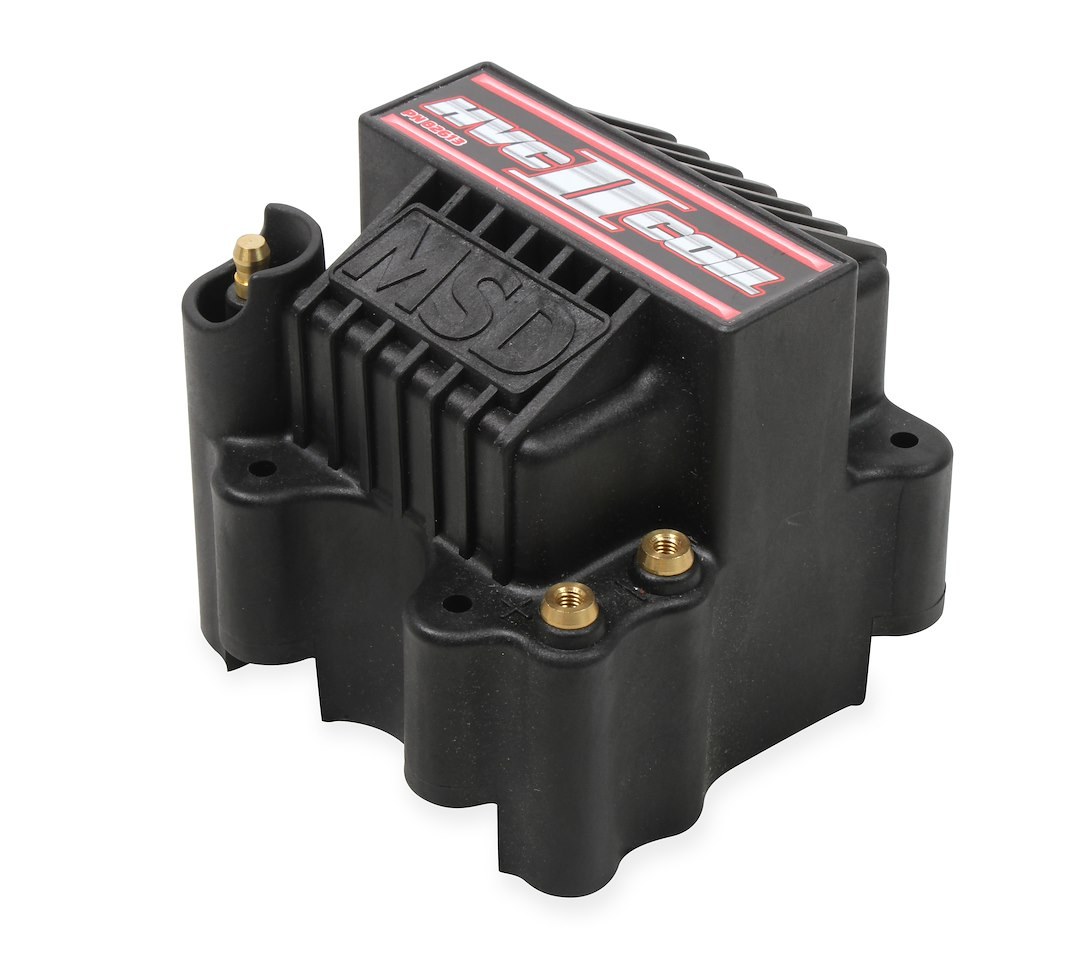

MSD Ignition Ignition Coil, Pro Power Hvc II, Single Tower, 45000 Volts – 82613
$420.69
MSD Ignition Ignition Coil, Pro Power Hvc II, Single Tower, 45000 Volts – 82613
Description
Ignition Coil; Pro Power HVC II; Single Tower; 45000 Volts; 0.016 Ohms Primary Resistance/30 Ohms Secondary Resistance/70:1 Turns Ratio/0.250mH Inductance/2 Amps Peak Current/150uS Spark Duration; Black
Attributes:
- Recommended Use: Drag Race/ Long Duration Use
- Coil Style: 1 Tower
- Maximum Voltage: 45000 Volt
- Coil Wire Attachment Type: Male/ HEI
- Color: Black
- Primary Resistance: 0.016 Ohm
- Secondary Resistance: 30 Ohm
- Includes Mounting Bracket: No
- Includes Coil Wire: No
- Includes Ballast Resistor: No
Features & Benefits:
- Designed For Racing Applications With An MSD 7 Or 8 Series Ignition Control
- U-Core Winding Design Produces More Voltage And Current
- 70:1 Turns Ratio And Lower Primary Resistant Compound For Vibration Resistance
- Tough, Rigid Housing With Isolated Tower And Brass Primary Terminals

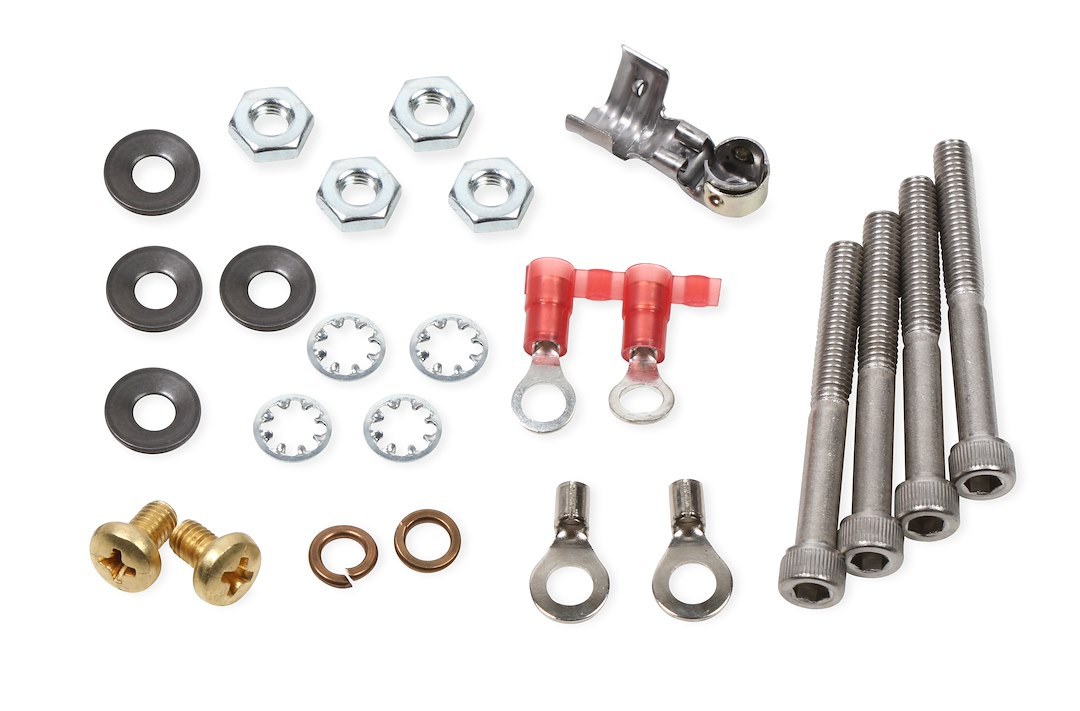

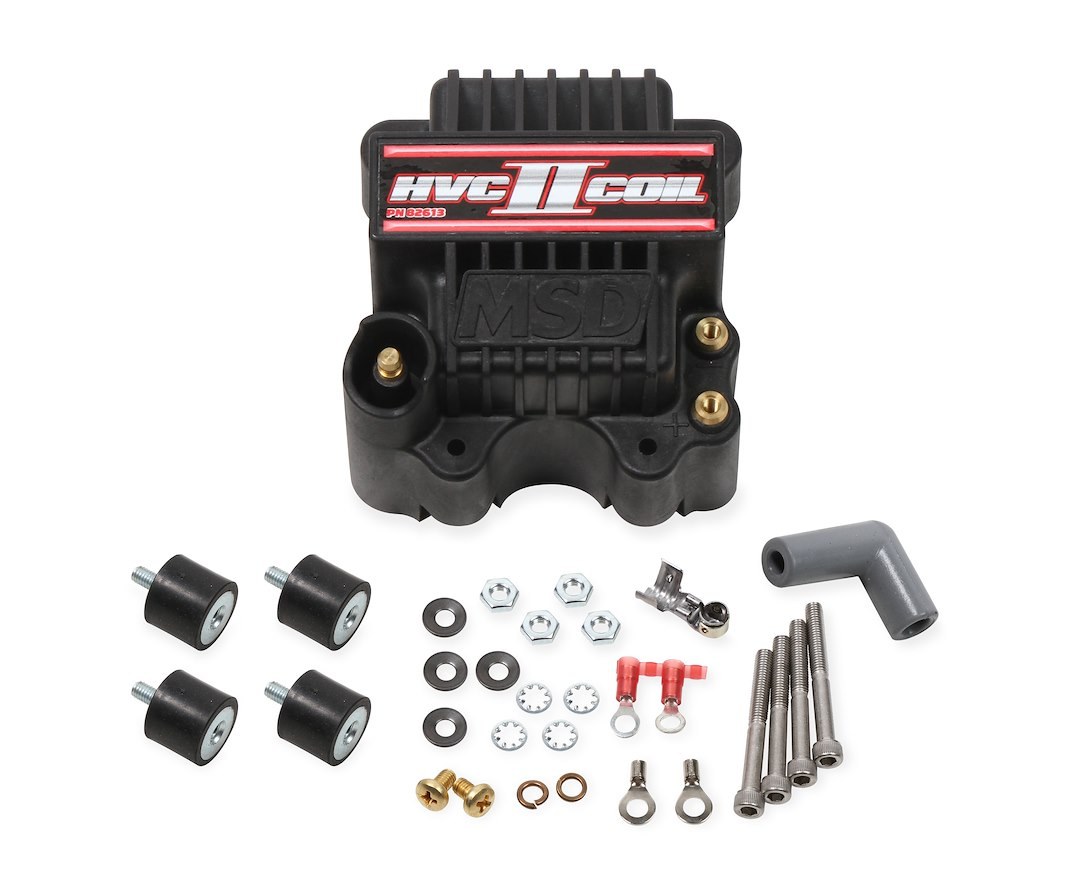

- Supplied With Mounting Hardware And Rubber Shock Mounts
- Limited 1 Year Warranty
About Product:
The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration. The housing, also molded from Rynite material, features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. For use with MSD 7 and 8 Series Ignitions.
Additional information
| Weight | 4.19 lbs |
|---|---|
| Dimensions | 6.25 × 5.5 × 5.5 in |
| Brand | MSD CO. |
| Manufacturer Part Number | 82613 |
