Name: MSD Ignition Ignition Coil, Pro Power, Single Tower Coil, 43000 Volts - 8201
Brand: MSD CO.
SKU: KYS-M468201
Price: 235.29 USD
Availability: InStock

Description

Ignition Coil; Pro Power; Single Tower Coil; 43000 Volts; 0.03 Ohms Primary Resistance/240 Ohms Secondary Resistance/100:1 Turns Ratio/1mH Inductance/800mA Peak Current/180uS Spark Duration; Effective Up To 14000 RPM; Red; Not For Use With MSD 6 or Digital-7-Series Ignitions

Attributes:

Recommended Use: Strip
Coil Style: 1 Tower
Internal Construction: Ciba Arathane
Maximum Voltage: 43000 Volt
Coil Wire Attachment Type: Male/ HEI
Color: Red
Primary Resistance: 0.03 Ohm
Secondary Resistance: 0.24 Kilo Ohm
Diameter (IN): Not Applicable
Height (IN): 2-1/2 Inch
Includes Mounting Bracket: No
Includes Coil Wire: No
Includes Ballast Resistor: No

Features & Benefits:

High Voltage Coil Designed For Short Duration Applications Only
Primary And Secondary Windings Are Encased In Ciba Polyurethane For Vibration Protection
Extremely Low Primary Resistance

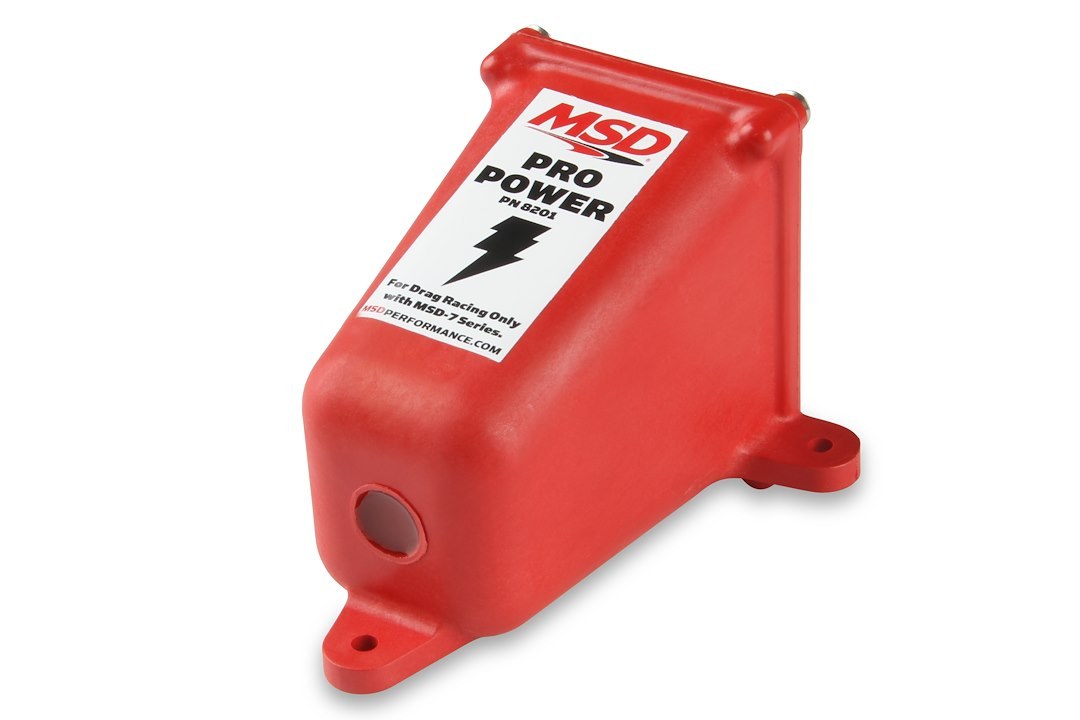

Housing Is Molded From A Durable And High Dielectric Polyester

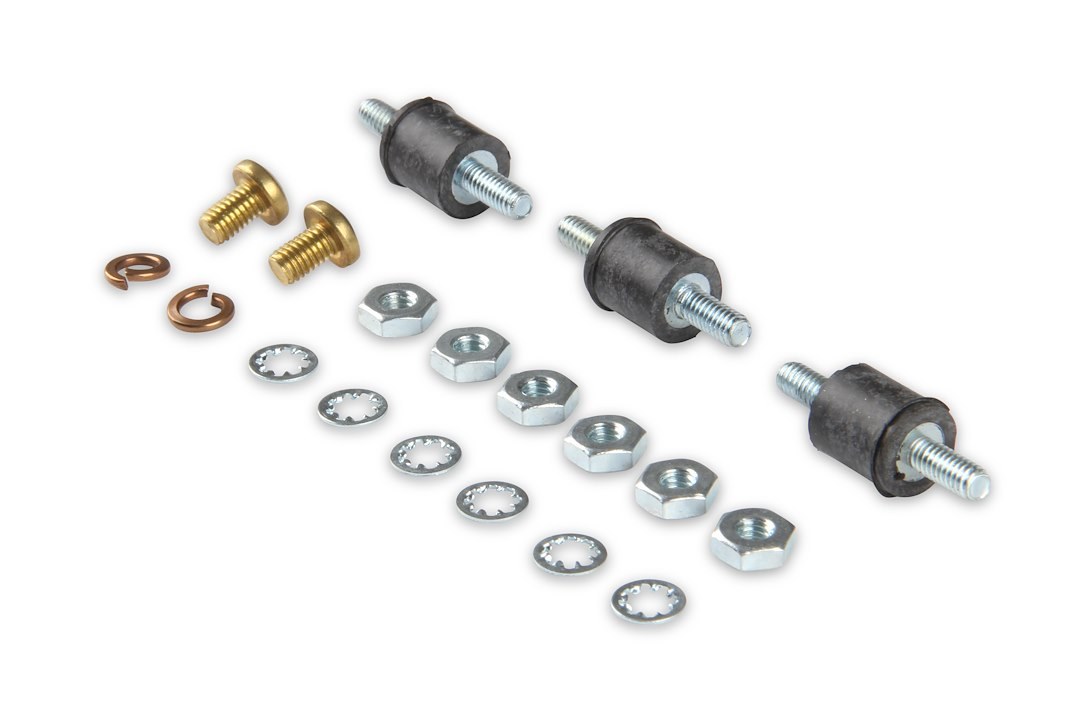

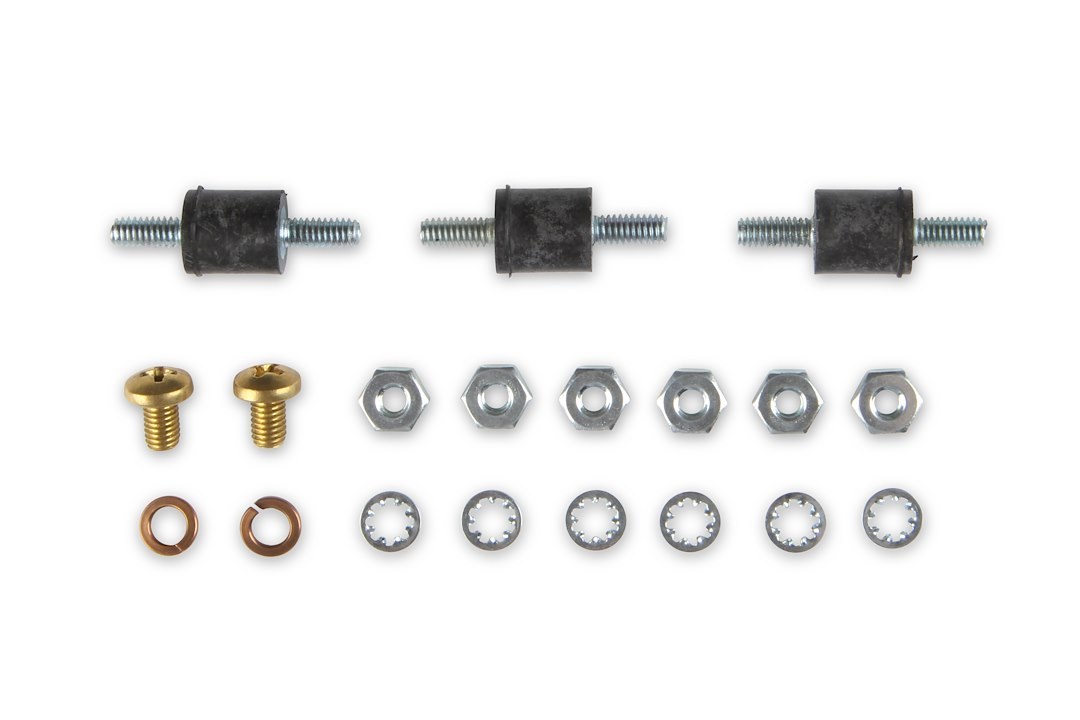

Supplied With Rubber Shock Mounts
For MSD 7ALs, 8 And 10 Ignitions Only
Limited 1 Year Warranty

About Product:

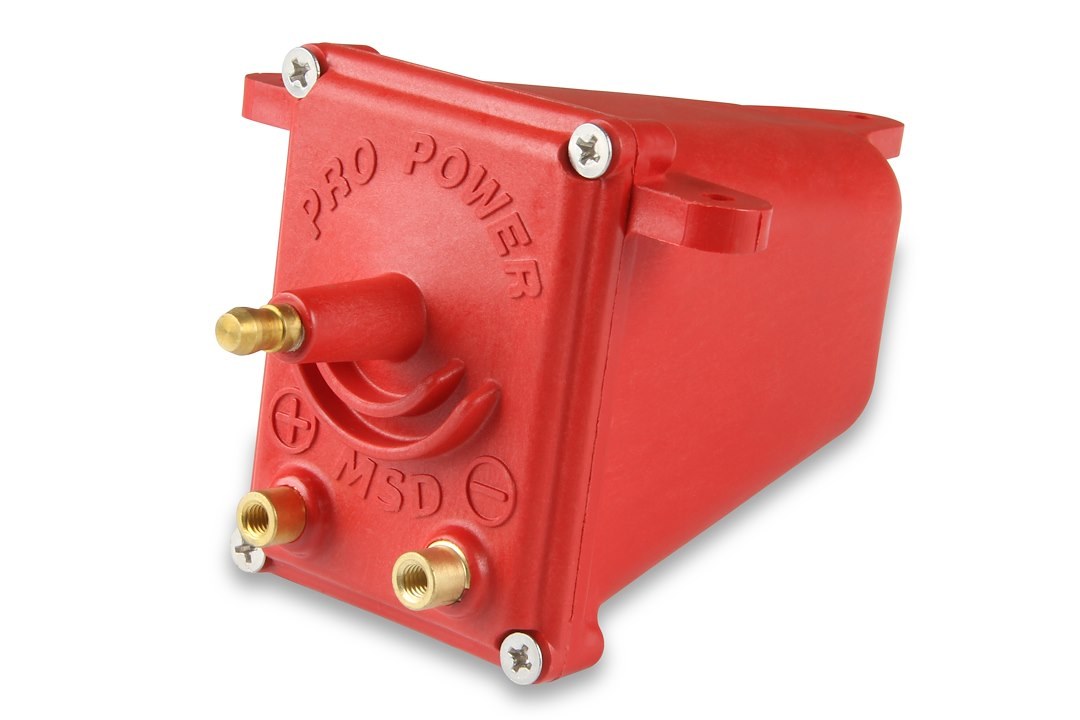

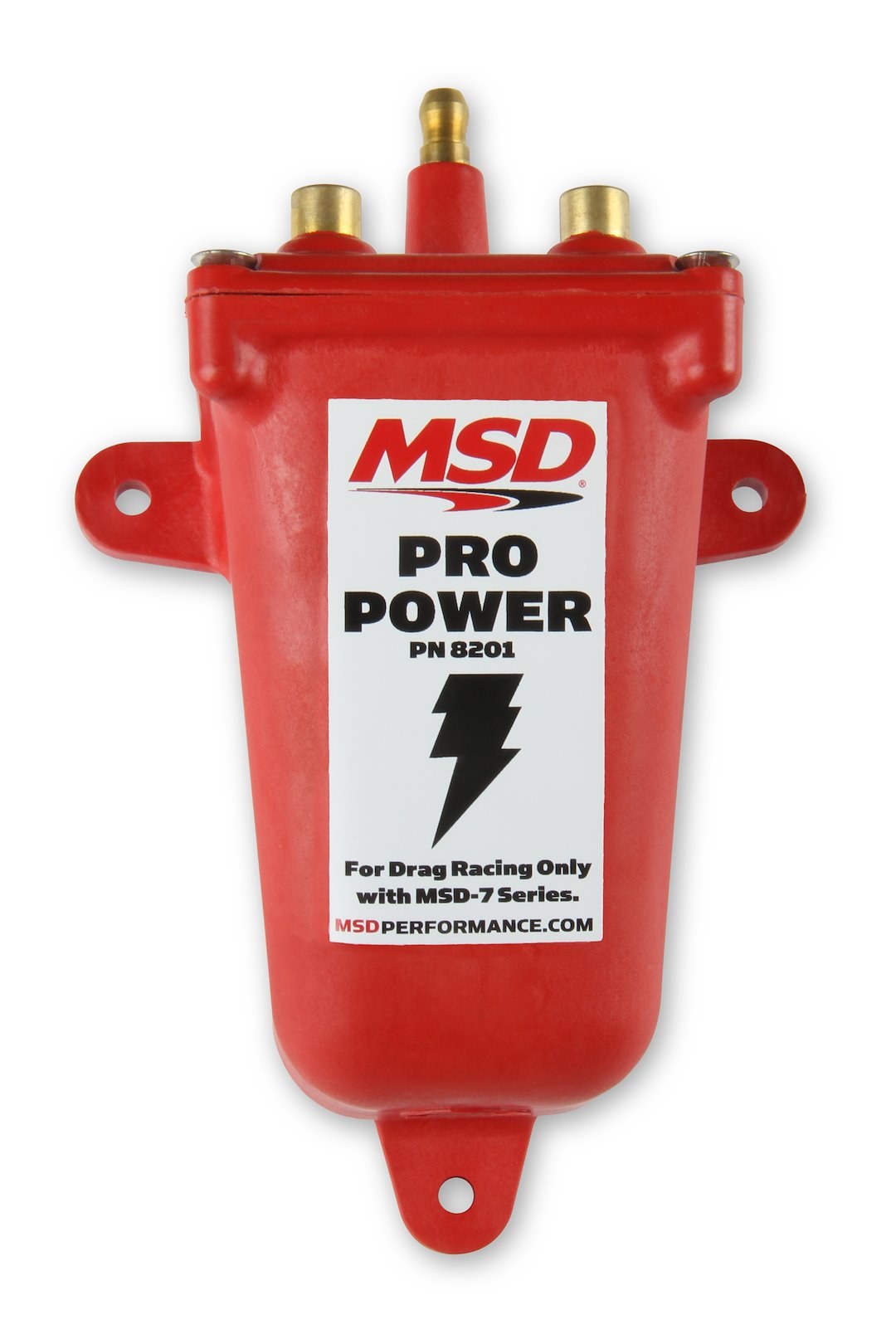

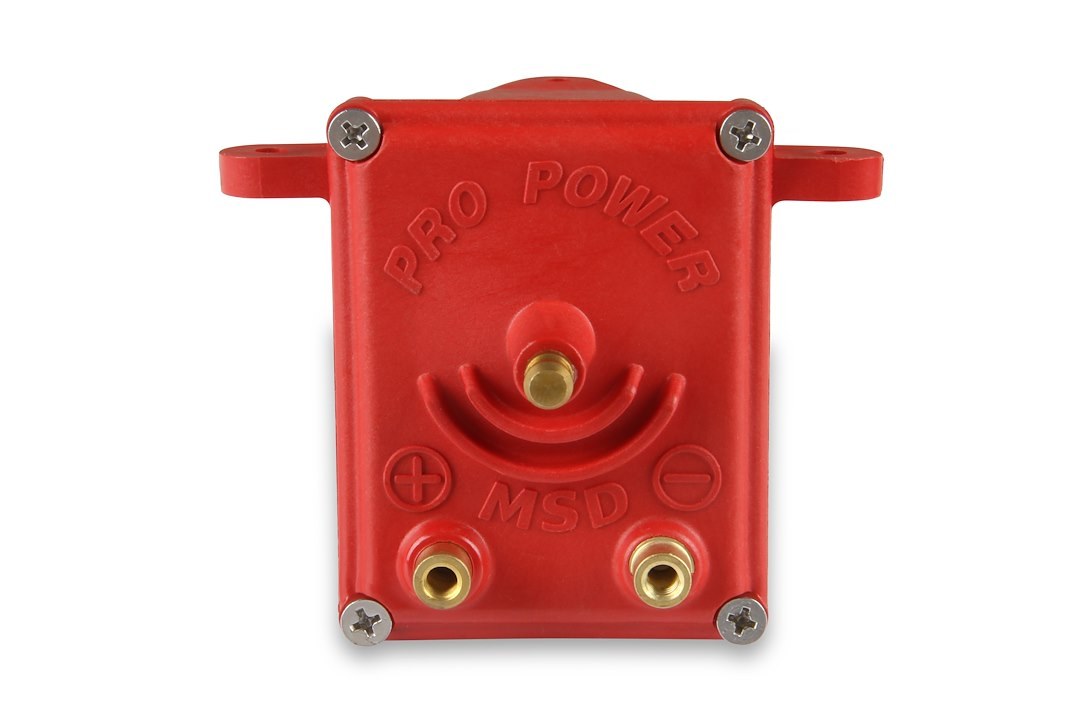

The MSD Pro Power coil is a great choice for short duration applications such as drag racing. The special windings of the Pro Power coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 Series ignition control. The coil wire tower rises tall above the primary terminals and uses a spark plug style terminal for a firm connection to the coil wire. The housing is molded from a high dielectric polyester material and a Ciba Urethane compound adds vibration protection to the coil windings. Vibration mounts are also supplied.
