Name: MSD Ignition Ignition Coil, Smart, Coil Near Plug, 50,000 Volts - 82893
Brand: MSD CO.
SKU: KYS-M4682893
Price: 133.31 USD
Availability: InStock

Description

Ignition Coil; Smart; Coil Near Plug; 50,000 Volts; 0.55 Ohms Primary Resistance/69:1 Turns Ratio/5.2mH Inductance/201 mJ Peak Current; Black; Single

Attributes:

Recommended Use: Performance
Coil Style: Coil Near Plug
Internal Construction: Epoxy Filled
Maximum Voltage: 50000 Volt
Coil Wire Attachment Type: Male/ HEI
Color: Black
Primary Resistance: 0.55 Ohms
Includes Mounting Bracket: No
Includes Coil Wire: No
Includes Ballast Resistor: No

Features & Benefits:

More Spark Energy Than Any Other IGN-1A Smart Coil On The Market For Maximum Fuel Burn During Combustion Sequence
Low Current Draw Means Less Demand On The Electrical And Charging System
Built-In Ignitor For Compatibility With Holley EFI And Many Other Aftermarket ECU’s
Maximum Operating Voltage Of 17 Volts – For Compatibility With Both 12 Volt And 16 Volt Electrical Systems Found In Many Performance/Race Applications
Same Wiring Pinout As Other IGN-1A Coils For Easy Plugin Upgrades
Direct Bolt-On To Holley Cast Aluminum LS Valve Covers With 72mm Bolt Spacing
Limited 1 Year Warranty

About Product:

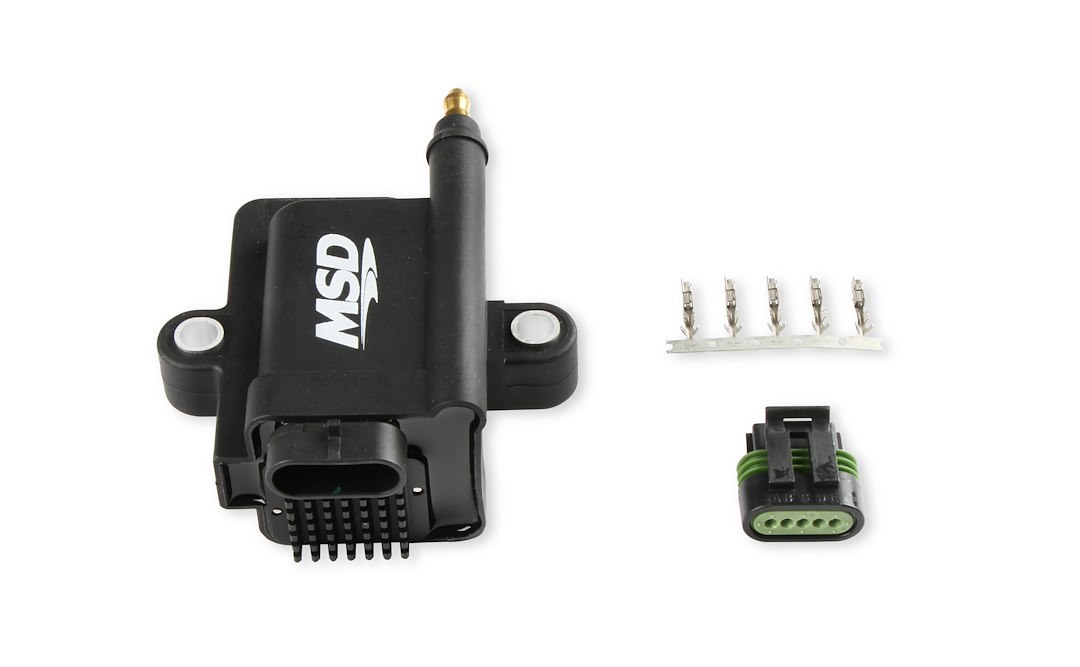

The MSD Smart Coil is a direct replacement for the popular IGN-1A coil. Here’s the difference; it produces more spark energy while consuming less power without sacrificing voltage output. This means you get hotter spark at the plug to burn the maximum amount of fuel in each cylinder while using less power from your electrical system. It is compatible with Holley EFI and many other aftermarket electronic fuel injection systems and will run on traditional 12 volt or 16 volt electrical systems found in race applications. Unique elongated mounting holes accommodate IGN-1A mounting brackets or allow it to bolt in place of an LS coil with 72mm bolt spacing. The MSD Smart Coil will bolt right on to Holley LS cast aluminum valve covers for a super clean look. Available in red or black, there’s a set ready for your build.
