Name: MSD Ignition Ignition Control Module, 6 Series, Street/Drag Racing Use, Digital, 0-12000 RPM, With 2 Step Rev Limiter, Multiple Spark Discharge - 6421
Brand: MSD CO.
SKU: KYS-M466421
Price: 569.49 USD
Availability: InStock

Description

Ignition Control Module; 6 Series; Street/Drag Racing Use; Digital; 0-12000 RPM; With 2 Step Rev Limiter; Multiple Spark Discharge; Without Boost Retard; Red

Attributes:

Color: Red
Spark Output (Millijoules): 135 Millijoules
Output: Capacitive Discharge
Current Draw: 0.7 Amp Per 1000 RPM
CD Voltage Output To Coil (V): 535 Volt
Timing Retard: None
REV Limiter: Yes
Recommended Use: Street/ Drag Racing
Circuitry: Digital
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 12 Volt
Data Acquisition: No
Includes Coil: No

Features & Benefits:

All New Housing, Digital Circuits And Performance
Built-In 2 Step Rev Control With Rotary Dials
Higher Output With Up To 135 Milli Joules And 535 Volts
Accepts Hall Effect, Points And Mag Pickup Triggers
Managed By An Efficient Digital Control
Limited 1 Year Warranty

About Product:

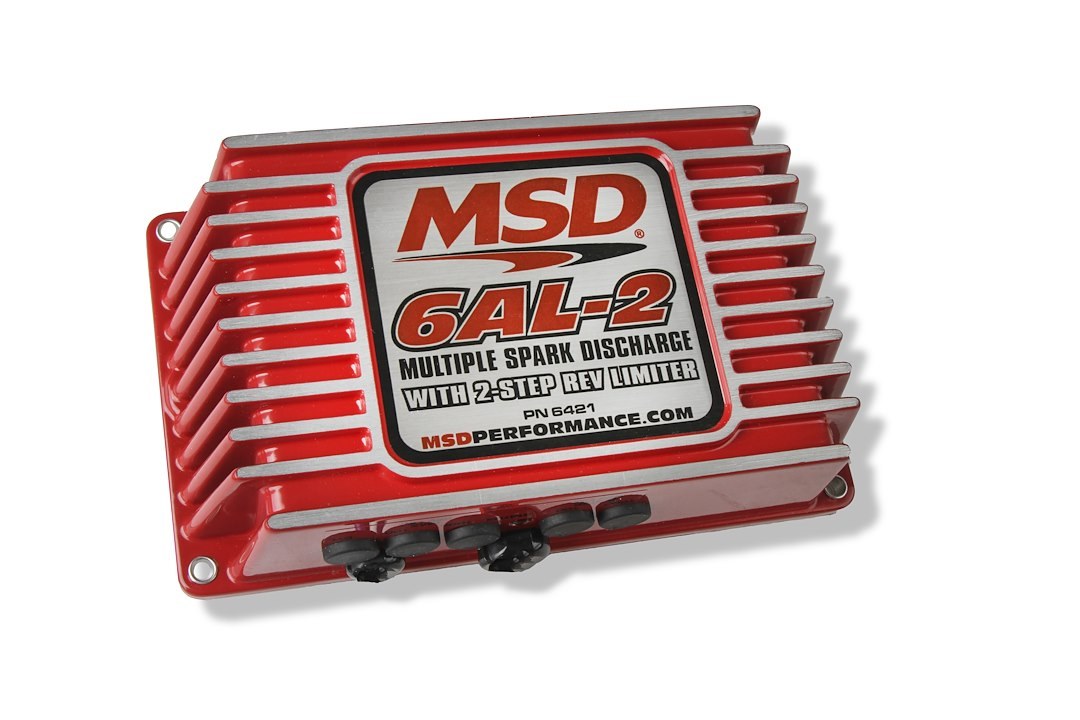

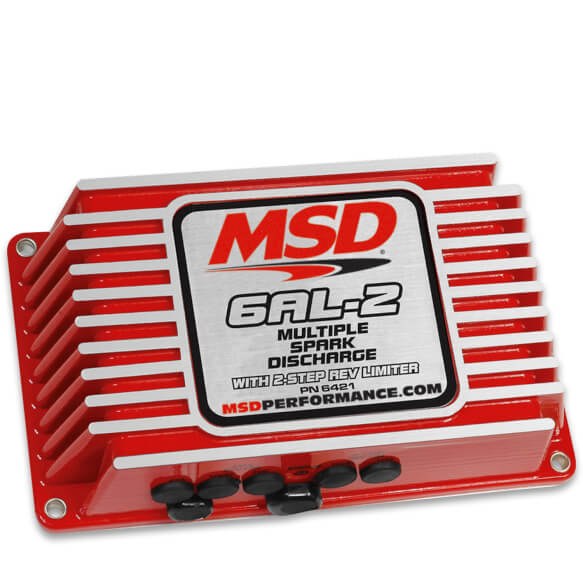

MSD is excited to announce the next generation of 6-Series ignition controls the 6AL-2! The all new ignition control combines a new housing, new digital controls and more power in a sleek package. Inside the new cast aluminum housing you’ll find an advanced micro controller that manages the timing and RPM of the ignition. The spark output of the new box has been turned up to 535 Volts of primary voltage with spark energy reaching up to 135 Milli Joules! The multiple sparks of the 6AL-2 burn in the cylinder for 20 Degrees of crankshaft rotation to ensure complete combustion. Two more great features are the rev limits! There are two rev limiters; one for high end over-rev protection and another you can activate off a clutch or trans brake to set a launch limit. This feature will help your car blast off the starting line! Adjustments are made via four rotary dials for 100 RPM increment control! The all new capacitive discharge ignition will easily connect to nearly any 12 Volt negative ground distributor system.
