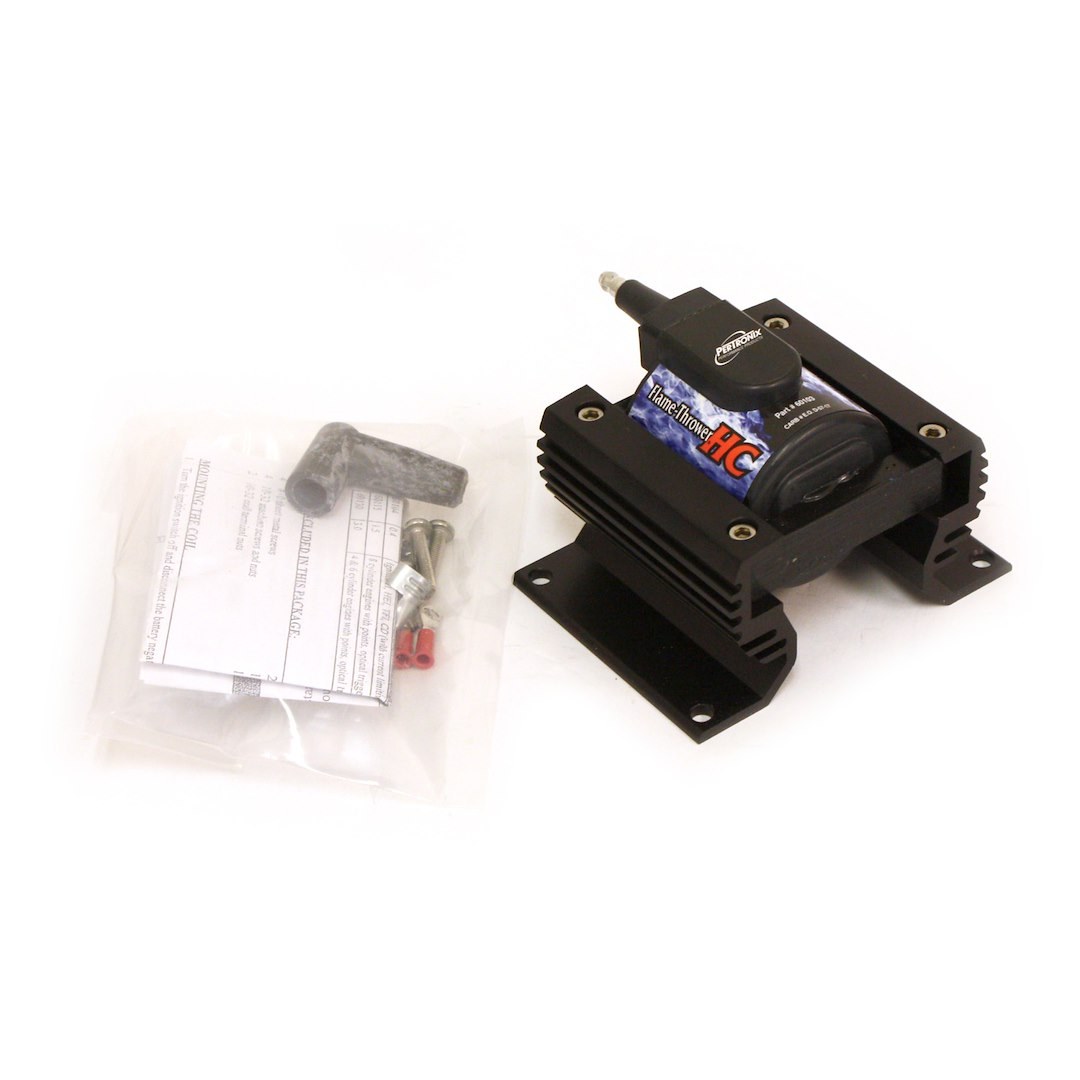

Pertronix Ignition Coil, Flame-Thrower ® Hc, E-Core, 60000 Volts, 0.320 Ohms Primary Resistance – 60103
$124.06
United States dollar ($) - USD
Unsure if this fits your vehicle?Our team can confirm fitment before you buy.
Chat with usPertronix Ignition Coil, Flame-Thrower ® Hc, E-Core, 60000 Volts – 60103
Description
Ignition Coil; Flame-Thrower ® HC; E-Core; 60000 Volts; 0.320 Ohms Primary Resistance
Attributes:
- Recommended Use: Performance
- Coil Style: E-Core
- Internal Construction: Epoxy Filled
- Maximum Voltage: 60000 Volt
- Coil Wire Attachment Type: Male/ HEI
- Color: Black
- Primary Resistance: 0.32 Ohm
- Secondary Resistance: 6 Kilo Ohm
- Height (IN): 3.15 Inch
- Includes Mounting Bracket: Yes
- Includes Coil Wire: No
- Includes Ballast Resistor: No
Features & Benefits:
- 60,000 Volt Rated
- Highly Efficient E-Core Design
- Vacuum Potted Coil Body For Longer Life And Increased Reliability
- 6063 T5 Aluminum Heat Sink With Black Anodized Corrosion Resistant Finish
- Precision Machined Male High Tension Terminal And Brass Primary Terminals
- Limited 90 Day Supplier Warranty
About Product:
New HC (HIGH CURRENT) E-core coils were engineered specifically for our Ignitor III ignition modules. HC coils have a high turns ratio and ultra low primary resistance enabling the ignition system to charge faster at high RPM’s. The coil is supported in a special heat sink made from aircraft 6063 T5 aluminum which efficiently transfers heat away from the windings.
Additional information
| Weight | 2.7 lbs |
|---|---|
| Dimensions | 7 × 6.25 × 4.5 in |
| Brand | PERTRONIX |
| Manufacturer Part Number | 60103 |
