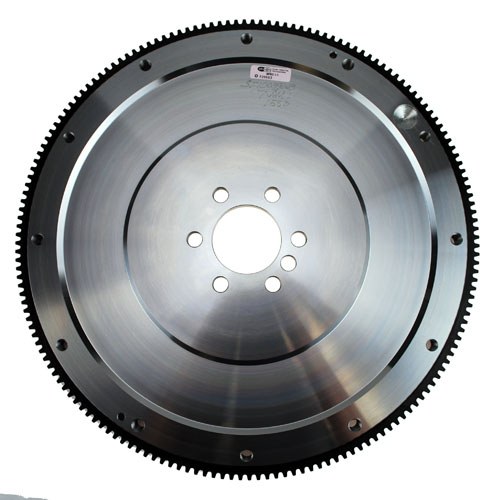

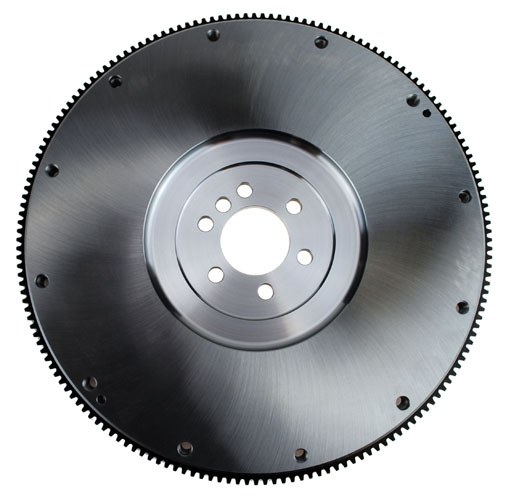

Ram Clutch Flywheel, True Balance, Use with 1997 and Later GM LS1 Engines, 11 Inch/ 11-1/2 Inch Clutch Diameter, Diaphragm Clutch Type – 1550
$332.63
Ram Clutch Flywheel, True Balance, Use with 1997 and Later GM LS1 Engines – 1550
Description
Clutch Flywheel; True Balance; Use With 1997 And Later GM LS1 Engines; 11 Inch/ 11-1/2 Inch Clutch Diameter; Diaphragm Clutch Type; 168 Tooth; Internal Balance; Steel; 14.2 Inch Ring Outside Diameter; 25 Pounds; SFI Approved
Attributes:
- Compatibility: 1997 And Later GM LS1 Engines
- Rear Main Seal Style: 1 Piece
- Clutch Diameter (IN): 11 Inch
- Tooth Count: 168
- Engine Balance: Internal
- Weight (LB): 25 Pound
- Material: Steel
- Clutch Type: Diaphragm
- Ring Outside Diameter (IN): 14.2 Inch
- Includes Bolts: No
- Number Of Bolts: 6
- Safety Rating: SFI 1.1
Features & Benefits:
- Fully Machined And Assembled In House
- SFI Certified
- A Key Feature Of Ram Aluminum Flywheels Is The Steel Insert. A Flywheel Insert Must Have Enough Mass To Wick Heat Away From The Clutch Without Distorting
- Billet Flywheel Is Surface Ground, Already Balanced And Ready To Install Out Of The Box
- Limited 30 Day Warranty
About Product:
All billet flywheels are not created equal! RAM billet steel and aluminum flywheels are fully machined and assembled in house. That means when RAM billet flywheel, it is already surface ground, already balanced, and ready to install out of the box. A key feature of RAM aluminum flywheels is the steel insert. A flywheel insert must have enough mass to wick heat away from the clutch without distorting. RAM uses a 0.250 Inch thick inset that is riveted in before the flywheel is surface ground. This assures a parallel friction surface with no run out and enough material to adequately wick the heat while maintaining flatness over time that thinner inserts simply cannot do. All RAM billet flywheels are SFI certified.
Additional information
| Weight | 32.1 lbs |
|---|---|
| Dimensions | 15 × 15 × 2 in |
| Brand | RAM |
| Manufacturer Part Number | 1550 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 63 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
