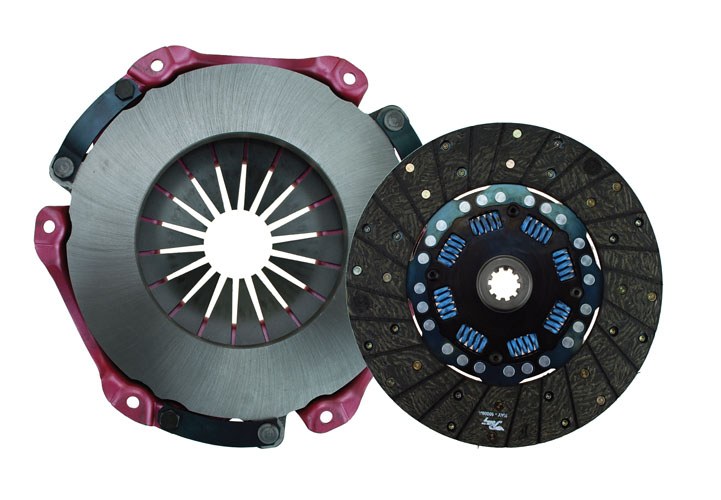

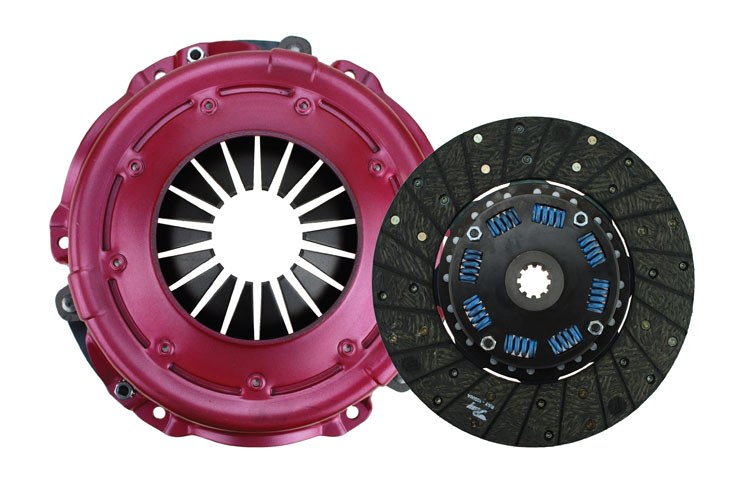

Ram Clutch Set, Hdx, 10-1/2 Inch Clutch Diameter, 1-1/8 Inch X 10 Spline Input Shaft, Diaphragm, No Centrifugal Assist – 88760HDX
$355.13
Ram Clutch Set, Hdx, 10-1/2 Inch Clutch Diameter – 88760HDX
Description
Clutch Set; HDX; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 10 Spline Input Shaft; Diaphragm; No Centrifugal Assist; Steel Pressure Plate; Single Disc/ Organic Woven Riveted Friction Material; Full Face Design/ Sprung Hub/ 8 Urethane Encapsulated Springs; With Clutch Disc/ Pressure Plate/ Release Bearing/ Alignment Tool
Attributes:
- Input Shaft Size: 1-1/8 Inch X 10 Spline
- Pressure Plate Design: Diaphragm
- Disc Diameter: 10-1/2 Inch
- Number Of Friction Discs: 1 Disc
- Disc Friction Material: Organic Woven Riveted
- Disc Friction Face Design: Full Face
- Disc Hub Design: Sprung
- Pressure Plate Centrifugal Assist: No Centrifugal Assist
- Torque Holding Capacity: 450 Feet/Pound
- Pressure Plate Material: Steel
- Includes Throwout Bearing: Yes
- Includes Pilot Bearing: No
- Includes Alignment Tool: Yes
Features & Benefits:
- Increased Clamp Pressure, The Single Most Effective Way To Manage High Horsepower Or Load, Especially In Street Driven Performance Cars
- Smooth, Chatter Free Operation, Achieved With Premium Organic Composite Disc Friction Material
- HDX Discs Feature Exclusive 8 Spring Hub Assembly For Added Load Capacity
- Great Drivability And Control For Power Levels To 450 Horsepower
- Limited 30 Day Warranty
About Product:
The basic Ram concept of clutch performance is simple: Increased clamp pressure is the single most effective way to manage high Horsepower or load, especially in street driven performance cars. We purpose build RAM HDX pressure plates with 30 Percent more clamp pressure than stock. The second important feature is smooth, chatter free operation, which we achieve with premium organic composite disc friction material. Also, HDX discs feature our exclusive 8 spring hub assembly for added load capacity. Great drivability and control for power levels to 450 Horsepower. Sets include pressure plate, disc, release bearing, and alignment tool unless otherwise noted.
Additional information
| Weight | 24 lbs |
|---|---|
| Dimensions | 14.7 × 13.76 × 3.83 in |
| Brand | RAM |
| Manufacturer Part Number | 88760HDX |
