ReadyLIFT Lift Kit Suspension, 6 Inch Front Lift, 5 Inch Rear Lift, With Front and Rear Bilstein Shock Absorbers IN Kit – 49-19630
$2,385.70
ReadyLIFT Lift Kit Suspension, 6 Inch Front Lift, 5 Inch Rear Lift – 49-19630
Description

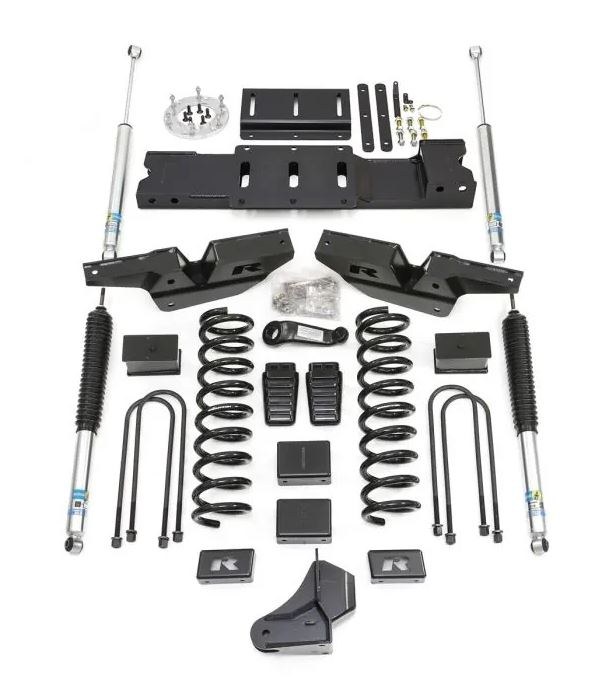

Lift Kit Suspension; 6 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Bilstein Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Coil Springs/ Radius Arm Drop Brackets/ Rear Leaf Spring Blocks And U Bolts/ Drop Pitman Arm/ Stabilizer Bar Spacers/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 5 Inch
- Front Lift Type: Coil Springs
- Rear Lift Type: Leaf Spring Blocks And U-Bolts
- Maximum Tire Size: 37×13.5
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.3
- Wheel Offset (MM): -18
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- 6 Inch Front Lift With A 5 Inch Rear Lift For The Perfect Lifted Stance
- Features All-New Driveline Indexing System With Transfer Case Clocking Ring And New Heavy-Duty Transmission Crossmember
- Maintains Factory Turning Radius Without Rubbing When Using The Recommended Wheel And Tire Size
- Maintains Factory Suspension Geometry And Articulation
- Features 4 Bilstein 5100 Series Shocks Tuned Specifically For The Ram 3500 HD
- For Use On The Ram 3500 4WD HD Diesel Standard Output Engine Trucks Only
- Allows For Up To 37×13-1/2 Tires On 9 Inch Wide Wheels With -18 Offset
- Compatibility With Our Indexing Ring From The Transmission To The Transfer Case
- Limited 5 Year Or 100,000 Mile Warranty
About Product:
The new RAM HD trucks are more popular than ever and the ReadyLIFT 6 Inch lift kit for 5th generation Ram 2500 HD trucks are extremely popular. That is exactly what ReadyLIFT has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve driveline angle. Well, that’s exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and features an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission crossmember. Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 6 Inch lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of our DIS – a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember-positioning the transmission and pinion position for a smooth driving experience on or off-road.
Additional information
| Weight | 250 lbs |
|---|---|
| Dimensions | 47.75 × 24 × 12.62 in |
| Brand | READYLIFT |
| Manufacturer Part Number | 49-19630 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 116 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
