Revolution Gear & Axle Wheel Adapter, 5 X 100 Millimeter/ 5 X 3.94 Inch/ 5 X 114.3 Millimeter/ 5 X 4.50 Inch Axle Bolt Circle – 5100/425-5475-B
$49.78
Revolution Gear & Axle Wheel Adapter – 5100/425-5475-B
Description

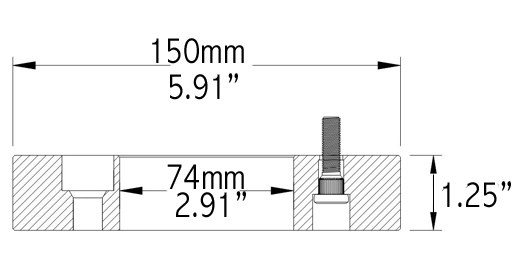

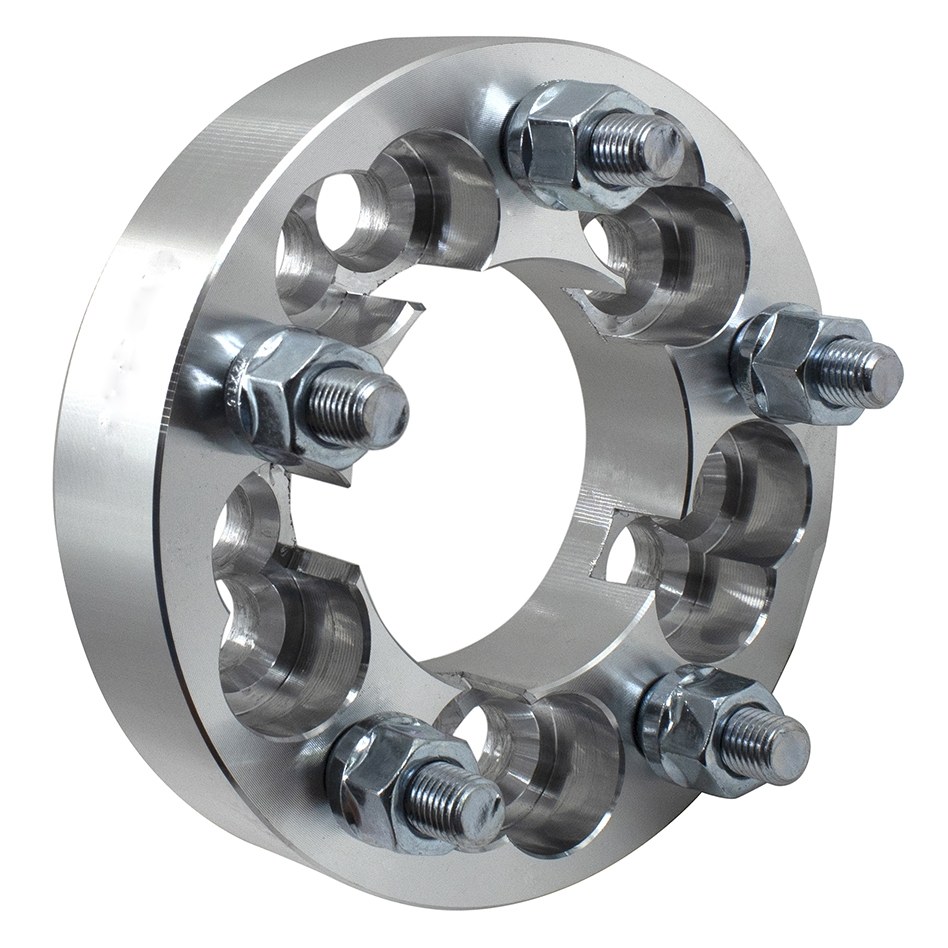

Wheel Adapter; 5 x 100 Millimeter/ 5 x 3.94 Inch/ 5 x 114.3 Millimeter/ 5 x 4.50 Inch Axle Bolt Circle; 5 x 120.7 Millimeter/ 5 x 4.75 Inch Wheel Bolt Circle; Non Hub Centric; 12 Millimeter x 1.5 Thread Size Studs; 74.00 Millimeter Center Bore; 1-1/4 Inch Thick; Anodized Clear; Billet Aluminum; 1 Adapter And 5 Lugnuts
Attributes:
- Vehicle Bolt Circle (MM): 5×100/ 5×114.3
- Wheel Bolt Circle (MM): 5×120.7
- Stud Size: 12×1.5
- Hub Fitment: Non Hub Centric
- Hub Size: Not Applicable
- Thickness (IN): 1-1/4 Inch
- Number Of Lug Nuts: 5
- Vehicle Bolt Circle (IN): 5×3.94/ 5×4.50
- Wheel Bolt Circle (IN): 5×4.75
- Finish: Anodized
- Color: Clear
- Material: Aluminum
- Lug Nut Seat Type: 60 Degree Conical Bulge
- Lug Nut Design: Acorn Open End
- Lug Nut Color: Silver
- Quantity: Single
- Estimated Install Time (Hours): 0.25

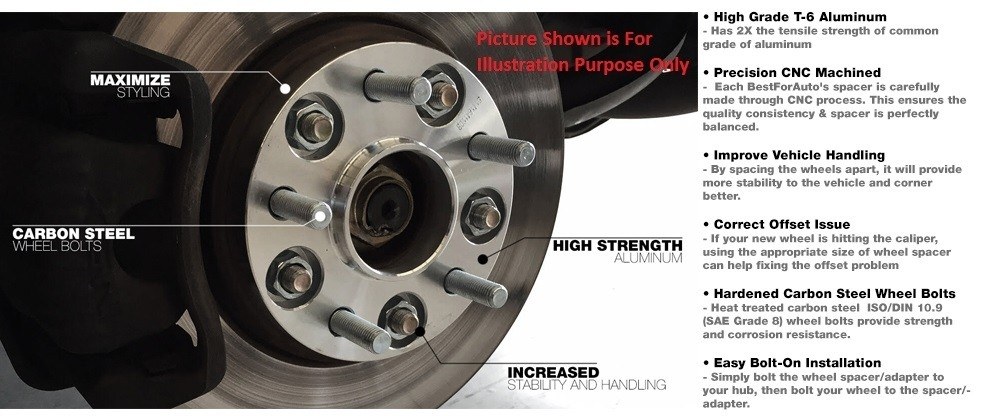

Features & Benefits:
- Made Of Air Craft Quality 6061-T6 Aluminum
- Anodized To Protect From Corrosion
- Developed To Help The Installer Better Serve The Needs Of The Marketplace

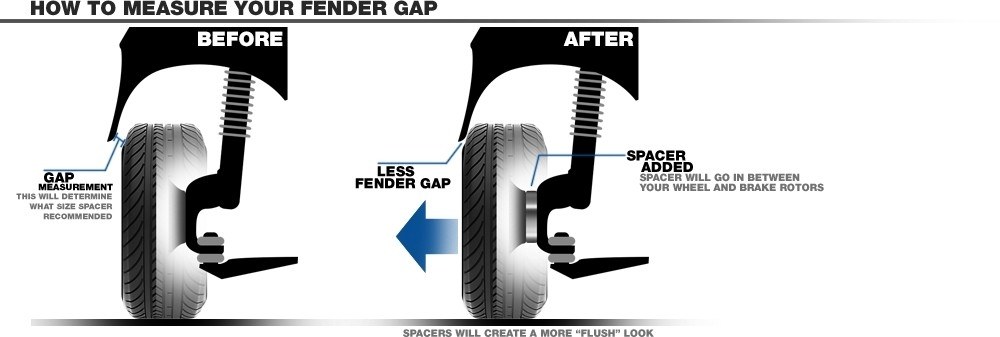

- Can Be Used To Resolve Many Clearance Issues Faced In Aftermarket Or Custom Wheel Installations
- Limited 90 Day Warranty
About Product:
For more than 18 years Revolution Supply has been an industry leader. Our tenured staff will deliver a customer experience unparalleled in the industry . We continue to expand our product offering to help you.
Additional information
| Weight | 6.44 lbs |
|---|---|
| Dimensions | 7 × 7 × 4 in |
| Brand | REVOLUTION |
| Manufacturer Part Number | 5100/425-5475-B |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 3,504 vehicles.
