Revolution Gear & Axle Wheel Adapter, 6 X 135 Millimeter/ 6 X 5.31 Inch Axle Bolt Circle – 6135-6550H-B
$60.90

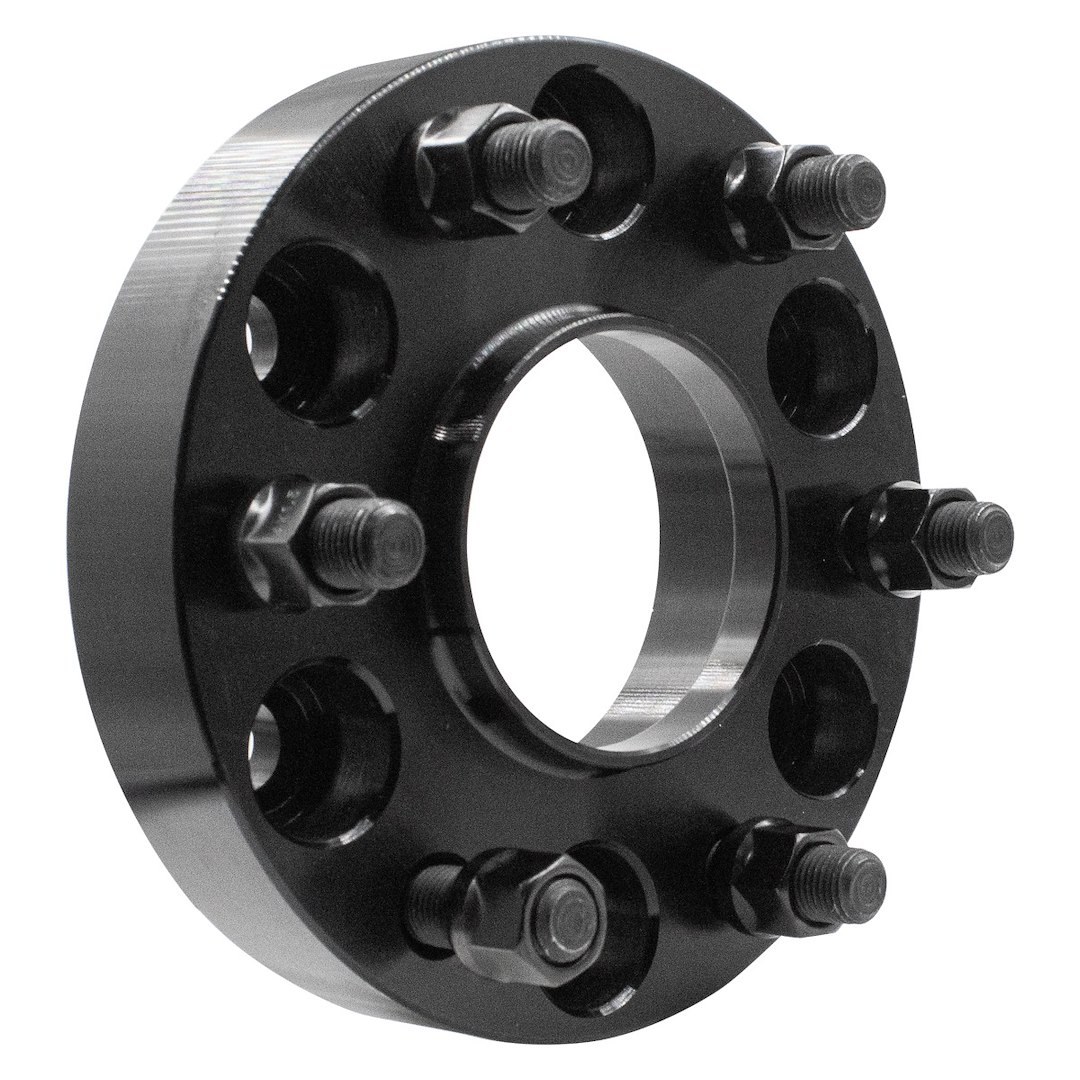

Revolution Gear & Axle Wheel Adapter – 6135-6550H-B
Description
Wheel Adapter; 6 x 135 Millimeter/ 6 x 5.31 Inch Axle Bolt Circle; 6 x 139.7 Millimeter/ 6 x 5.50 Inch Wheel Bolt Circle; Hub Centric; 14 Millimeter x 1.5 Thread Size Studs; 87.1 Millimeter Center Bore ID/ 78.1 Millimeter Hub Size OD; 1.25 Inch Thick; Anodized Black; Aluminum; With Acorn Bulge Lug Nuts

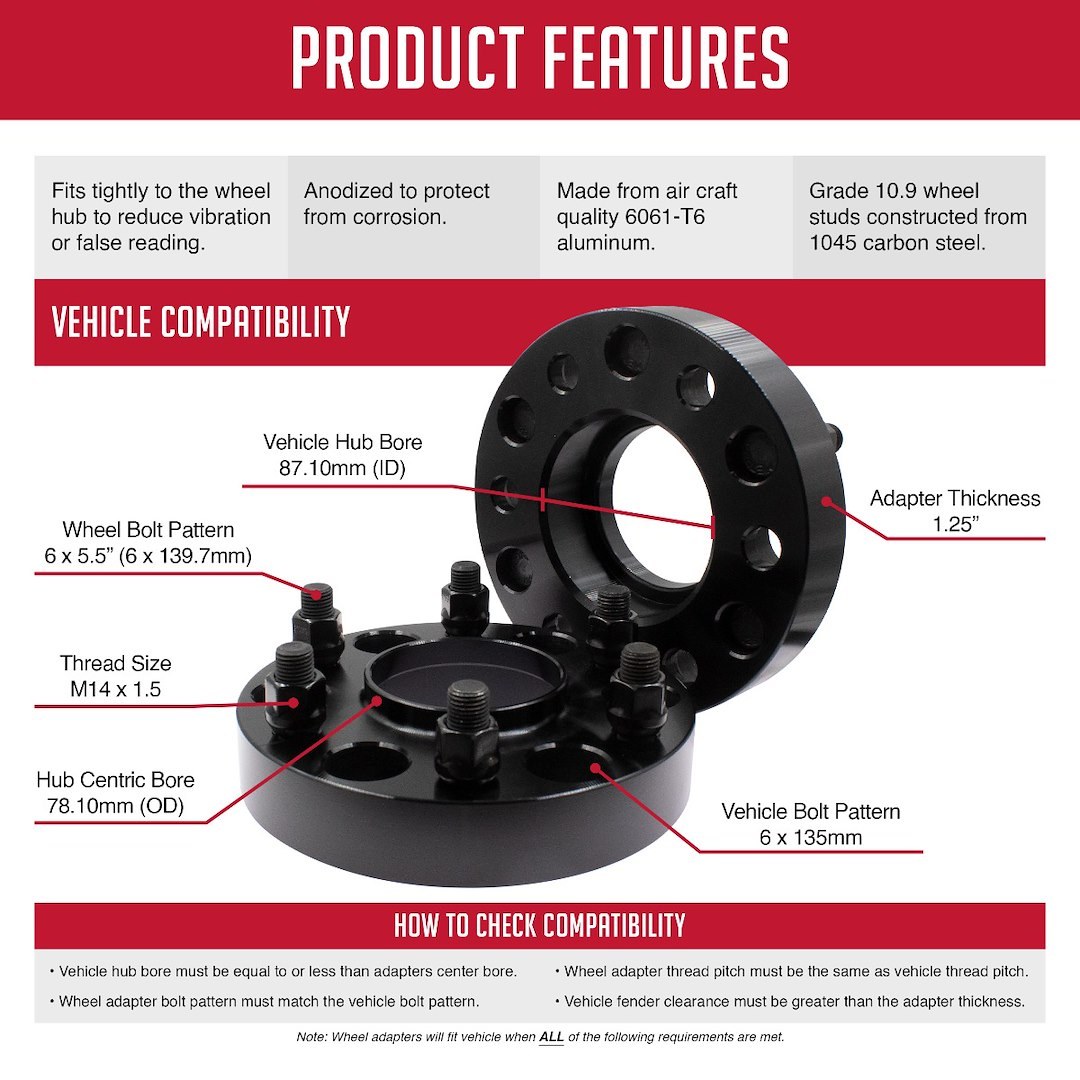

Attributes:
- Vehicle Bolt Circle (MM): 6×135
- Wheel Bolt Circle (MM): 6×139.7
- Stud Size: 14×1.5
- Hub Fitment: Hub Centric
- Center Bore: 87.10 Millimeter
- Hub Size: 78.10 Millimeter
- Thickness (IN): 1-1/4 Inch
- Vehicle Bolt Circle (IN): 6×5.31
- Wheel Bolt Circle (IN): 6×5.50
- Finish: Anodized
- Color: Black
- Material: Aluminum
- Lug Nut Seat Type: 60 Degree Conical Bulge
- Lug Nut Design: Acorn
- Quantity: Single
- Estimated Install Time (Hours): 0.25
Features & Benefits:
- Made From Air Craft Quality 6061-T6 Aluminum
- Ensures A Precise Fit To Your Vehicle Hub Eliminating Possible Vibration
- Anodized To Protect From Corrosion
- Grade 10.9 Wheel Studs Constructed From 1045 Carbon Steel

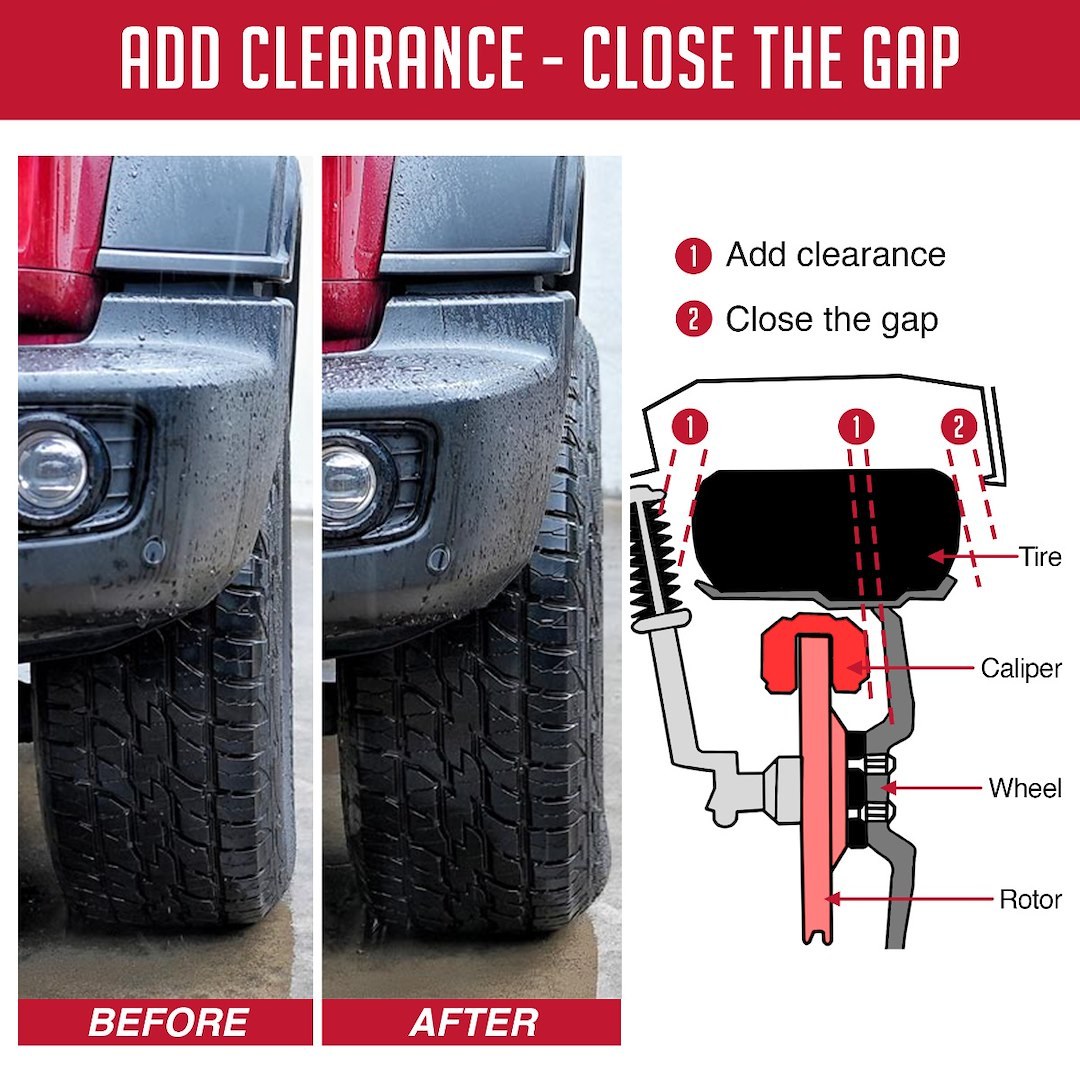

- Increase Tire Clearance, Fix Brake Caliper Clearance Issues
- Heat Treatment Process That Involves Various Solutions And Artificial Aging That Increases The Overall Strength Of The Material
- CNC Lathes And Milling Machines
- Improve Vehicle Handling: By Spacing The Wheels Apart, It Will Provide More Stability To The Vehicle And Corner Better
- Easy Bolt-On Installation: Simply Bolt The Wheel Adapter To Your Hub, Then Bolt Your Wheel To The Adapter
- Limited 1 Year Warranty
About Product:

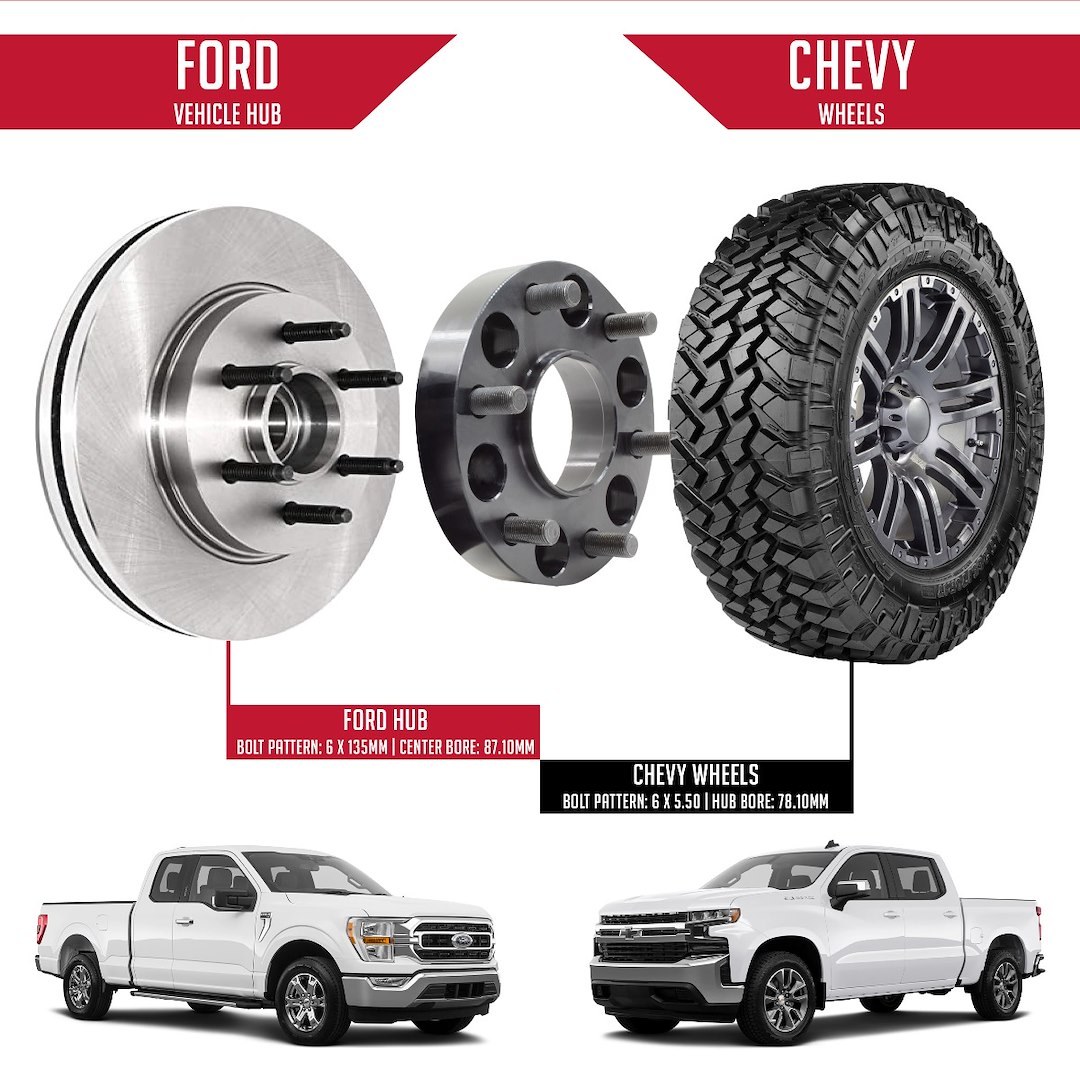

Widen your vehicle base and give your vehicle a more aggressive stance while improving handling and stability. Increase tire clearance, fix brake caliper clearance issues, allow installation of lift lowering kits and wider, larger, or high traction tires. Hub Centric Spacer provides a snug fit on the vehicle hub as well as the wheel which reduces vibrations and stress on lug nuts. This spacer is for a wheel hub diameter of 87.10 Millimeter only This spacer is specially designed to adapt Ford F150 Wheels to Chevy and GMC 1500 Vehicles. This spacer is hub centric to both Vehicle and Wheel. Our spacers are made from FORGED aircraft quality 6061-T6 aluminum alloy. Each spacer is anodized black which significantly enhances the hardness and corrosion resistance. Studs are SAE 10.9. CNC lathes and milling machines ensures a precise fit to your vehicle hub eliminating possible vibration.
Additional information
| Weight | 4.13 lbs |
|---|---|
| Dimensions | 6.9 × 6.9 × 2.85 in |
| Brand | REVOLUTION |
| Manufacturer Part Number | 6135-6550H-B |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 1,242 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
